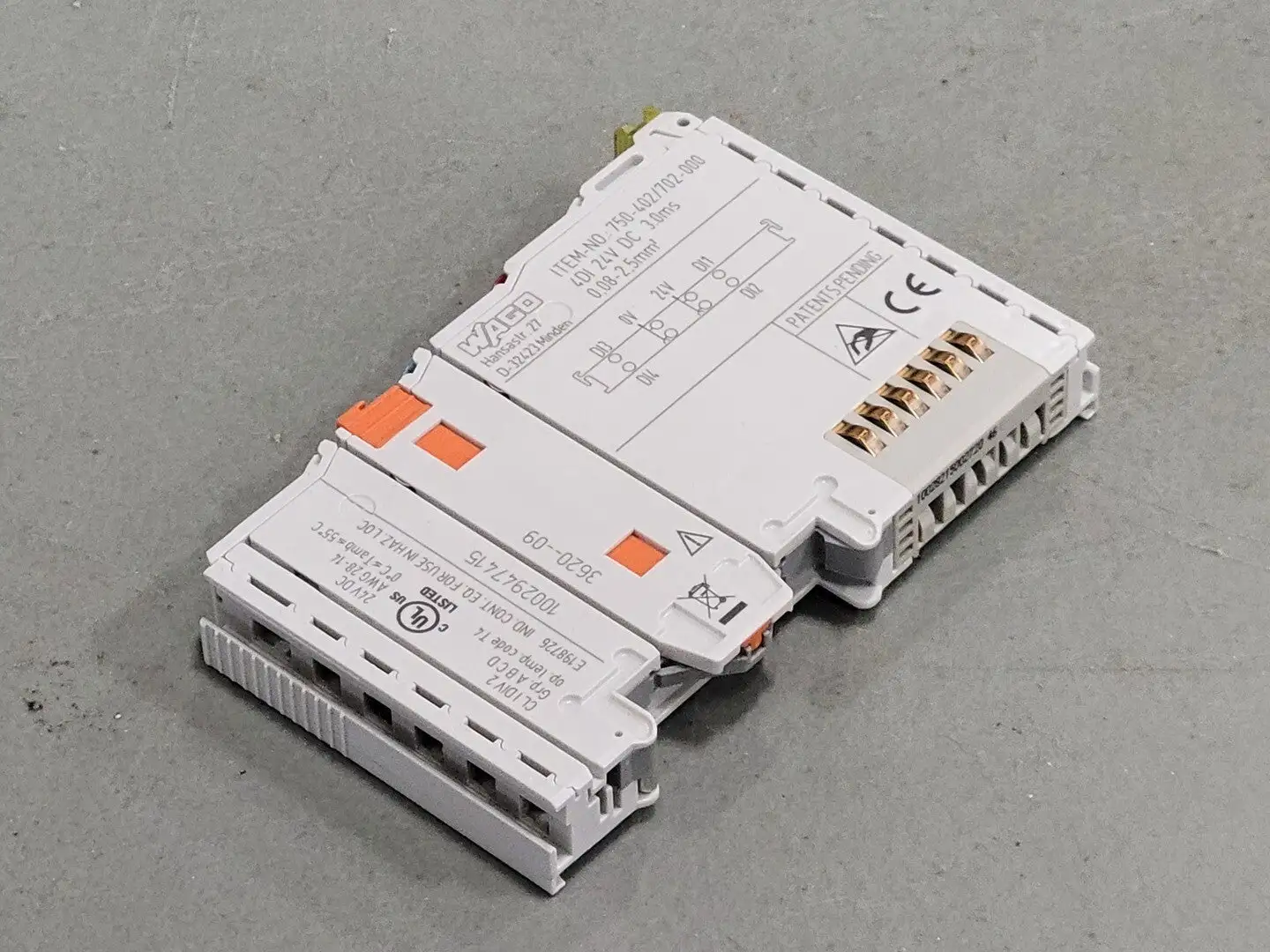

USED WAGO 750-402/702-000

Number of digital inputs: 4
Total number of channels (module): 4
Signal type: Digital
Signal type (voltage): 24 VDC
Sensor supply DC: 24 V
Sensor connection: 2 x (2-wire, 3-wire); A suitable field side connection module
Input characteristic: high-side switching
Input filter (digital): 3ms
Input current per channel for signal (1) typ.: 4.5mA
Voltage range for signal (0) : -3 +5 VDC
Voltage range for signal (1) : 15 30 VDC
Input data width (internal) max.: 4Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 7.5mA
Isolation: 500 V system/field
Indicators: LED (A-D) green: Status DI 1 DI 4
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
