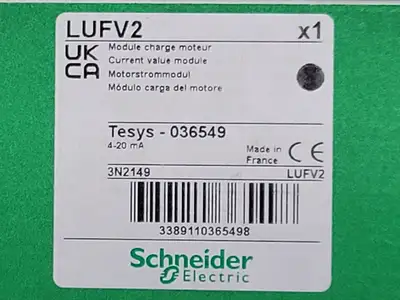

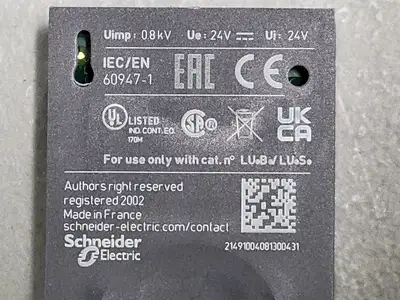

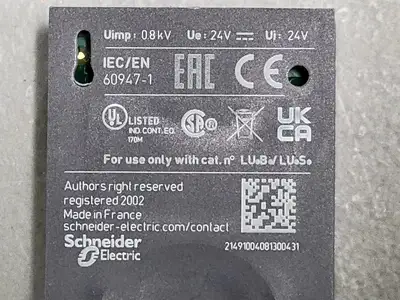

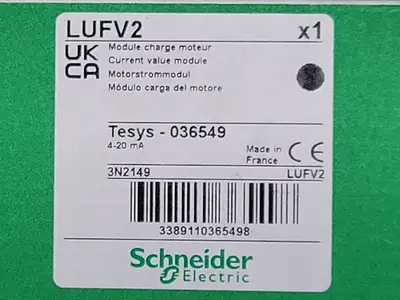

NEW SCHNEIDER ELECTRIC LUFV2

Main Details
Range: TeSys
Device short name: LUF
Product or Component Type: Function module
Product Compatibility: LUCC, LUCM, LUCB, LUCD
Complementary Details
Mounting Mode: Plug-in
Mounting Location: Front side
Main function available: Indication of motor load
[Us] rated supply voltage: 24 V DC
Analogue output current: 4..20 mA
Type of output signal: Value of I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD; Value of I average/Ir ratio within the range of 0 to 3 for LUCC
Load impedance ohmic: 100 Ohm typical; <= 500 Ohm
Measurement accuracy: +/- 10 % with multifunction control unit 1 % of Ir
+/- 6 % with advanced control unit
