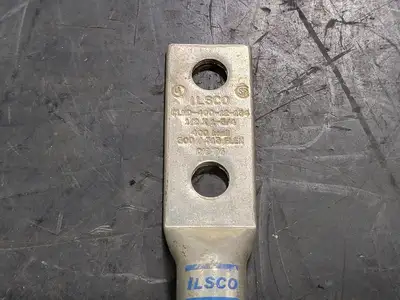

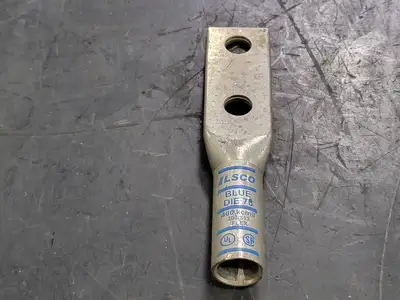

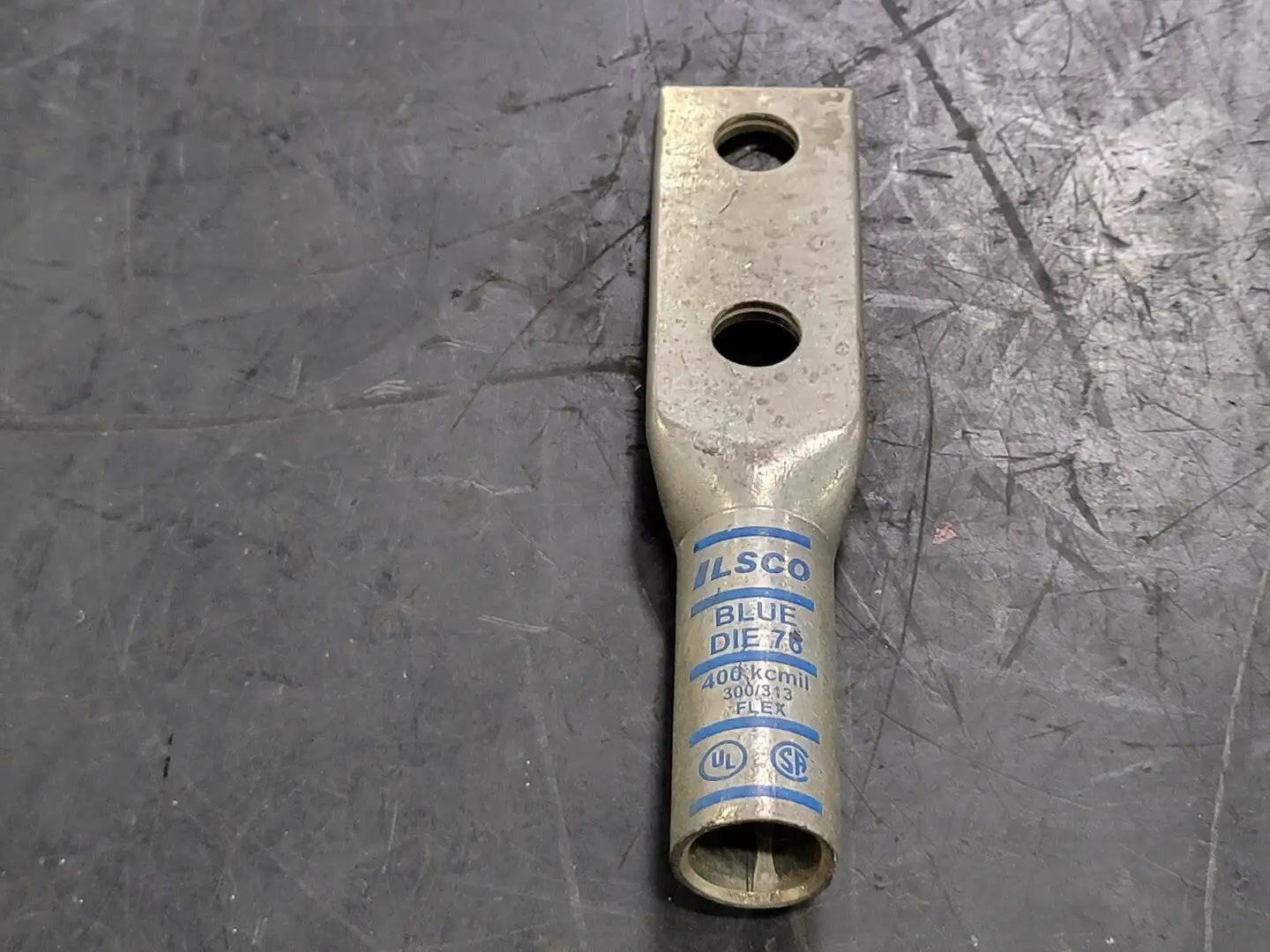

NEW ILSCO CLND-400-12-134

Lug Type: Compression
# of Holes: 2
Voltage Rating: 600 Volts
Barrel Type: Chamfered/Long
Color: Blue
Conductor Size: 4/0 AWG to 400 kcmil kcmil
Conductor Type: Flex Copper
Material: Tin Plated Copper
Overall Length: 5.792 in
Specifications: 1-3/4 in Mounting Hole Spacing, 2.187 in L Wire Strip
Temperature Rating: 90 deg C
Type: 2-Hole
Voltage Rating: 600 VAC to 35 kV VAC
Series: CLND
Mounting Hole Size: 0.562 in
Stud Size: 1/2 in
Barrel Size: 0.75 in ID x 0.937 in OD x 2.125 in L
Die Code: ILD-76
Tongue Size: 3 in L x 1.365 in W x 0.187 in THK
