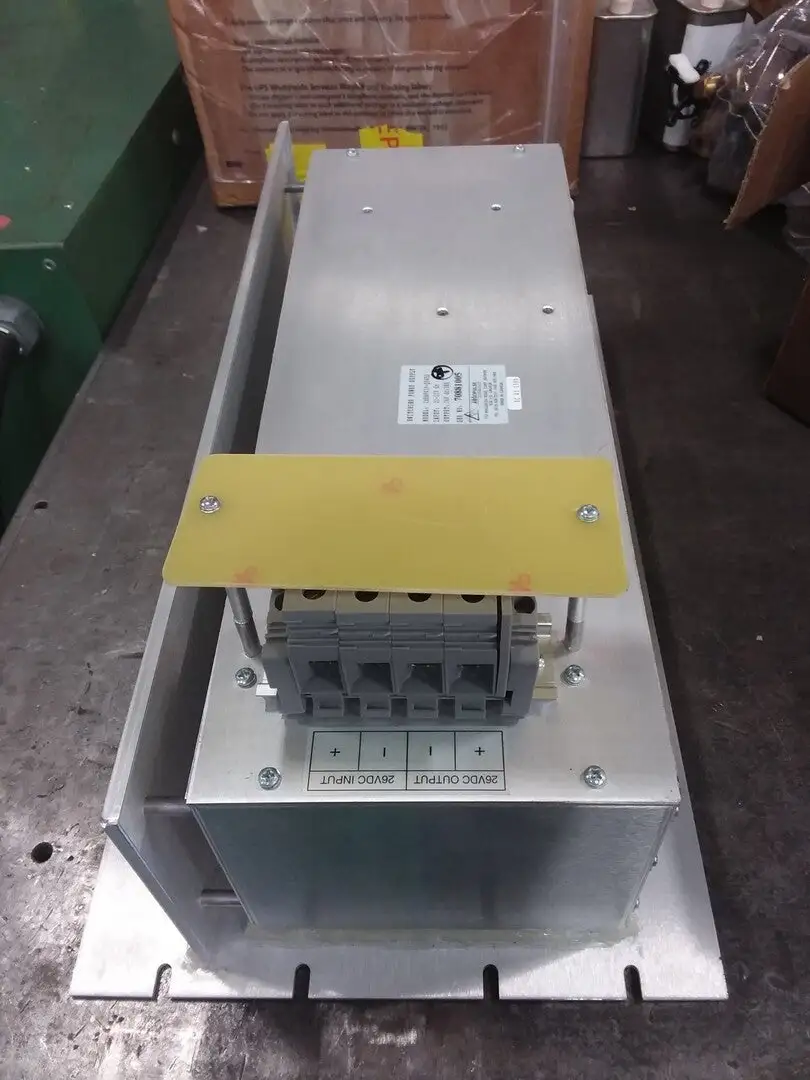

NEW ABSOPLUSE ELECTRONICS 2XBAP419-Q5452
Overview
Specifications
Type: Switched Mode
Output Capacity: 26 Volts
Input Voltage: 22-31 VDC
Input Protection: Reverse polarity protection by series diode; Inrush current limiting, thermal fuse
Input Isolation: 2250 VDC input to output; input to chassis; 500 VDC output to chassis
Output Voltage/Current: 26 VDC/ 38 A
Line Regulation: 0.5%
Load Regulation: +/-1.5% from no load to full load
Output Ripple/ Noise Voltage: High frequency ripple is better than 50 mVrms or 300 mVpp (20 MHz BW)
Temperature Drift: 0.03% per deg. C over temperature range
Operating Temperature Range: 0 deg. C to +40 deg. C for full specification
Output Protection: Rectangular current limiting with short circuit protection. Thermal shutdown with automatic recovery in case of continuous overload.
Output Overvoltage Protection: Double regulator loop
Efficiency: Minimum 80% at full load
Input/Output Connection: Screw-type terminal block
