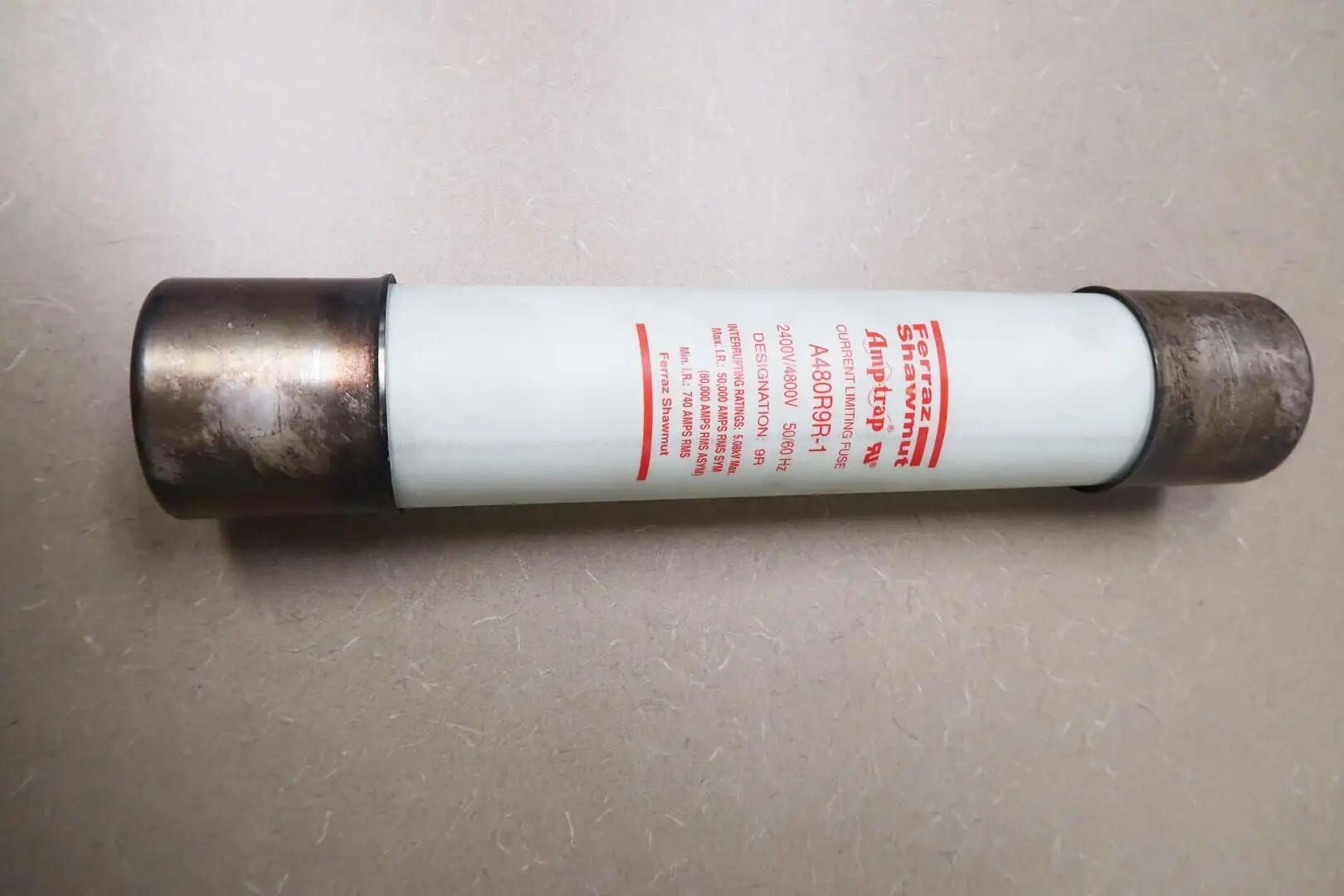

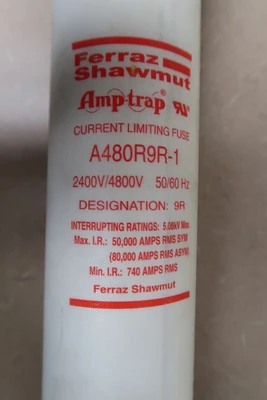

NEW FERRAZ SHAWMUT A480R9R-1

Amps: 200 amps
Voltage: 600 volts
Fuse Type: Medium Volt
Current Type: AC
Interrupting Rating: 50 kA
One Time Fuse: No
Terminal Type: Ferrule
Designated Size: 9R
Diameter: 3 inch
Type: R-Rated, Medium Voltage
Voltage Rating: 4.8 Kilovolt AC
Interrupting Rating: 65 Kiloamp (Symmetrical) at 5.5 Kilovolt AC, 740 Amp
Number of Barrels: 1
Mounting Type: Clip
Application: For Short Circuit Protection of Medium Voltage Motors and Motor Controllers
