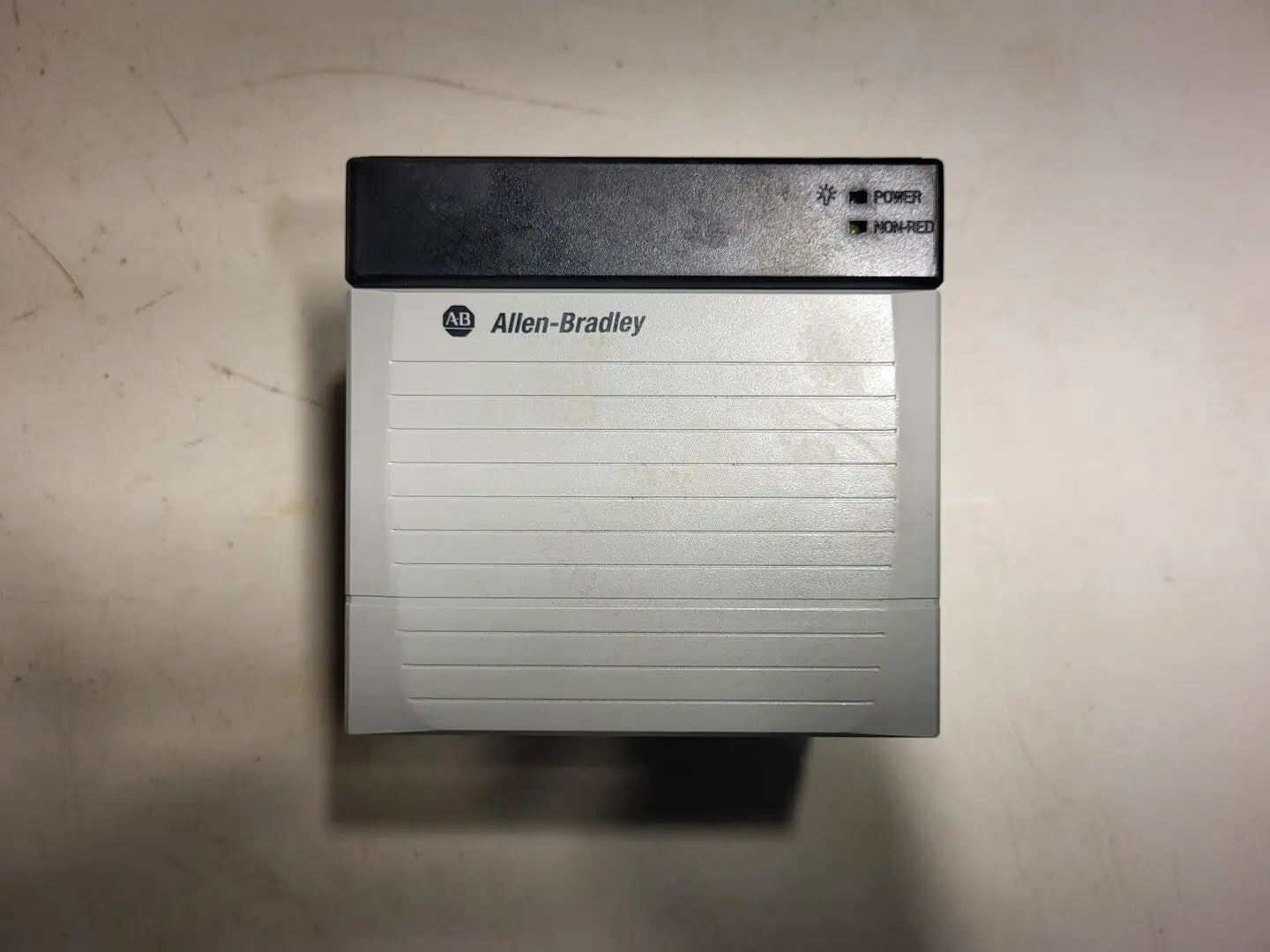

USED ALLEN-BRADLEY 1756-PA75R

Type: Uninterruptible AC
Output Capacity: 5.1VDC Volts
Voltage: 120/240 volts
Frequency: 50/60 Hz
Type of voltage (input voltage): AC
Power output: 75 W
Output voltage: 5.1 V
Input voltage, nom: 120/240V AC
Inrush current, max : 20 A
Input power: 120VA/115 W
Current capacity: 4 A @ 3.3V DC
Power output, max: 75 W @ 0...60 C (32...140 F)
Annunciator power: 240V AC 50/60 Hz, 240V DC, 50 mA, resistive only
Wire category: 3 - on annunciator ports, 1 - on power ports, 3 - on 1756-CPR2 connections
Hold-up time: 2 cycles @ 60 Hz, 2 cycles @ 50 Hz
Wire size Power: 2.5 mm (14 AWG) solid or stranded copper wire rated at 90 C (194 F), or greater, 1.2 mm (3/64 in.) insulation max, Annunciator: 0.252.5 mm(2214 AWG) solid or stranded copper wire rated at 90 C (194 °F), or greater, 1.2 mm (3/64 in.) insulat
Suitable for safety functions: No
Input voltage at AC 50 Hz: 85 V
Input voltage at AC 60 Hz: 85 V
Redundancy capable: No
Input frequency: 47 Hz
Pilot duty rating: Annunciator - not rated
