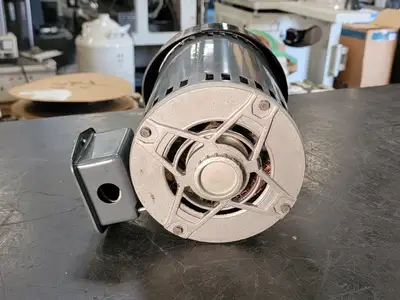

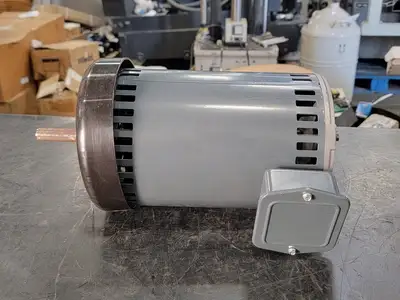

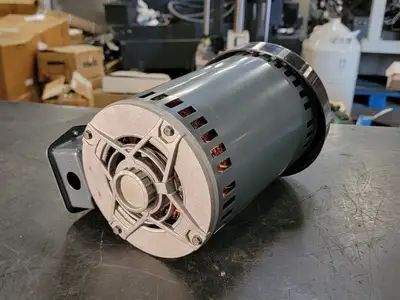

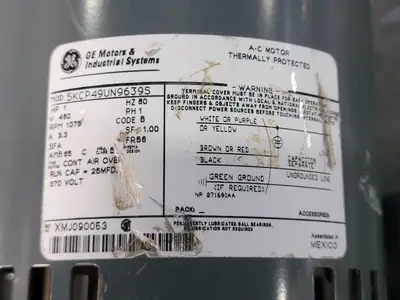

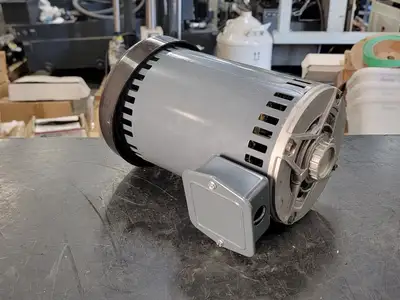

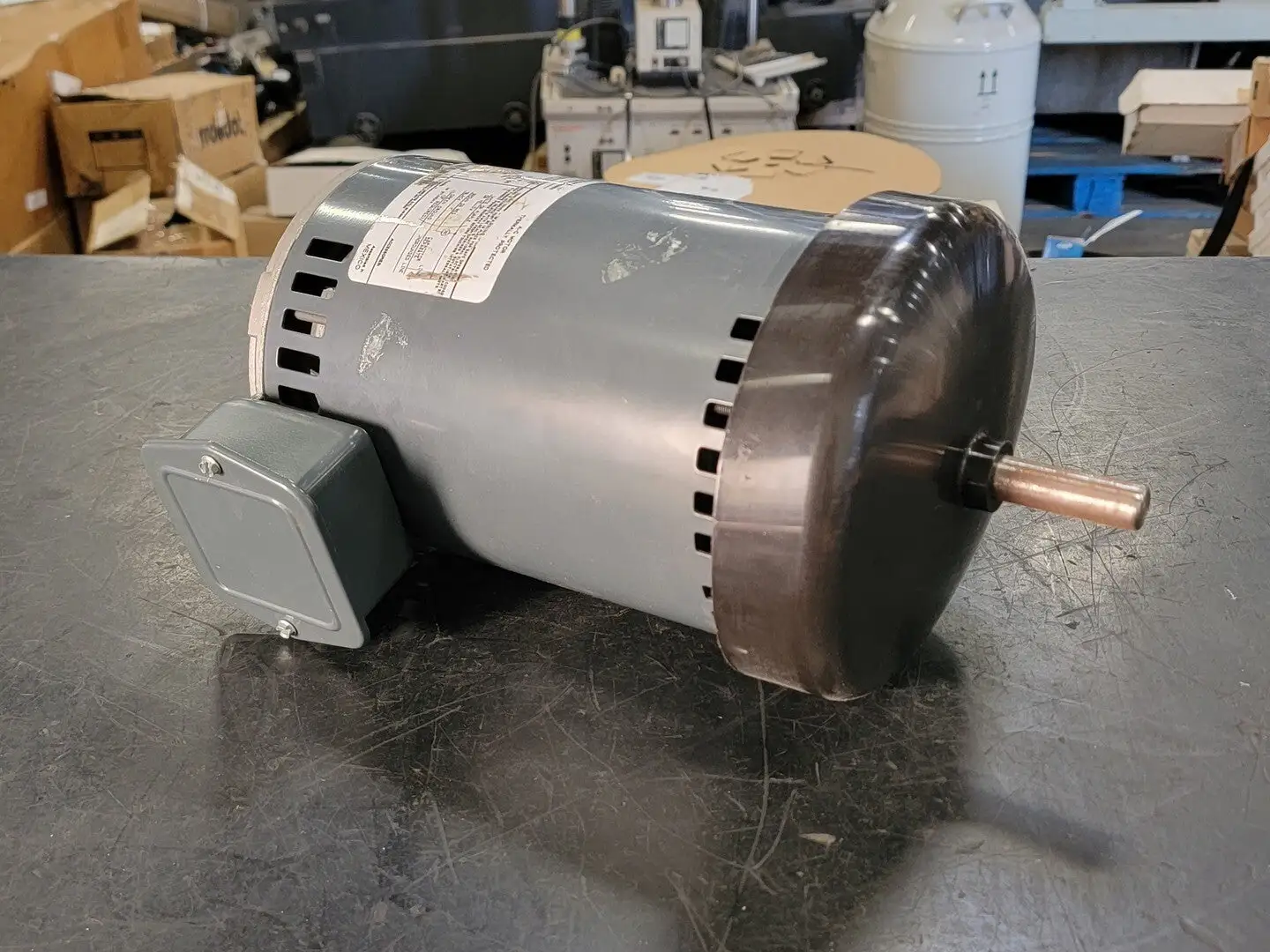

USED GENERAL ELECTRIC 5KCP49UN9639S

Current Type: AC
Horsepower: 1 hp
Alt. Horsepower: 1 hp
Voltage: 460 volts
Phase: Single-phase
RPM: 1075 rpm
Frame: 56
Duty: Continuous
Motor Type: AC Motor (Thermally Protected)
Horsepower: 1 HP
Voltage: 460 V
Frequency: 60 Hz
Phase: Single Phase
Speed: 1075 RPM
Full Load Amps (FLA): 3.3 A
Service Factor: 1.00
Frame Size: 56 (FR56)
Insulation Class: B
Enclosure: Open Drip Proof (ODP)
Capacitor Required: Yes
Run Capacitor: 25 MFD, 370 V
Ambient Temperature Rating: 40°C
Duty Rating: Continuous Air Over (Cont. Air Over)
Thermal Protection: Built-In
Wiring Colors:
Line: Black
Capacitor: Brown or Red
Common: White or Purple or Yellow
Ground: Green (if required)
