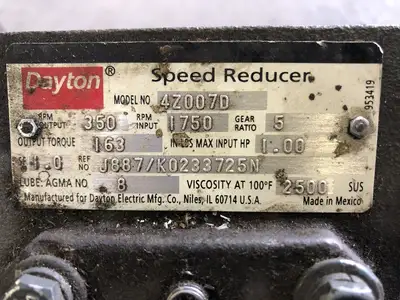

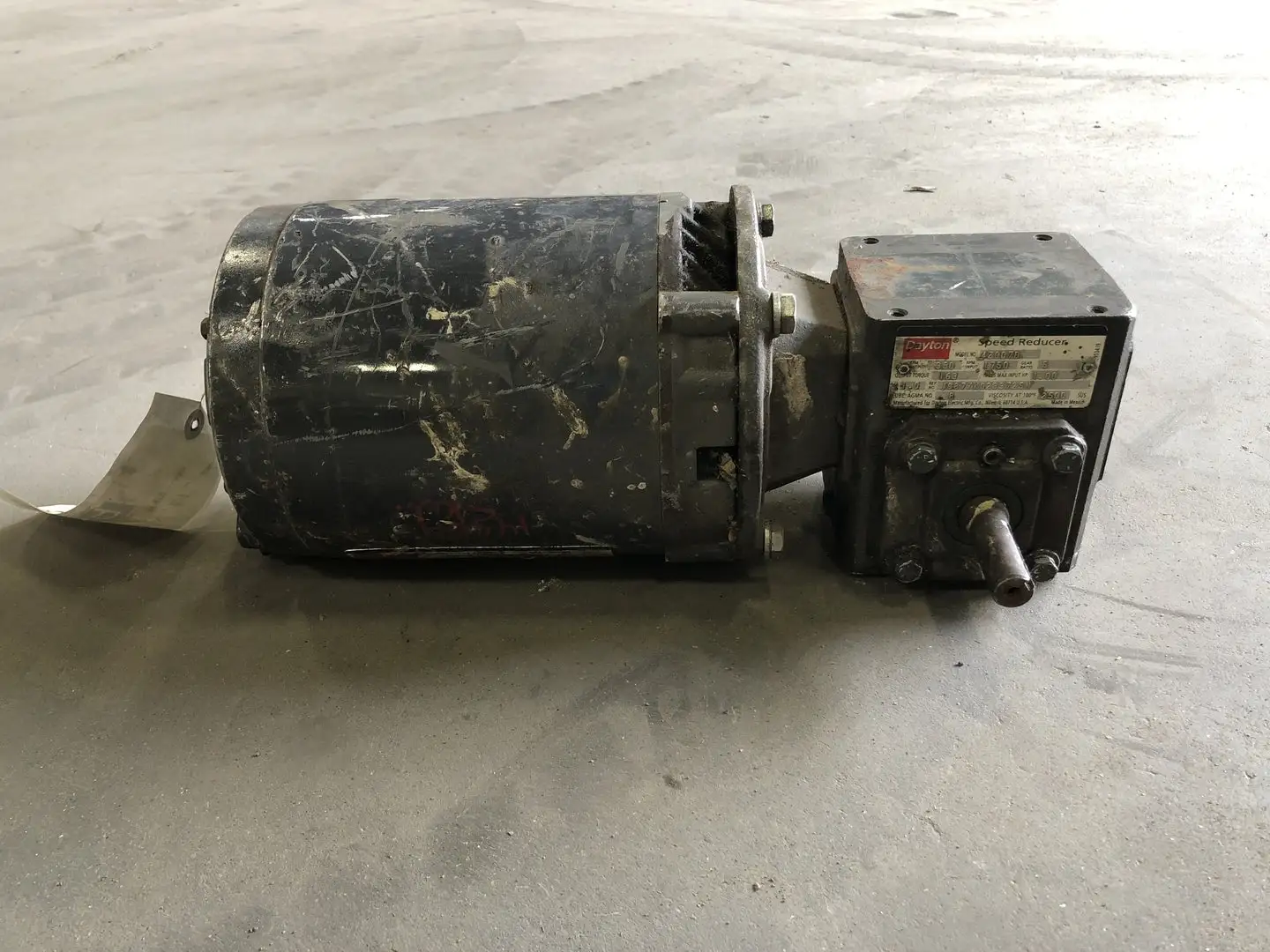

USED DAYTON 4Z007D
Overview
Specs
Amps: 3.6 amps
Voltage: 220/440 volts
Phase: 3-phase
Horsepower: 1 hp
Ratio: 5
RPM: 1750 rpm
Frame: 56C
Maximum Input Horsepower: 1 hp
Maximum Output Torque: 163 in-lb
Overhung Load Capacity: 150 lb
Input Connection Type: C-Face
Input Shaft Diameter: 5/8"
Output Shaft Type: Keyed
Output Shaft Diameter: 5/8"
Maximum Output Speed: 350 rpm
Maximum Input Speed: 1750 rpm
Worm Center Distance: 1.33 in
Gear Type: Worm
Gear Material: Hardened Steel; Manganese Bronze
Number of Stages: 1
Rotation: CW/CCW
Mounting Orientation: Any position except input motor shaft up
Housing Material: Cast Iron
Housing Material Finish: Powdered Epoxy Paint
Seal Type: Double lip

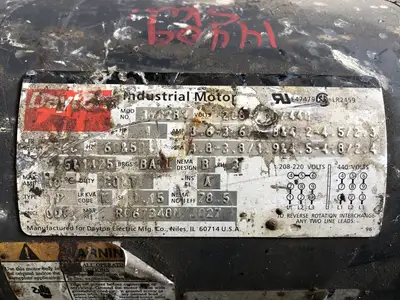

Motor Model: 3M028V
