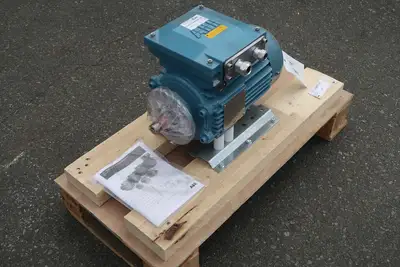

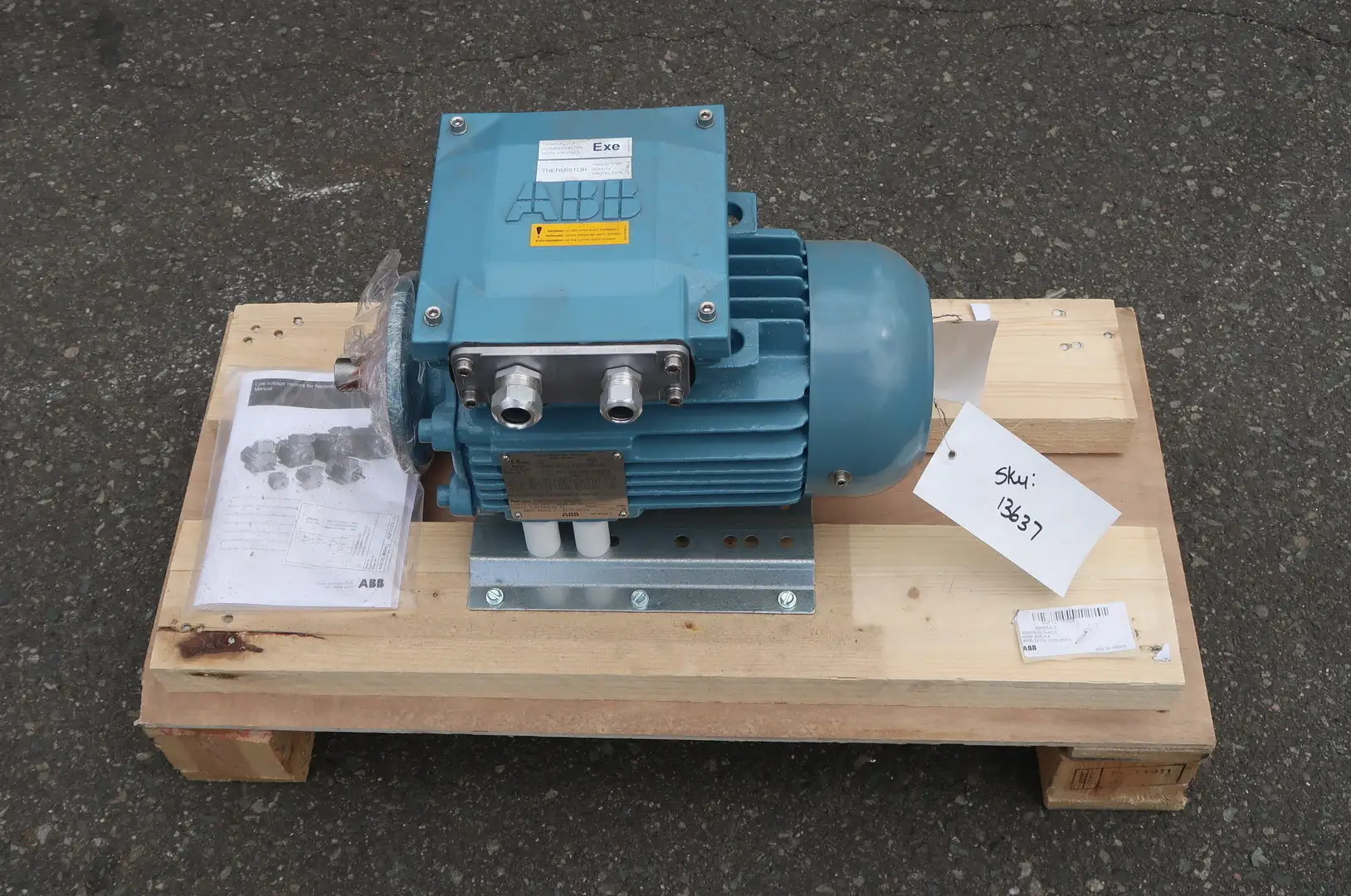

NEW ABB M3KP 90SLA 4

Current Type: AC
Horsepower: 1.5 hp
Voltage: 690 volts
Phase: 3-phase
RPM: 1431 rpm
Frame: 90
Alt. RPM: 1440 rpm
Duty: Continuous
Rated Voltage: 400 D/ 415 D/ 690Y
Motor Type: Explosion-proof, Squirrel Cage Motor
Frequency: 50 Hz
Power: 1.1 kW
Speed: 1431 / 1440 rpm
Current: 2.5 A (400/415V) / 1.45 A (690V)
Power Factor: 0.74-0.77
Duty Type: S1
Mounting Type: IMB14 / IM3601 (Foot and flange mounted)
Insulation Class: F
Protection Class: IP55
Explosion Classification: Ex de IIB T4 (Zone 1 gas areas)
