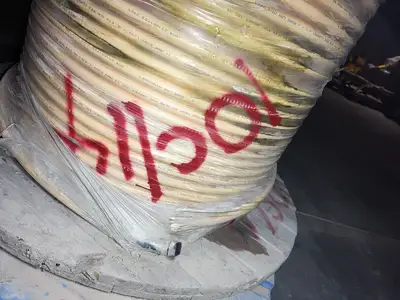

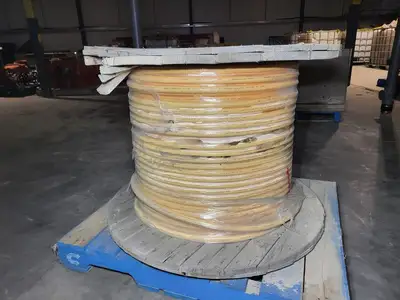

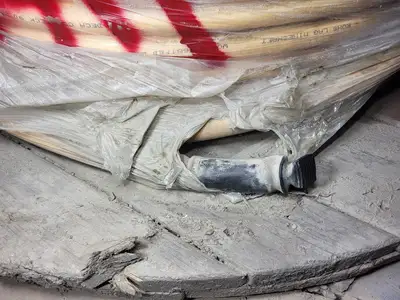

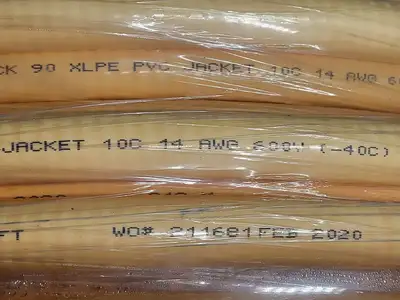

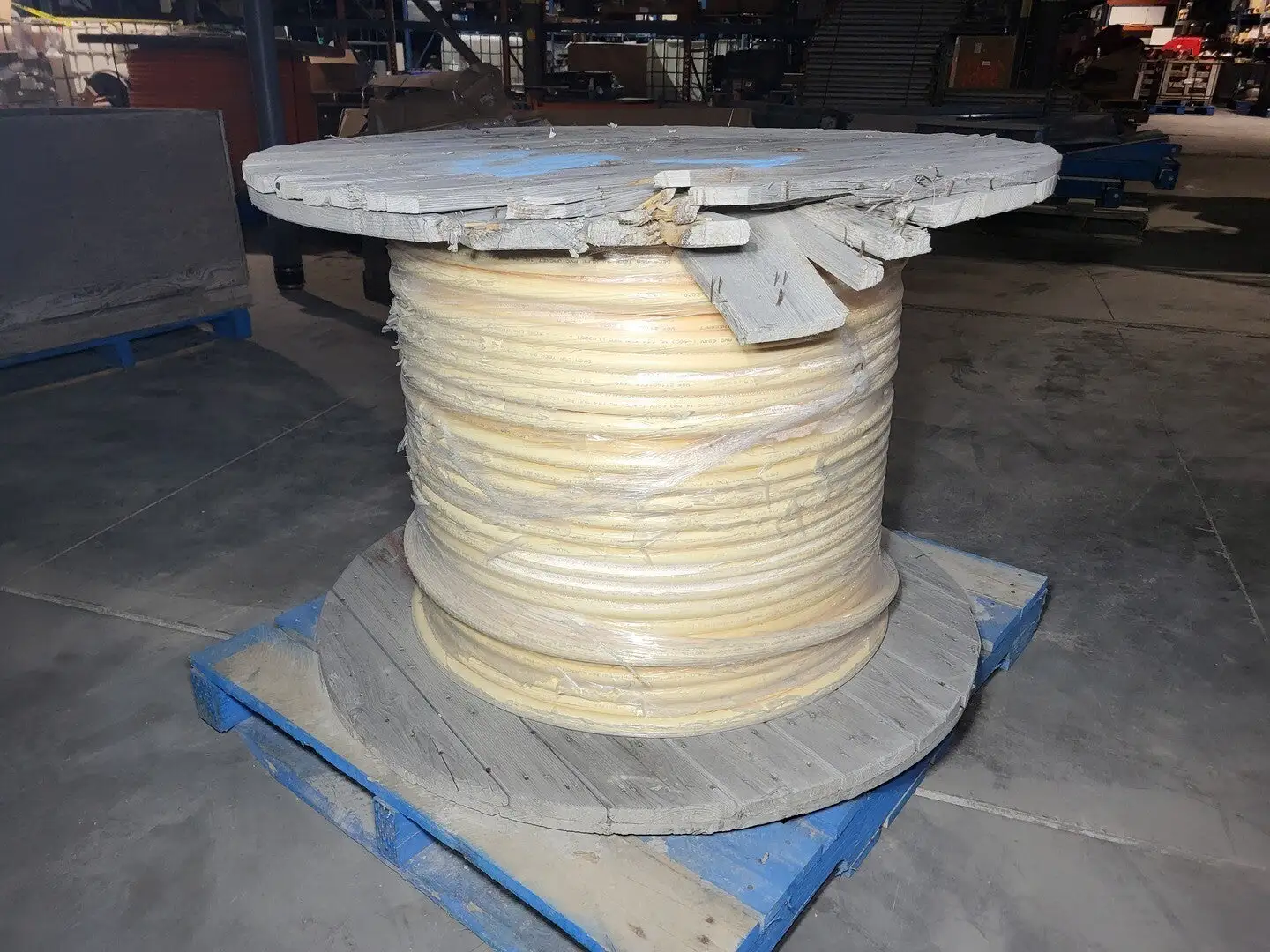

NEW DECA TECK 90

Length: 700 ft
Wire Type: Control Wire
Wire Size: 14 AWG
# of Conductors: 10
Voltage: 600 volts
Conductor: 7 strand bare or tinned Class B concentric copper
Insulation: Cross-linked polyethylene (XLPE). Thickness: 0.030 in (0.76 mm)
Ground Wire: 14 AWG 7 strand uninsulated bare copper
Inner Jacket: Low-temperature (-40°C), flame and sunlight resistant Polyvinyl Chloride (PVC), Low Acid Gas (LAG), Black
Armour: Aluminum Interlocked Armour (AIA)
Outer Jacket: Low-temperature (-40°C), flame and sunlight resistant Polyvinyl Chloride (PVC), Low Acid Gas (LAG), Black
Voltage: 600V
Specifications:
CSA C22.2 No. 131 & CSA C22.2 No. 174
CSA FT4 (Vertical Tray Flame Test)
