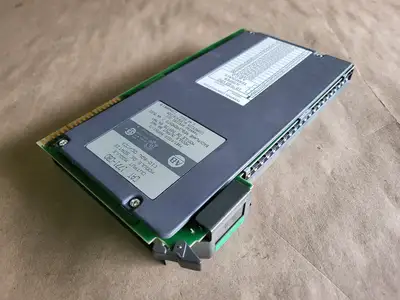

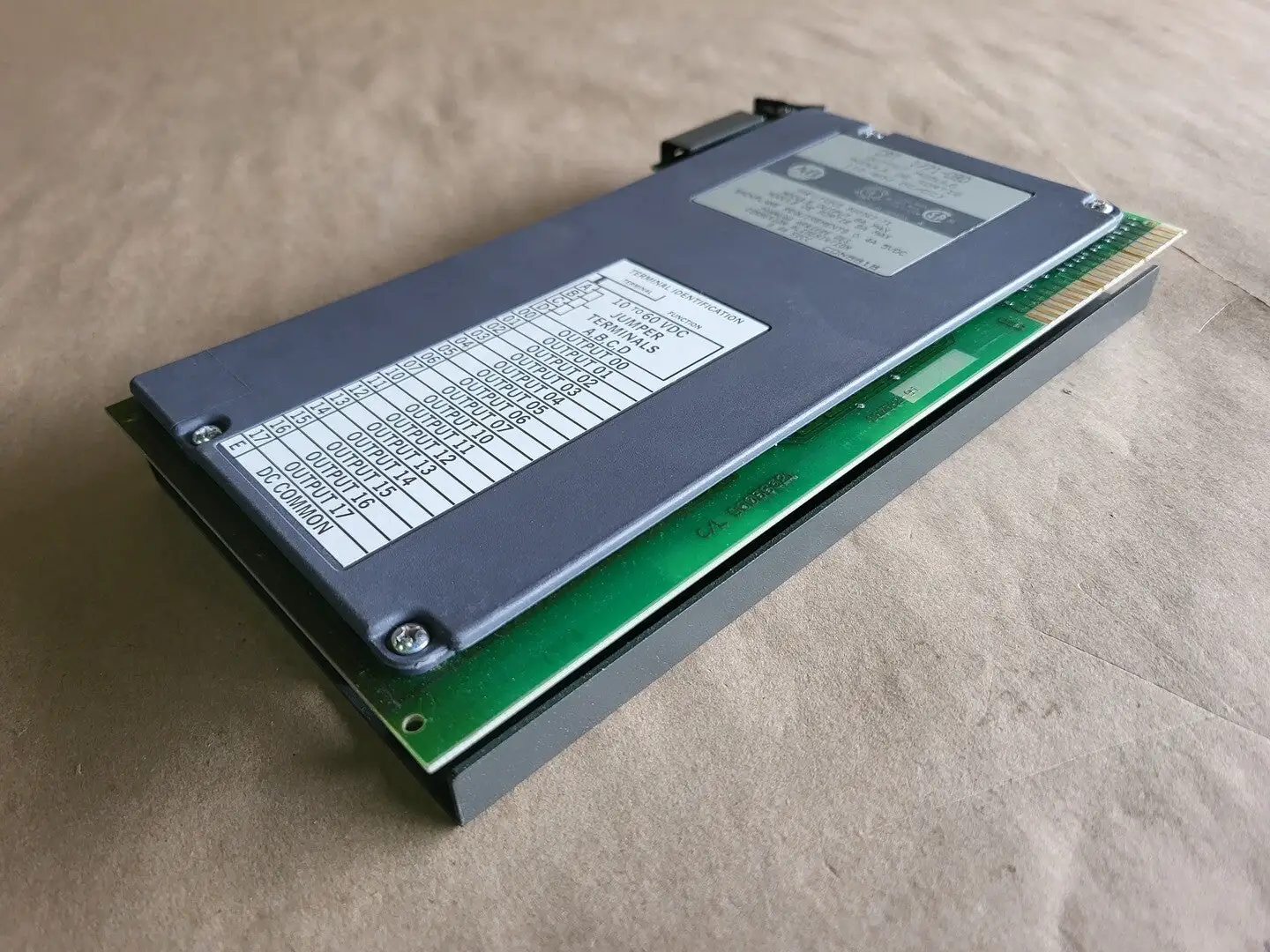

NEW ALLEN-BRADLEY 1771-OBD

Wiring Arm Screw Torque: 7-9 inch-pounds
Keying: Between 10 and 12; Between 22 and 24
Compatible Chassis: 1771 I/O Chassis
Thermal Dissipation: 53.3 BTU/hr
Power Dissipation: 15.6 Watts
Minimum Load Current: 2.5 mA
Maximum Surge Current: 4 A per output for 10 ms, repeatable every 2 s; 25 A per output for 10 ms, repeatable every 2 s
Output Current Rating per Channel: 2 A per output resistive, not to exceed 8 A per module; 2 A per output pilot duty
Nominal Output Voltage: 48 VDC
Number of Outputs: 16
Module Type: Discrete Output Module
Voltage Category: 10 to 60 Volts DC, Source
DC Operating Voltage: 10 to 60 VDC
Backplane Current: 400 Milliamps
Max Continuous Current Per Output: 2 Amps
Max Continuous Current Per Module: 8 Amps
Wiring Arm: 1771-WH or 1771-WHF
Coating: Conformal Coat
Data Format: BDC or Natural Binary
Typical AC Signal Delay (Off): 45 (+/-15) Milliseconds
Typical DC Signal Delay (Off): 50 Milliseconds
Mounting: Rack Mount
