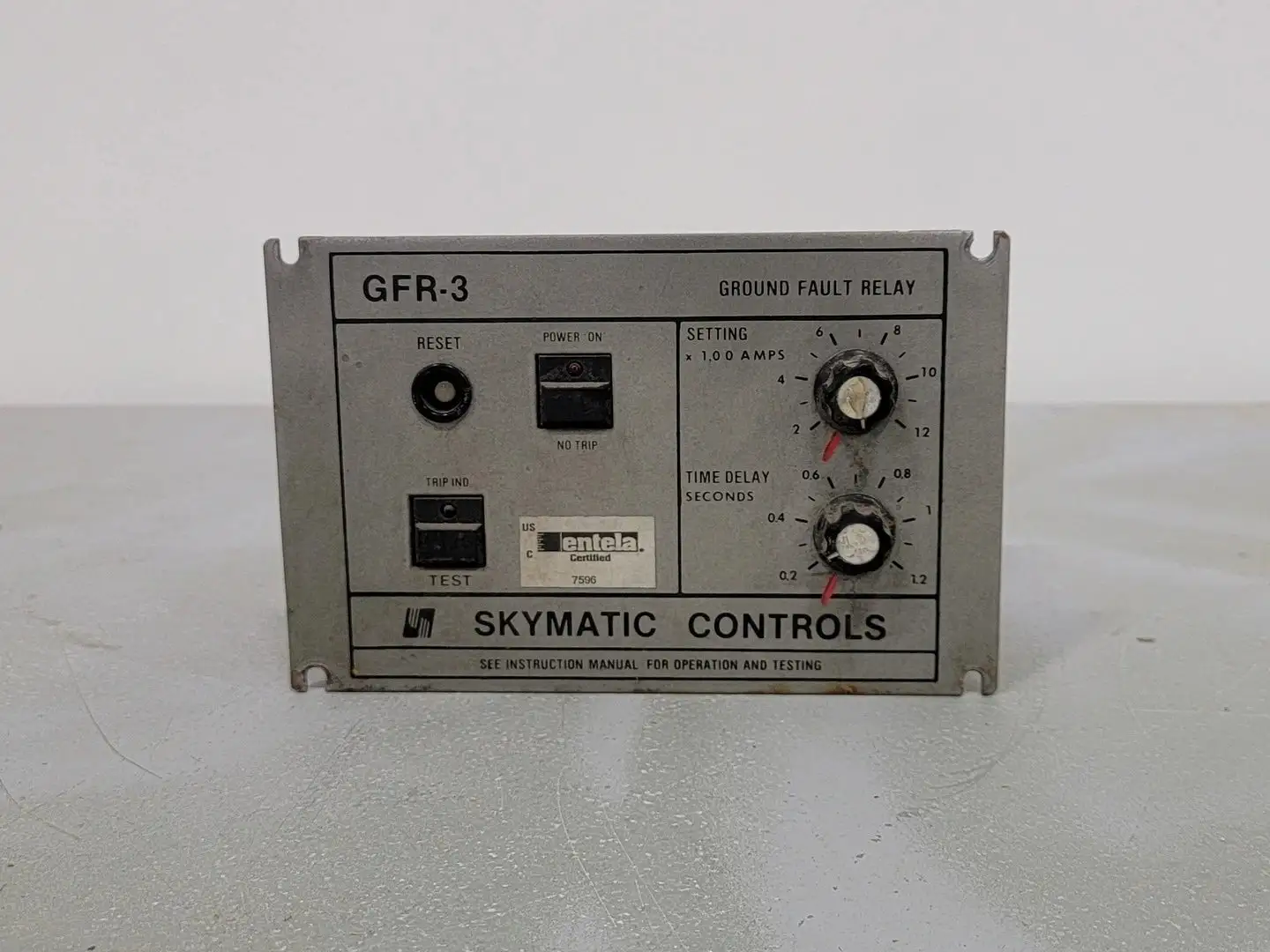

USED SKYMATIC CONTROLS GFGR-3

Amps: 10 amps
Voltage: 120 volts
Mounting Style: Plug-In
Power Supply: 115VAC, + 10%, -20%, 50/60Hz, 9Vamax
Tripping Range: 100-1200A
Repeatability: Better than 1%.
Temperature Range:  -10°C thru + 55°C
Output Contacts: DPDT, 10A @ 115VAC; 2 - N.O. in series - 1A @ 250VDC
Operating Time: 0.1 thru 1.2 sec., adjustable
Duty Cycle: Continuous
Mounting Position: Semi-flush panel mount
Terminal Wire Size: No. 22AWG to No. 12AWG
