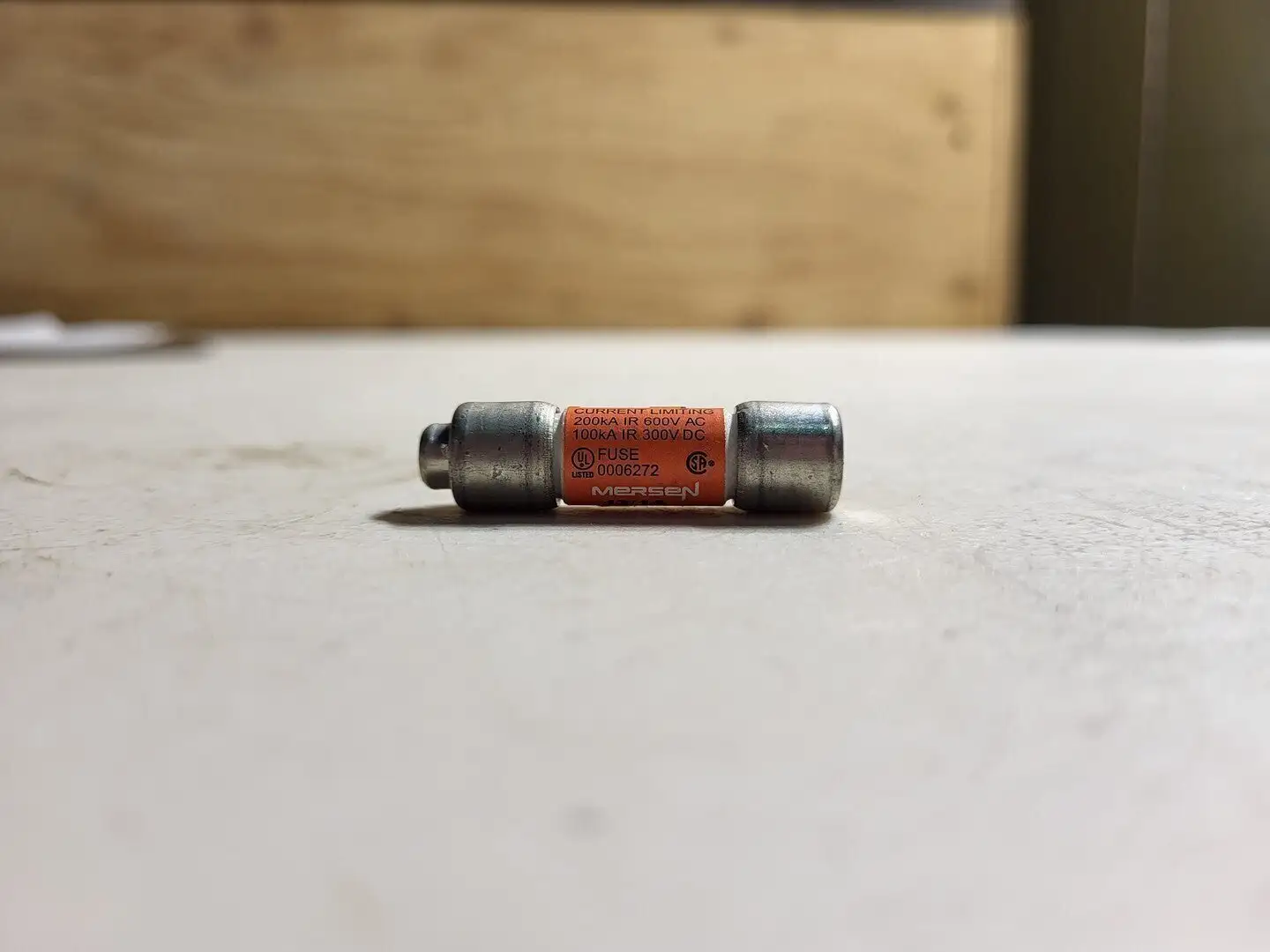

NEW MERSEN ATQR10

Amps: 10 amps
Voltage: 600 volts
Phase: Single-phase
Current Type: AC
Class: CC
Interrupting Rating: 200kA I.R AC/100kA I.R DC
One Time Fuse: Yes
Description
Fuse, Time-Delay, Class CC, 200kA I.R AC/100kA I.R DC, 600VAC/300VDC, 10A
Application: Control Transformers Solenoids Inductive Loads Lighting Heaters General-purpose Loads
Body Material: Glass
Class: Class CC
Contact Material: Tin-plated Copper
Current Rating: 10 A
Primary Type: Single Use Fuses
Series: ATQR Series
Speed: Time Lag
Termination: Cartridge
Type: Cylindrical Fuses
Voltage Rating: 600 VAC ; 300 VDC
