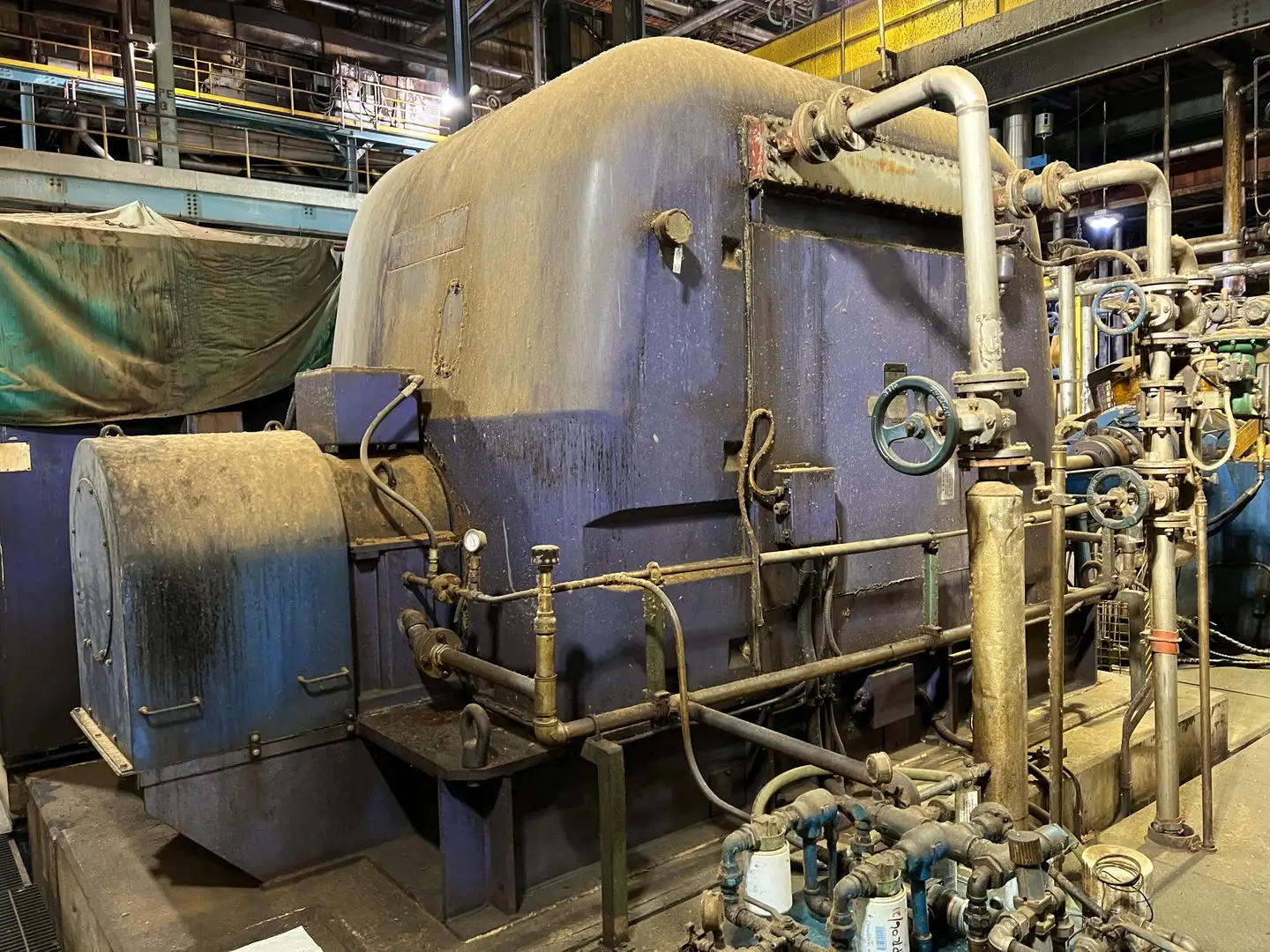

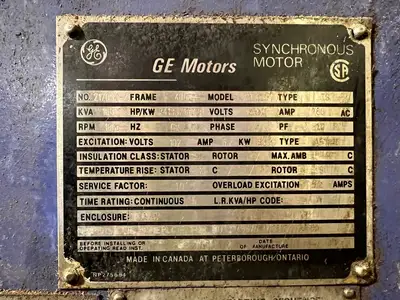

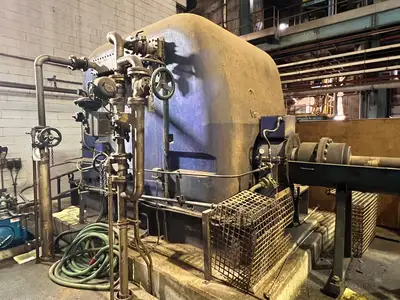

USED 1995 GENERAL ELECTRIC 217093

Current Type: AC
Horsepower: 24135 hp
Voltage: 13800 volts
Phase: 3-phase
RPM: 1800 rpm
Frame: 4000
Duty: Continuous
kVA: 18310
Amps: 766 A
Enclosure: TEWAC
Insulation Class (Stator & Rotor): F
Temperature Rise (Stator & Rotor): 90 C
Max. Ambient Temp.: 40 C
Overload Excitation: 5.2 A

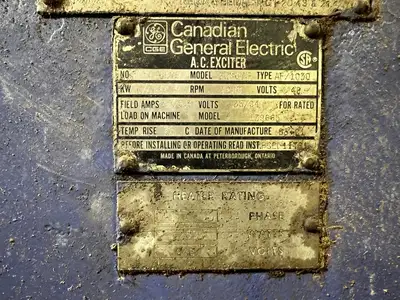

Motor Exciter 1
Type: AF1040
Power: 53.3 kW
Volts: 102 V
Amps: 5.2 A
Motor Exciter 2
Type: AF/1030
Power: 46 kW
Volts: 46 V
Field Amps: 4.8/5.3 A
Heater Ratings
Power: 1250 Watts
Volts: 240 V
Phase: 1
