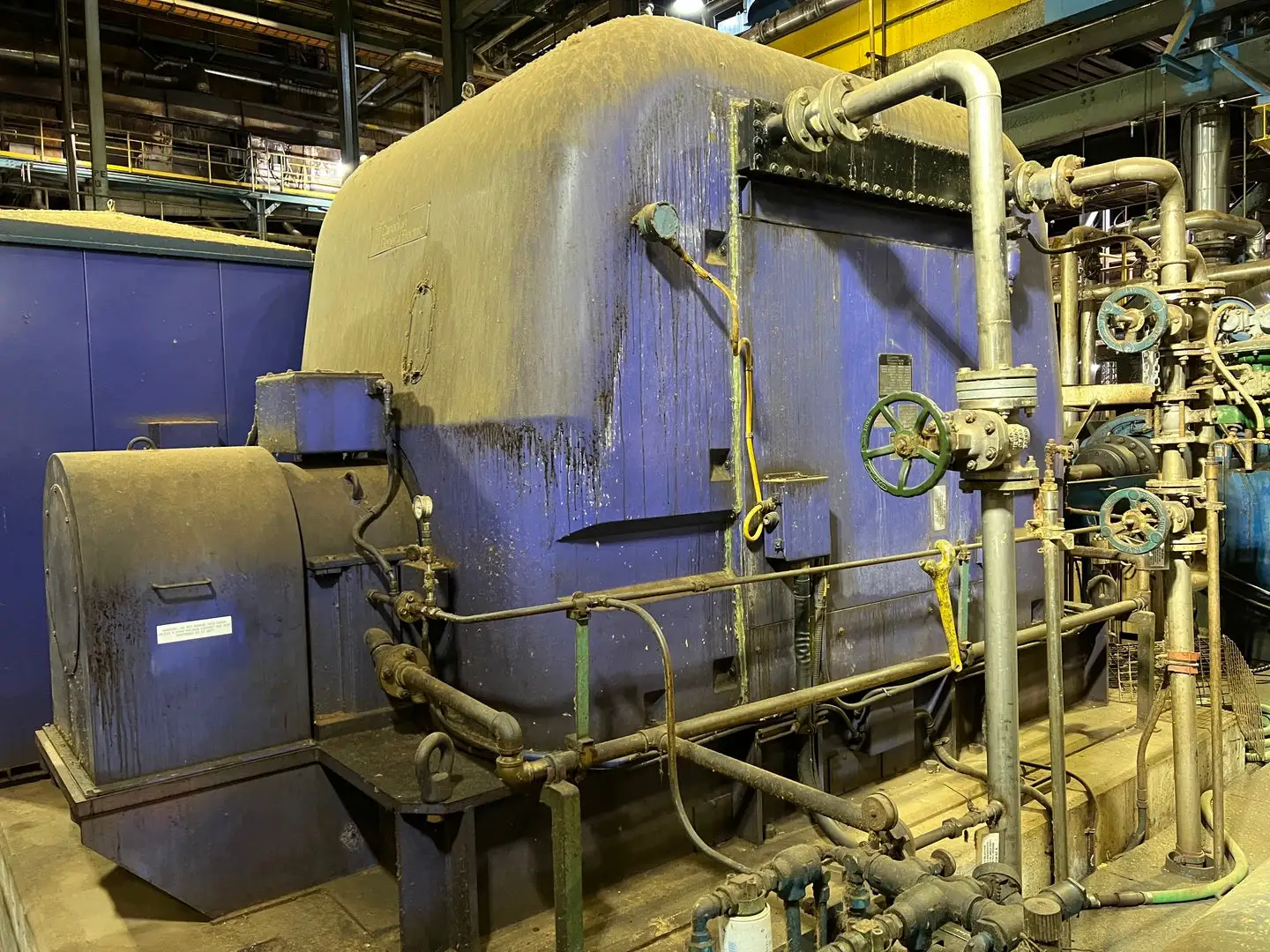

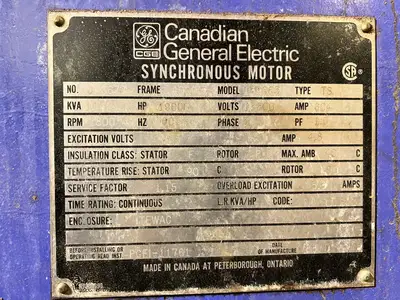

USED 1988 GENERAL ELECTRIC 139665

Current Type: AC
Horsepower: 19000 hp
Voltage: 13800 volts
Phase: 3-phase
RPM: 1800 rpm
Frame: 4000
Duty: Continuous
Operating Manual, Technical Data, and Drawings
kVA: 14425
Amps: 604 A
Enclosure: TEWAC
Excitation Volts / Amps: 85 V / 4.8 A
Insulation Class (Stator & Rotor): F
Temperature Rise (Stator & Rotor): 90 C
Max. Ambient Temp.: 40 C
Overload Excitation: 5.3 A

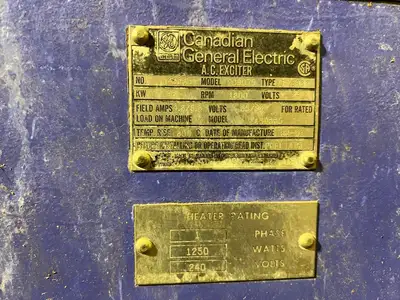

Motor Exciter
Type: AF/1030
Power: 46 kW
Volts: 46 V
Field Amps: 4.8/5.3 A
Heater Ratings
Power: 1250 Watts
Volts: 240 V
Phase: 1
Spare Bearing for motor: Sku: 129916
