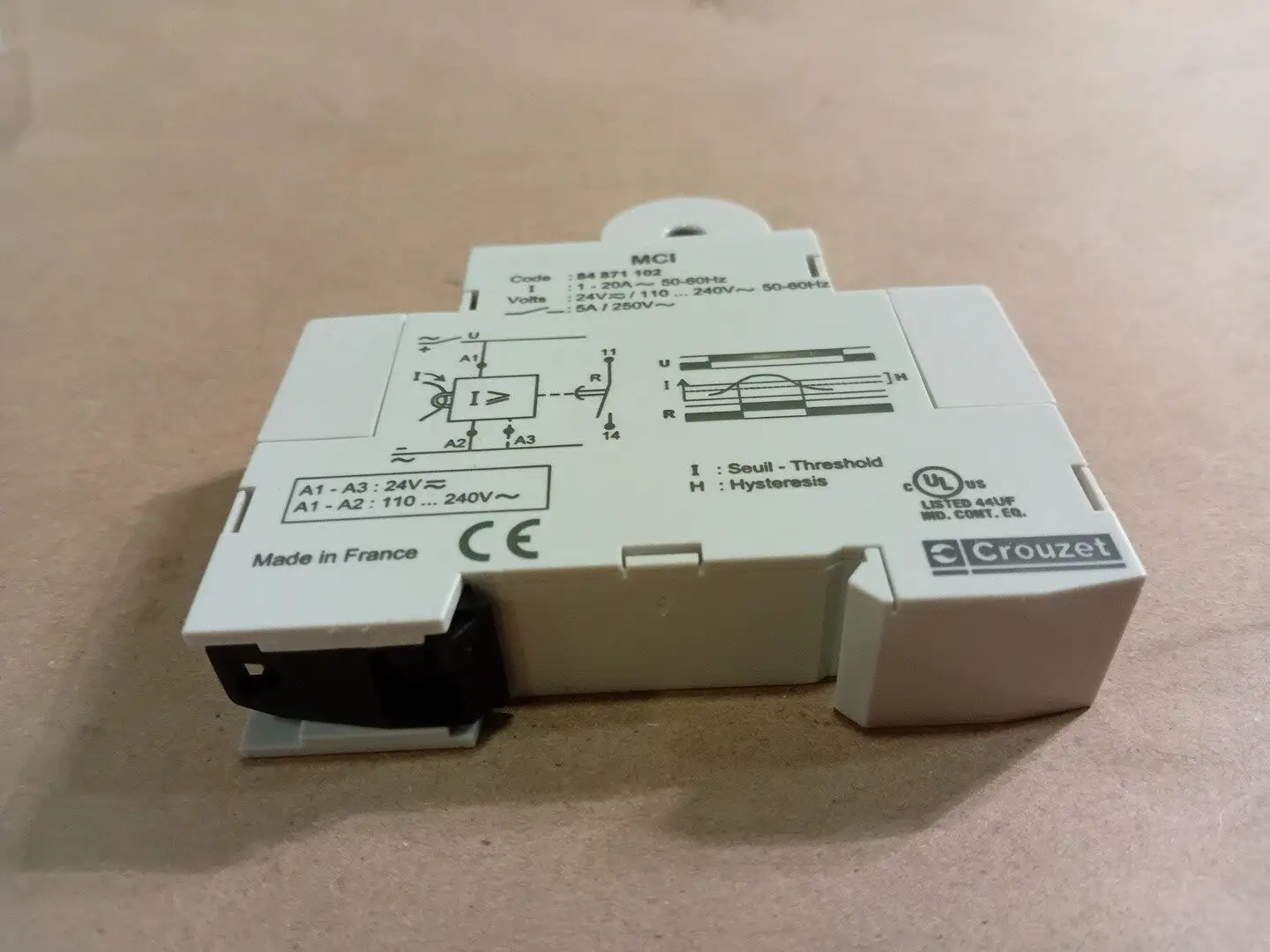

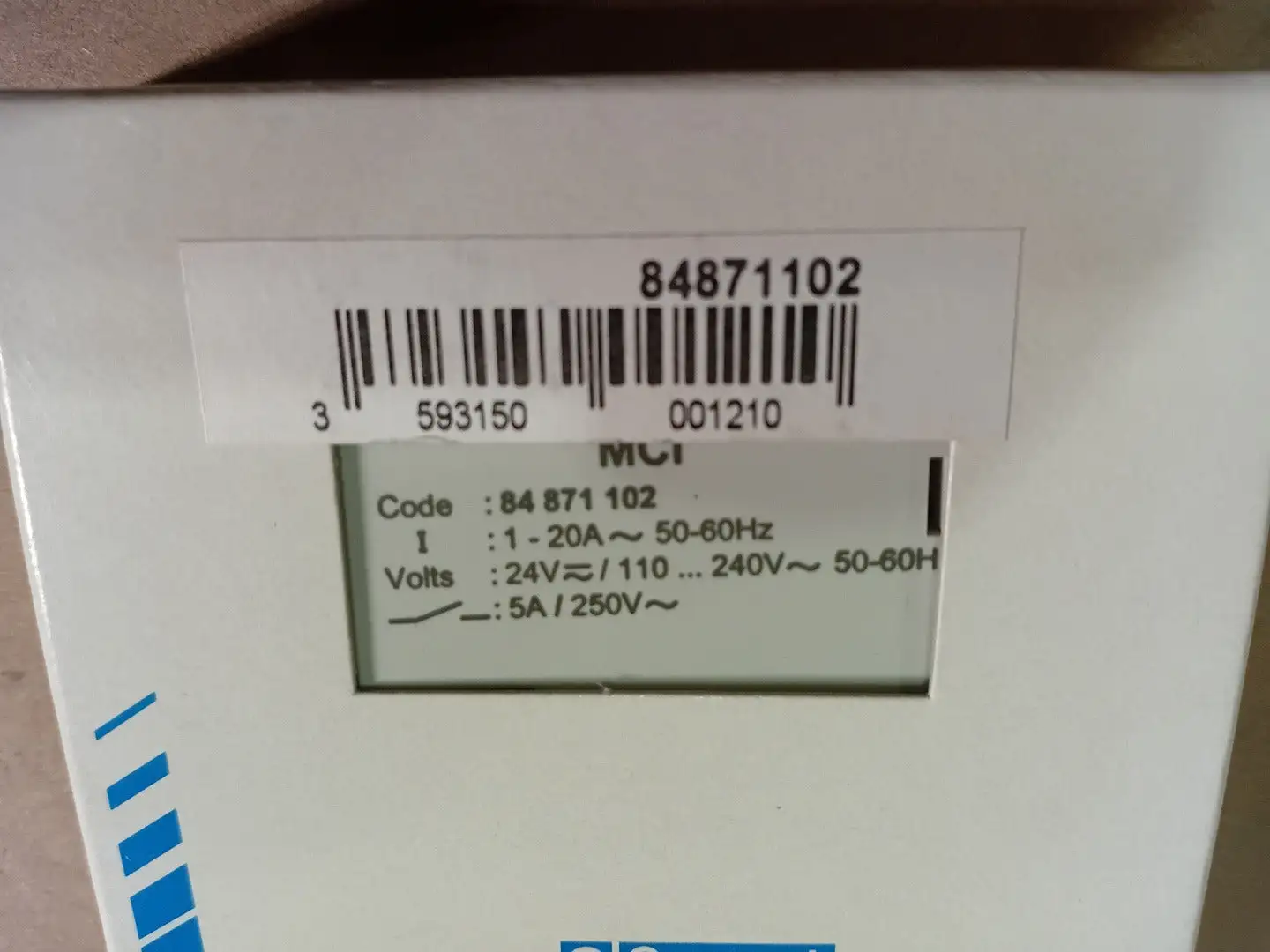

NEW CROUZET 84871102

Amps: 1-20 amps
Input power: 24 VAC/VDC, 110 to 240 VAC, 50/60 Hz
Input power operating range: 24 VAC/VDC +-15% 90 to 260 VAC
Maximum power consumption: 10 VA
Hysteresis: Fixed at -15% Threshold
Display accuracy of preset threshold: +-10% of full scale
Repetition accuracy with constant parameters: +-.5%
Temperature drift: 0.08%
Voltage drift: 0.01%/degree C
Power up delay: 150 ms max.
Delay on threshold overrun T1: 400 ms
Delay on downward crossing on threshold T2: 150 ms
Output relay: SPST NO
Maximum output rating: 5 Amp
Operating relay: +14 to +140F (-10C to 60C)
Storage temperature: -22 to +150F (-30C to 70C)
Weight: 3 oz. (85g)
