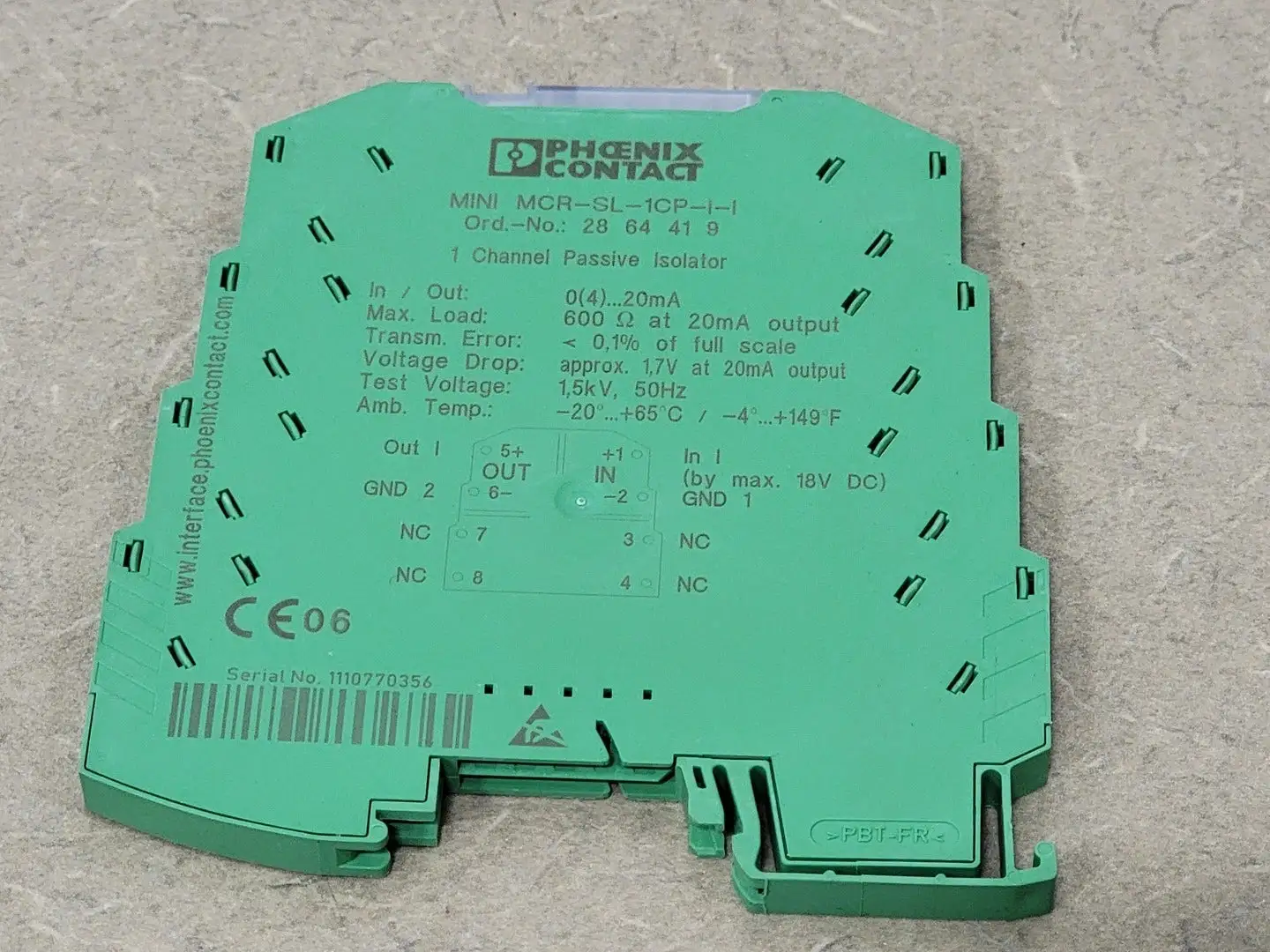

USED PHOENIX CONTACT MINI MCR-SL-1CP-I-I

INPUT
Description of the input: Current input
Number of inputs: 1
Configurable/programmable: no
Max. voltage input signal: 18 V
Current input signal: 0 mA ... 20 mA / 4 mA ... 20 mA
Max. current input signal: 40 mA
Response current approx.: 190 microA
Input voltage limitation: < 2 V (20 mA)
Voltage dissipation: 1.9 V (I = 20 mA)
OUTPUT
Output description: Current output
Number of outputs: 1
Current output signal: 0 mA ... 20 mA / 4 mA ... 20 mA
Configurable/programmable: no
Ripple: < 10 mVrms (at 600 ohms)
Load/output load current output: < 600 ohms (at I = 20 mA output signal)
