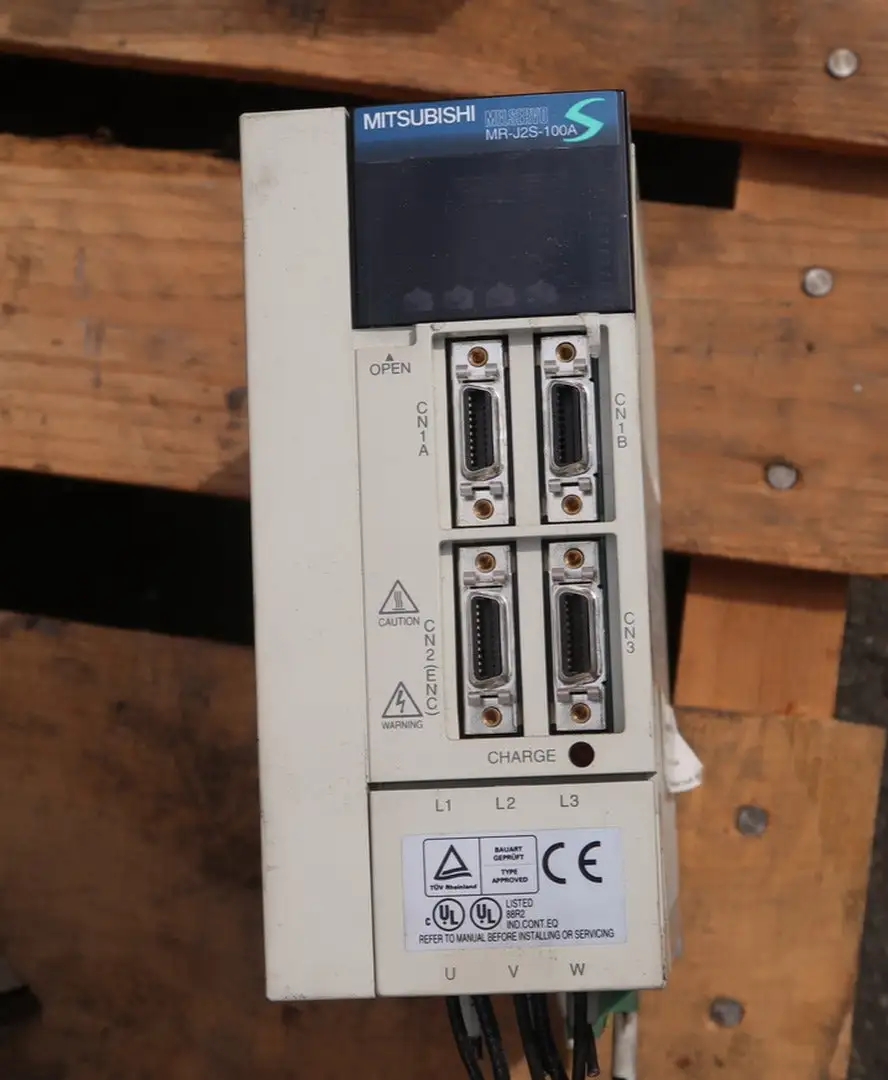

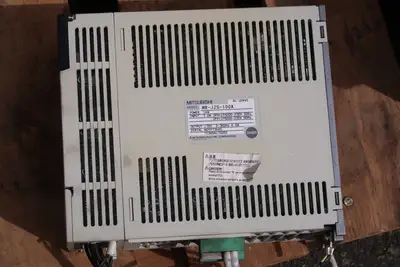

USED MITSUBISHI MR-J2S-100A

Voltage: 230 volts
Phase: 3-phase
Amps: 5 amps
Voltage / Frequency: 3-phase, 200 to 230 VAC, 50/60 Hz
Permissible Voltage Fluctuation: 3-phase, 170 to 253 VAC, 50/60 Hz
Permissible Frequency Fluctuation: Within +/-5%
Inrush Current: Main Circuit Power Supply: 120 A, Control Circuit Power Supply: 100 to 130 A
Control System: Sine-wave PWM control, current control system
Dynamic Brake: Built-in
Protective Functions: Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off, servo motor overheat protection, encoder error protection, regenerative error protection undervoltage, instantaneous power failure protection, overspeed protection, excessive error protection
Position Control Mode:-
Max. Input Pulse Frequency: 500kpps (for differential receiver), 200kpps (for open collector)
Command Pulse Multiplying Factor: Electronic gear A:1 to 65535, 131072 B:1 to 65535, 1/50
