Mixer, Conical, Double Cone, 20 Cu Ft, Stainless Steel, 5 HP, #5991566

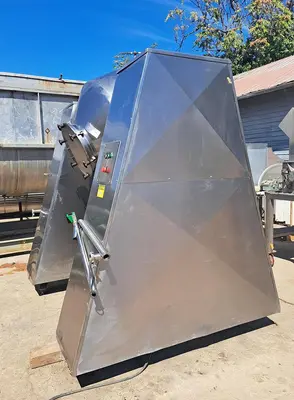

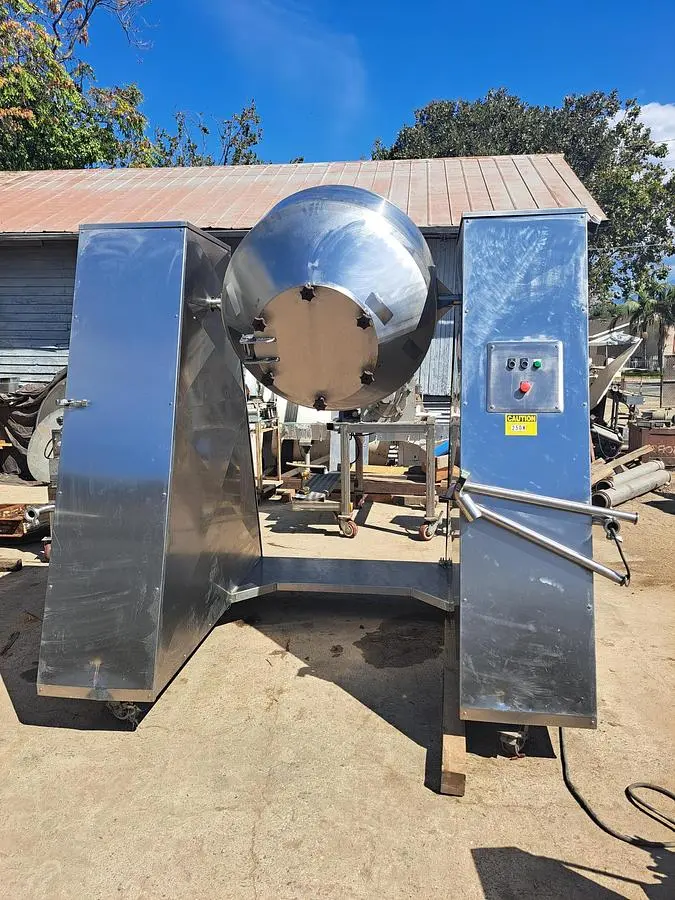

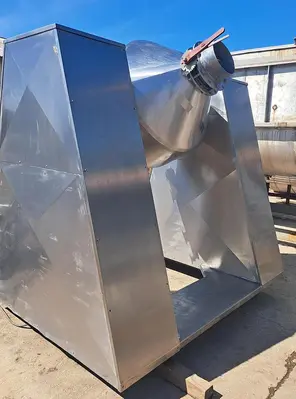

Double cone conical mixer, approximately 20 cubic feet capacity, constructed of stainless steel. Mixer measures 41" diameter x 16" straight side with 12" cone ends. Feed cone includes 18" diameter opening with cover, and discharge end is equipped with a 10" diameter outlet and manual valve. Driven by a 5 HP, 230/460 volt, 1750 RPM motor through chain and sprocket drive. Tested upon arrival. Serial number 706052.

Stock Number: 5991566
Serial Number: 706052
Capacity: 20 cubic feet (Approximate)
Materials of Construction: Stainless Steel
Diameter: 41"
Straight Side: 16"
Cone Ends: 12"

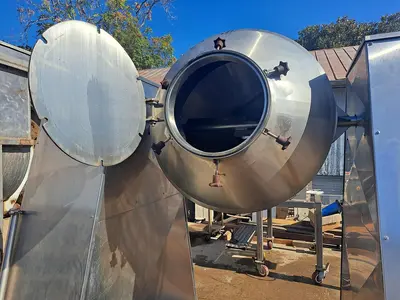

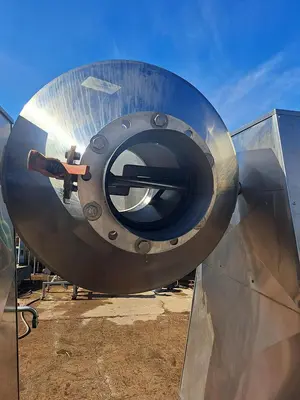

Feed Opening: 18" dia with cover

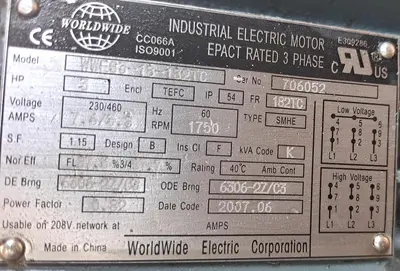

Drive: 5 HP, 230/460V, 1750 RPM motor, chain and sprocket drive
Basis: FOB
