USED MUELLER AT161B-10 S/S

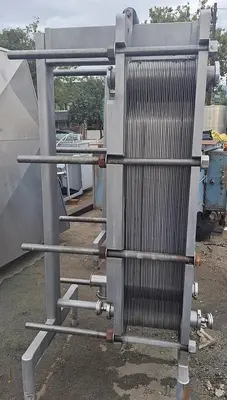

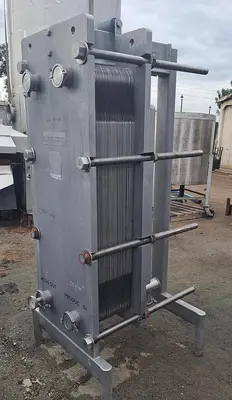

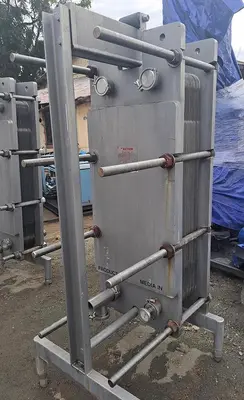

Paul Mueller Accu-Therm plate heat exchanger, Model AT161B-10 S/S, Serial Number 101176-1. Unit includes 38 plates constructed of 316 stainless steel, providing approximately 180 sq. ft. of heat transfer surface area. Designed for 75 psi at 150 °F. Features (4) fixed end ports, 3" diameter. Typical maximum water flow capacity of approximately 650 GPM.

Stock Number: 5991563
Manufacturer: Mueller
Model: AT161B-10 S/S

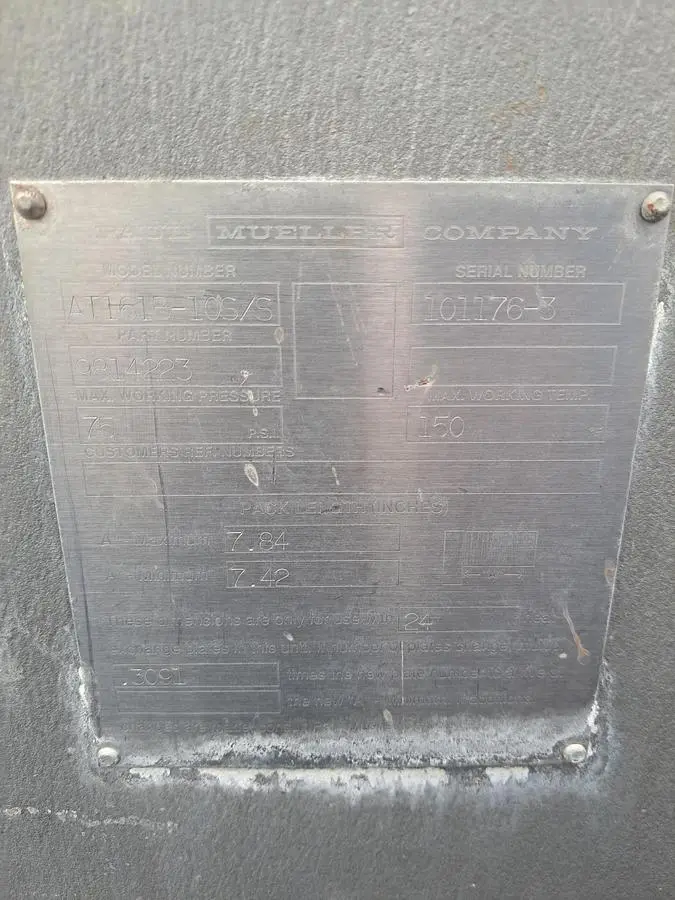

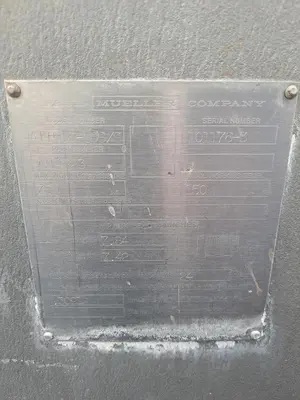

Serial Number: 101176-2
Square Feet: 180(Approx)
Number of Plates: (38) - 316 stainless steel
Design Pressure: 75 PSI
Design Temperature: 150 °F
Flow: Approx. 650 GPM
Basis: FOB
