USED MUELLER AT161B-10 S/S

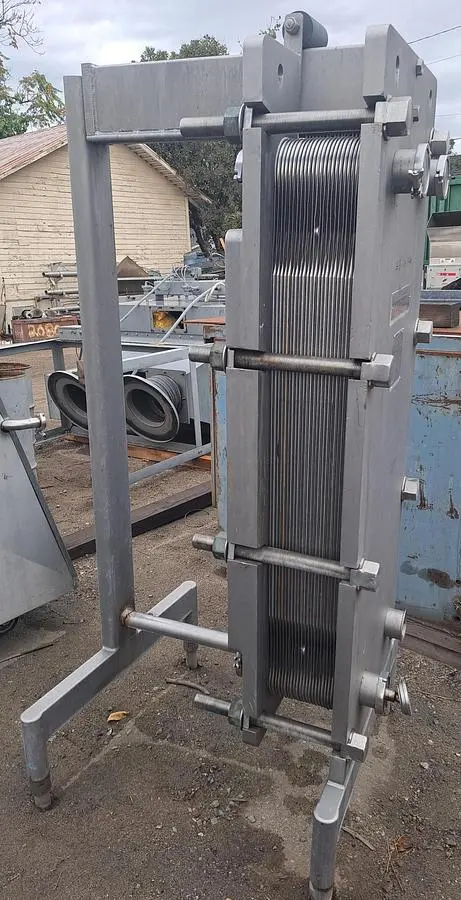

Paul Mueller Accu-Therm Plate Heat Exchanger, Model AT161B-10, Serial No. 101176-2. Unit is equipped with 24 plates constructed of 316 stainless steel, providing an approximate heat transfer surface area of 115 sq. ft. Design pressure rated for 75 PSI and design temperature up to 210 °F. Typical maximum water flow capacity of approximately 650 GPM. Features (4) fixed end 3" ports for connections.

Stock Number: 5991562
Manufacturer: Mueller
Model: AT161B-10 S/S

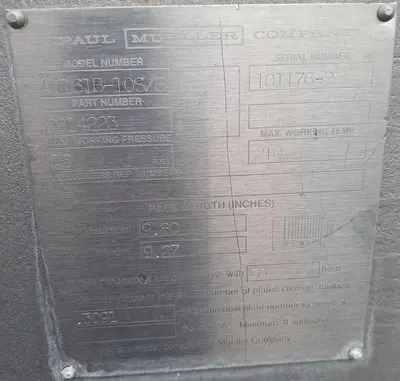

Serial Number: 101176-2
Square Feet: 115 (Approx)
Number of Plates: (24) - 316 stainless steel
Design Pressure: 75 PSI
Design Temperature: 210 °F
Flow: Approx. 650 GPM
Ports: (4) 3" fixed end
Basis: FOB
