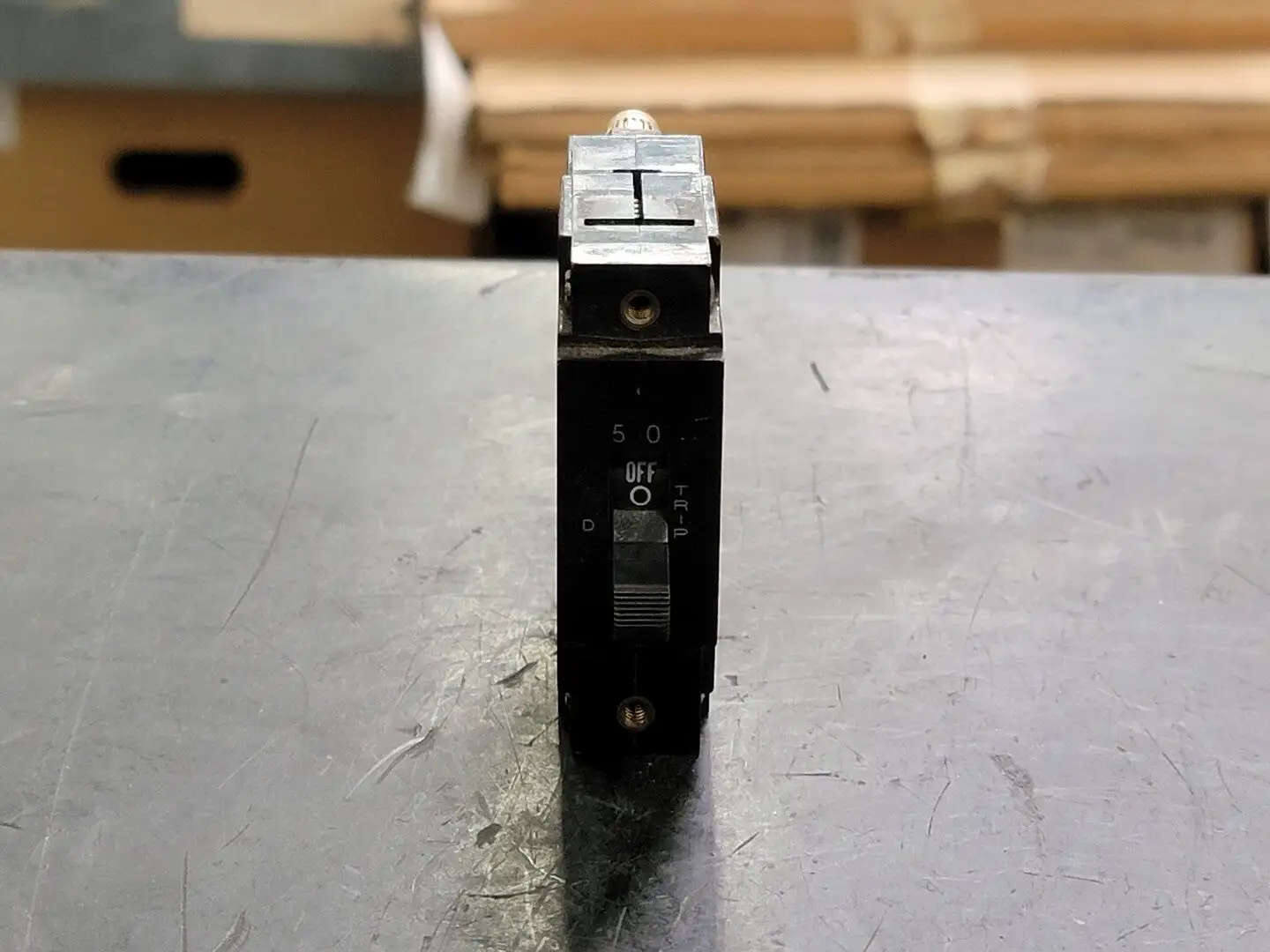

USED HEINEMANN AM1S-B98AAA02ALDDU-W

Amps: 50 amps
# of Poles: 1
Mounting Style: Plug-In
Voltage: 80VDC
Interrupting Capacity: 10kA
Type: Thermal Magnetic Circuit Breaker
Pole Configuration: Single Pole
Current Rating: 50 Amps
Mounting Style: Vertical Surface Mount
Terminal Type: Screw Terminals

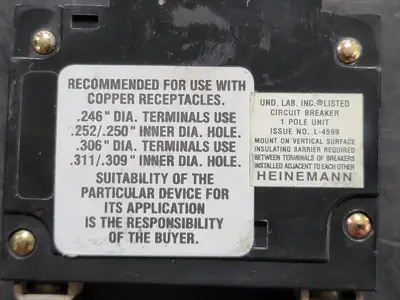

Compatible Terminal Sizes:
0.246" diameter terminals with 0.252"/0.250" inner diameter holes
0.306" diameter terminals with 0.311"/0.309" inner diameter holes
Material Compatibility: Copper Receptacles Only
Application: Industrial and Commercial Electrical Distribution
Switch Positions: ON / OFF / TRIP
Manufacturer: Heinemann
Additional Notes:
Insulating barrier required between adjacent breakers
