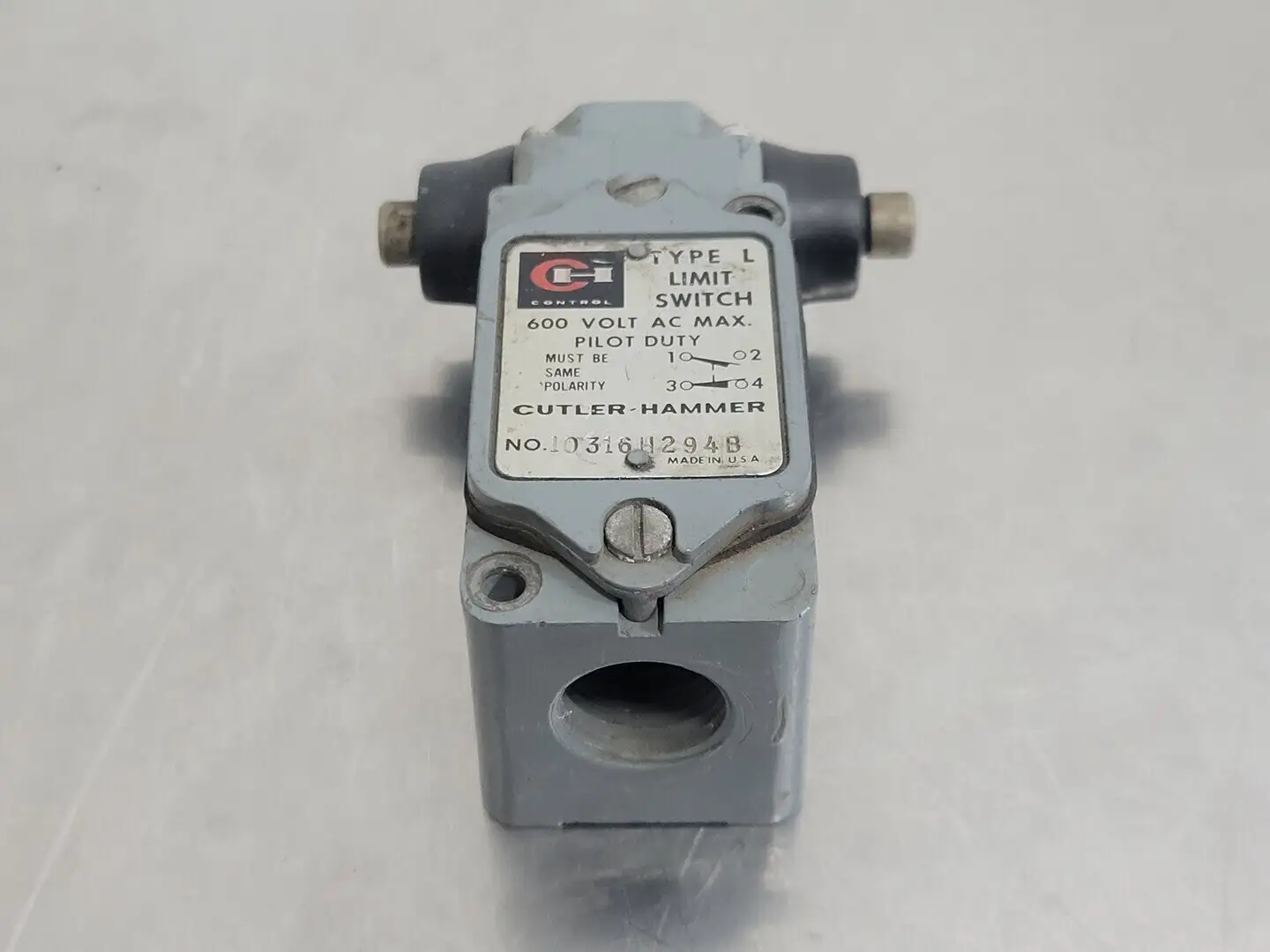

USED CUTLER-HAMMER 10316H294B

Type: Type L Limit Switch
Voltage Rating: 600 VAC Max
Current Rating: 5 -10 A (depending on configuration)
DC Rating: 0.1 - 0.2 A @ 125-250 VDC
Duty Rating: Pilot Duty
Polarity: Must be same polarity
Contact Configuration: 1 NO / 1 NC (varies by internal wiring)
Actuator Type: Side push-roller plunger
Enclosure Material: Die-cast metal
Terminal Type: Screw terminals
Temperature Range: -29°C to +93°C (-20°F to +200°F)
Enclosure Rating: NEMA 4X, 7, and 9 (explosion-proof variants)
Mounting: Surface mount with two screw holes
