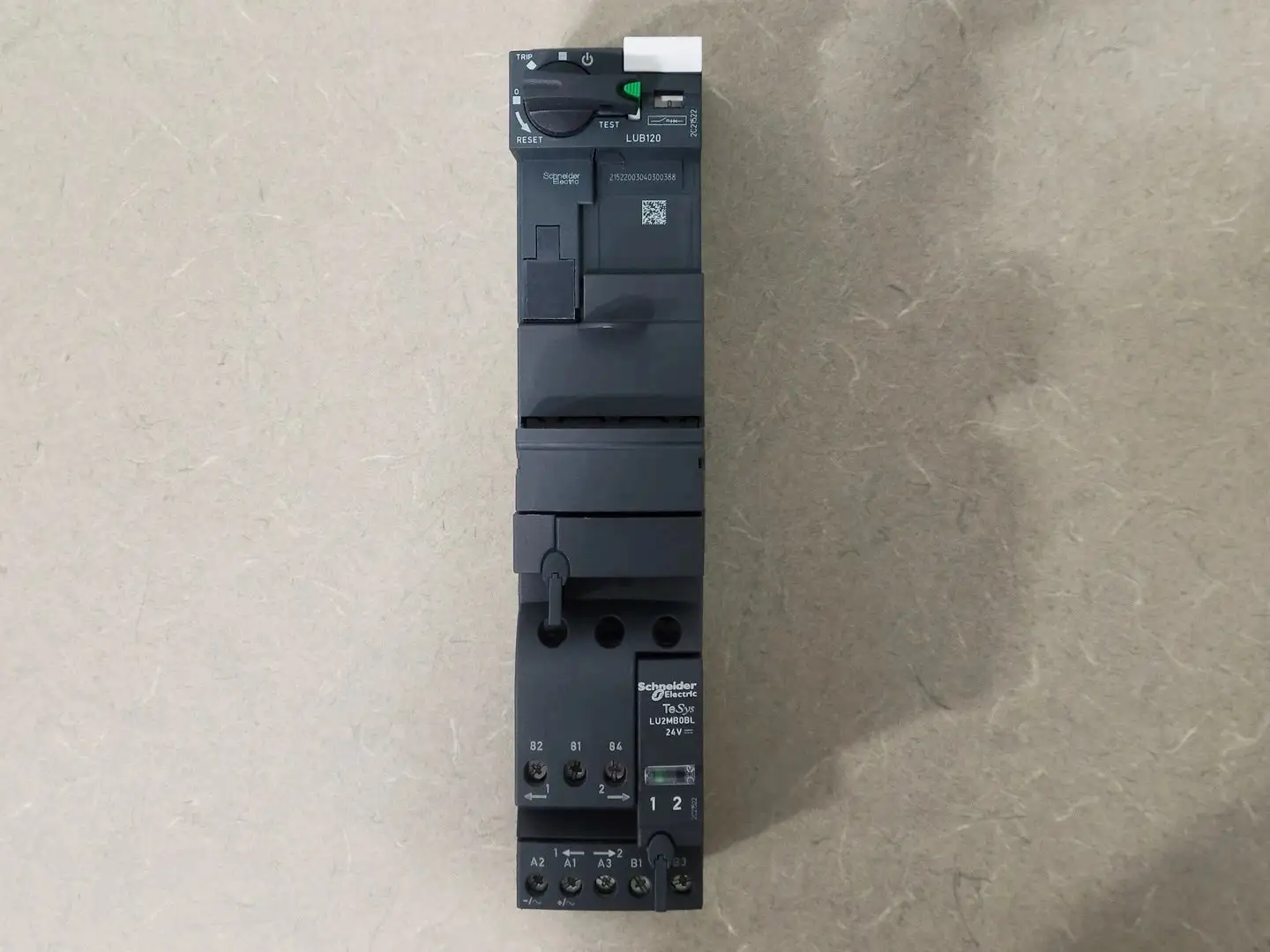

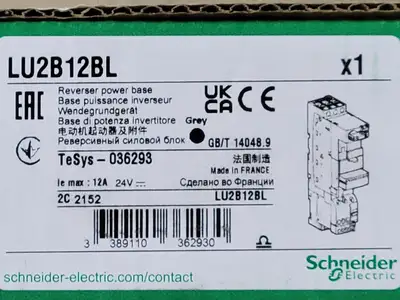

NEW SCHNEIDER ELECTRIC LU2B12BL

Horsepower: 10 hp
Voltage: 690 volts
Amps: 12 amps
Max. Current: 12 A
Control Circuit Volts: 24 VDC
Poles: 3
Auxiliary Contact Composition: 1 NO + 1 NC
1-Phase Max. HP Ratings: 2 hp @ 240 V
3-Phase Max. HP Ratings:
3 hp @ 200/240 V
7.5 hp @ 480 V
10 hp @ 600 V

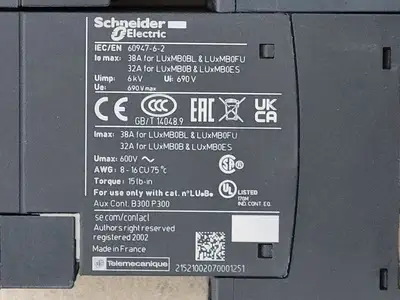

Bottom Section - LU2MB0BL Reverser Block
Max. Current:
38 A for LUxMB0BL & LUxMB0FU
32 A for LUxMB0B & LUxMB0ES
Wire Size: 8 - 16 AWG CU
Torque: 15 lb-in
