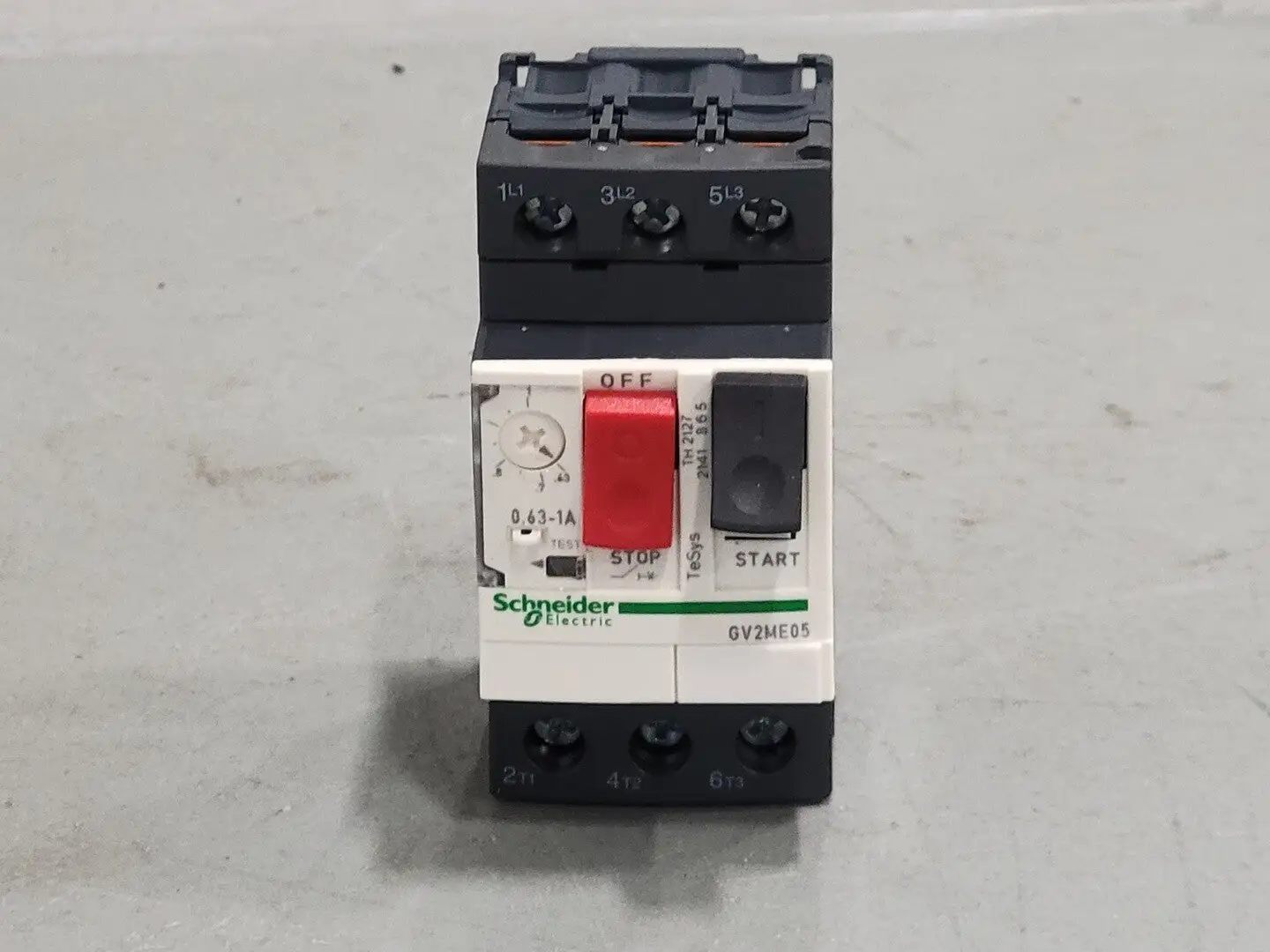

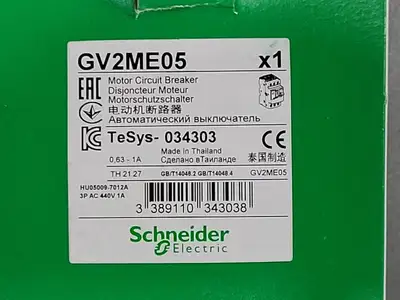

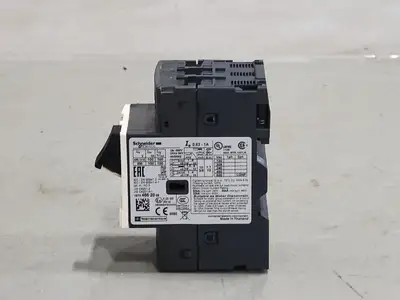

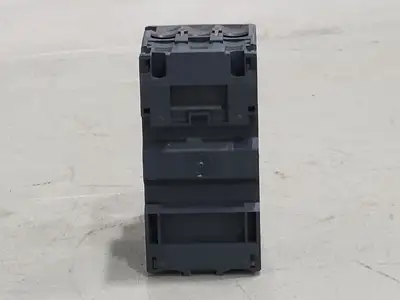

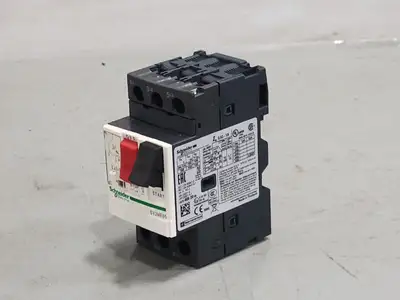

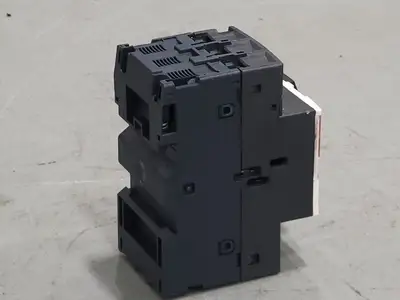

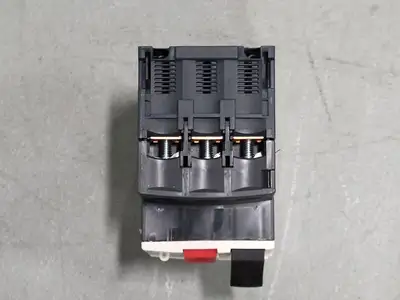

NEW SCHNEIDER ELECTRIC GV2ME05

Amps: 0.63-1 amps
Series: GV2ME
# of Poles: 3
Main Details
Range: TeSys Deca
Product name: TeSys GV2;TeSys Deca
Product or component type: Motor circuit breaker
Device short name: GV2ME
Device application: Motor protection
Trip unit technology: Thermal-magnetic
Complementary Details
Poles description: 3P
Network type: AC
Utilisation category: Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1
Network frequency: 50/60 Hz conforming to IEC 60947-4-1
Fixing mode: 35 mm symmetrical DIN rail: clipped; Panel: screwed (with adaptor plate)
Motor power kW: 0.25 kW at 400/415 V AC 50/60 Hz; 0.55 kW at 690 V AC 50/60 Hz
Control type: Push-button
