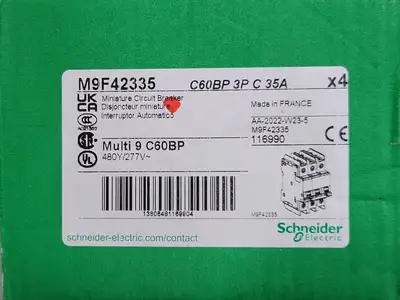

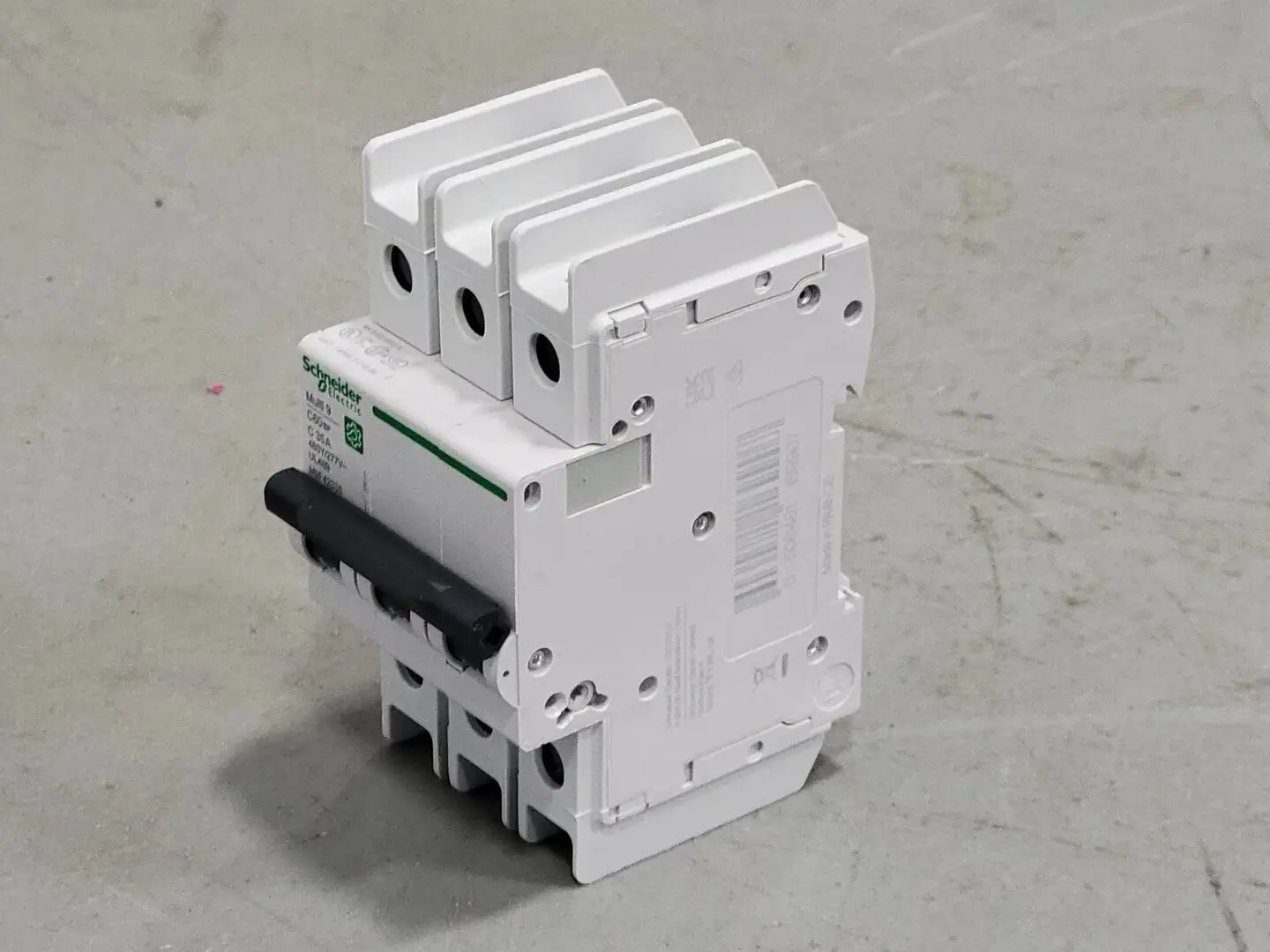

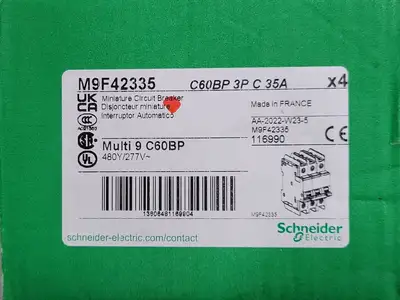

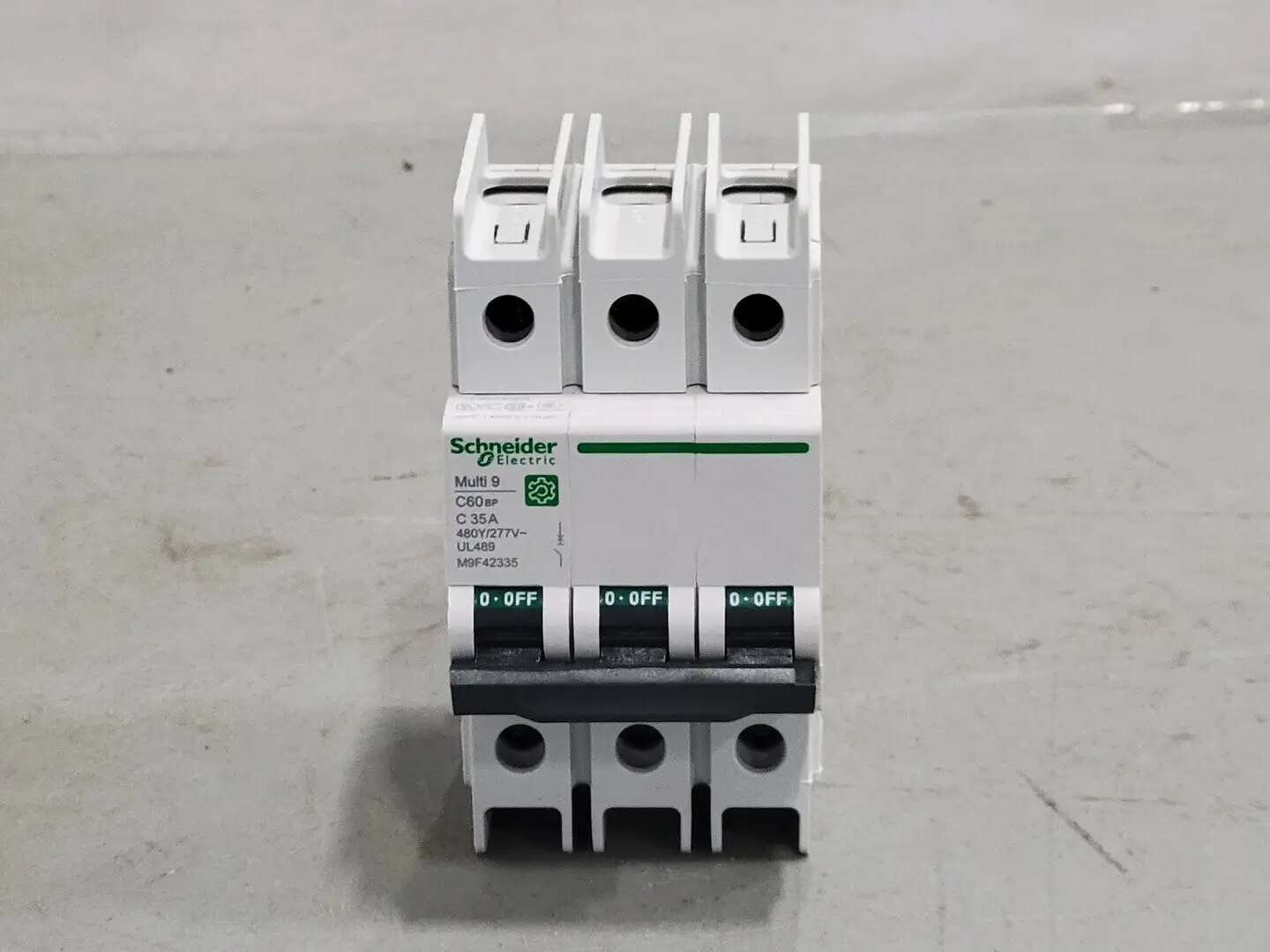

NEW SCHNEIDER ELECTRIC M9F42335

Amps: 35 amps
# of Poles: 3
Voltage: 277/480 volts
Phase: 3-phase
Main Details
Range: Multi9
Product name: Multi9 C60
Product or Component Type: Miniature circuit-breaker
Device short name: C60BP
Device Application: Distribution
Poles description: 3P
Number of protected poles: 3
Line Rated Current: 35 A 77 °F (25 °C) EN/IEC 60947-2
Network type: AC
Trip unit technology :Thermal-magnetic
Curve code: C
Complementary Details
[Ue] rated operational voltage: 240 V AC 50/60 Hz, 415 V AC 50/60 Hz, 440 V AC 50/60 Hz
Magnetic tripping limit: 8.5 x In +/- 20 % AC
[Ui] rated insulation voltage: 500 V AC EN/IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kVEN/IEC 60947-2
Contact position indicator: Yes
Control type: Toggle
Local signalling: ON/OFF indication
Mounting Mode: Clip-on
Mounting Support: DIN rail
9 mm: pitches 6
