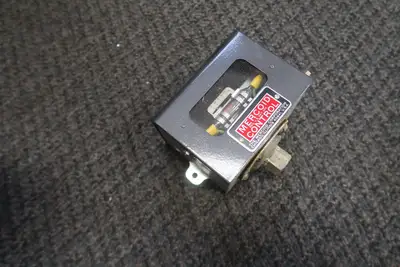

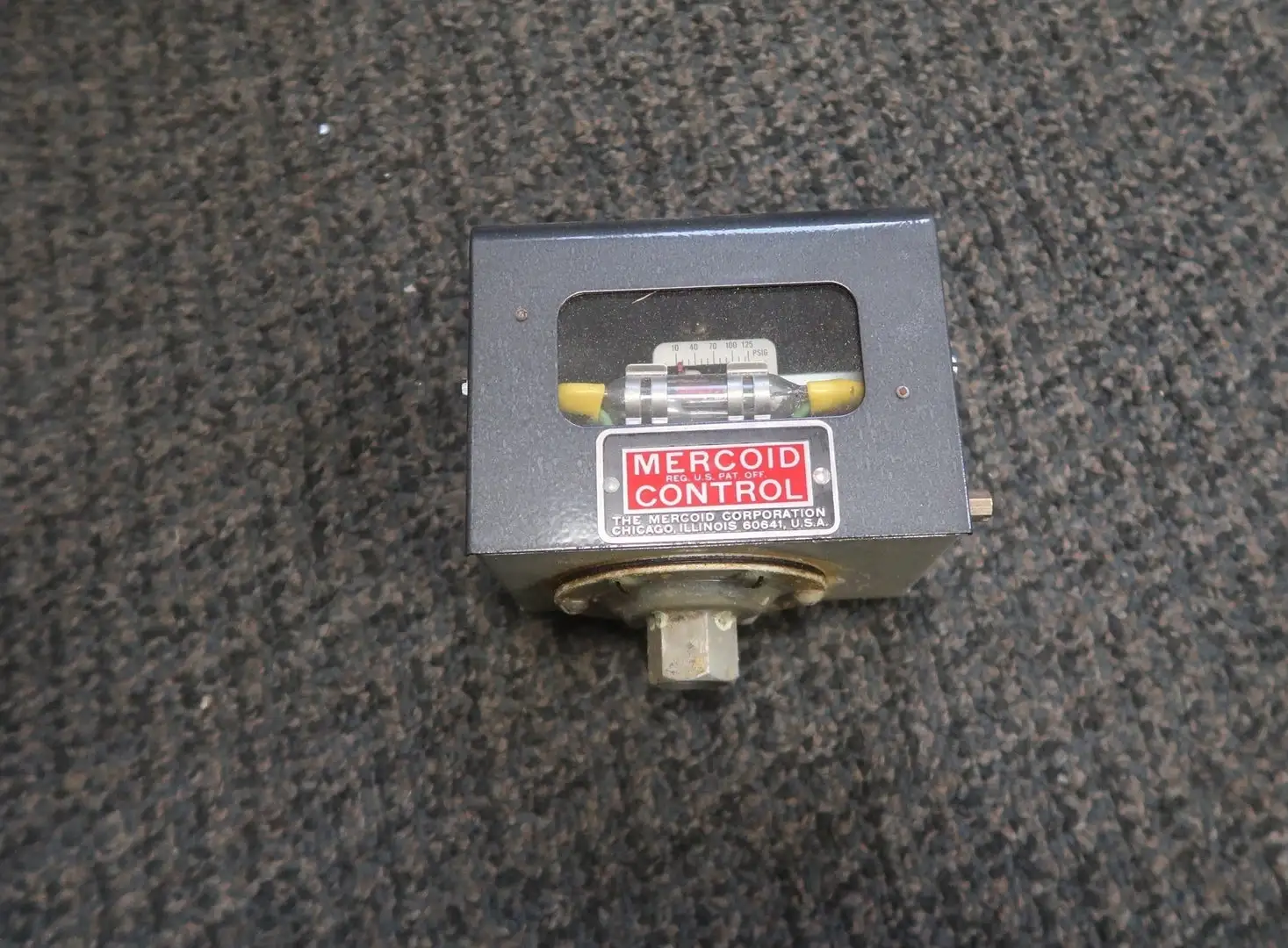

NEW MERCOID APD-153

Circuit Suffix Numbers: -153
Wetted Material: Nylon reinforced Buna-N and Steel. PTFE and 316 SS
Temperature Limit: -30 deg. to 150 deg. F (-35 deg to 66 deg. C)
Enclosure Rating: General Purpose, Weatherproof and explosion-proof
Switch Type: SPDT mercury switch or SPDT snap switch
Electrical Rating:
Mercury Switch: 4A @ 120 VAC/DC, 2A @ 240 VAC/DC
Snap Switch: 15A @ 120 VAC, 8A @ 240 VAC, 0.5A @ 120 VDC, 0.25A @ 240 VAC
Electrical Connection: Screw Terminal
Conduit Connection: 7/8" (22.23 mm) hole for 1/2" (12.7) conduit hub
Process Connection: 1/4" female NPT
Mounting Orientation: Vertical for mercury switch models, any position for snap switch models
Set Point Adjustment: External Screw
