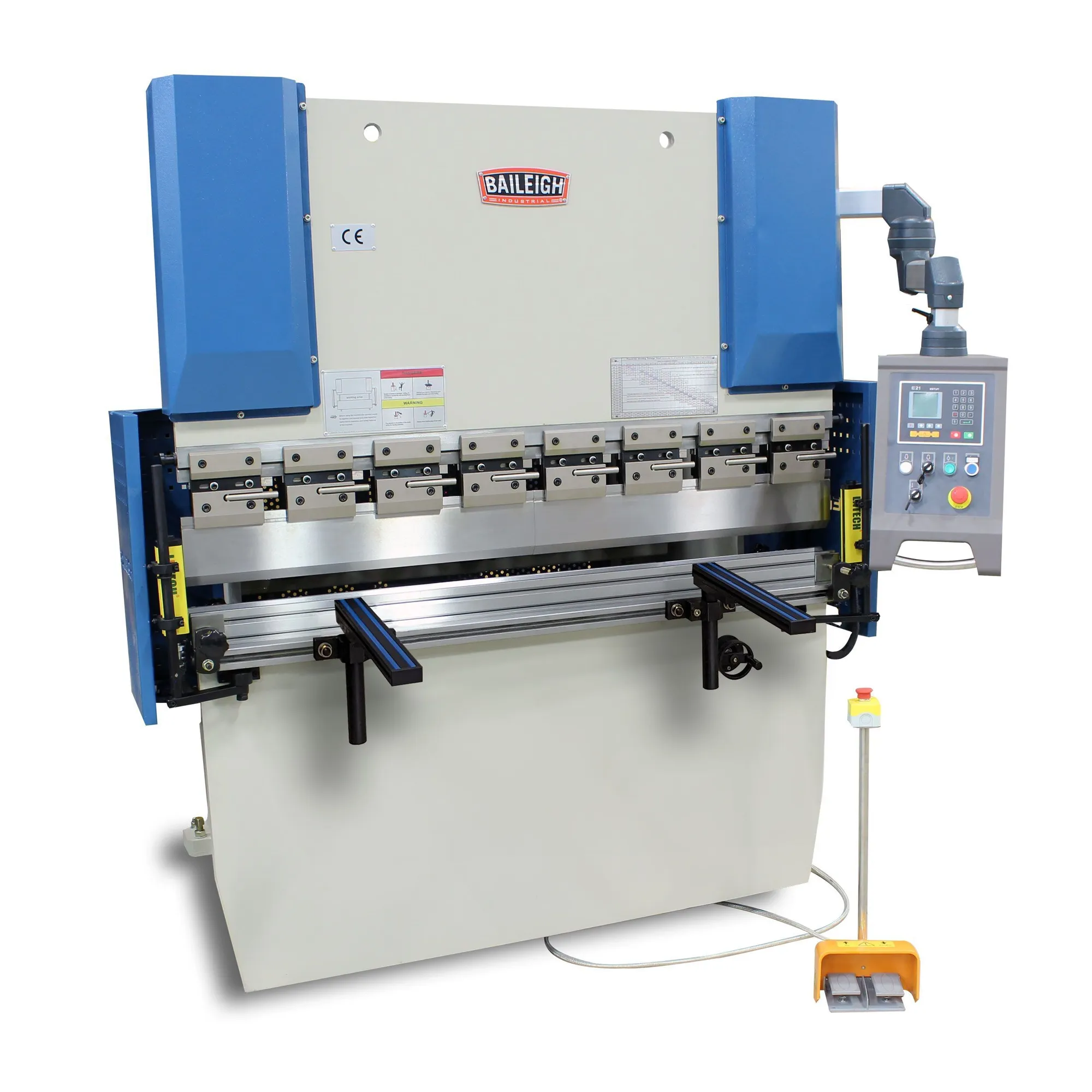

The BAILEIGH BP-3305CNC CNC hydraulic press brake offers programmable controls, top-quality components, and heavy steel construction for an unbeatable price. It delivers 33 tons of pressure across its 63" table and runs on 220-volt 3-phase power. The Easy-to-use programmable 2-axis Estun E21 controller is integrated right from the factory.
| Pressure/Tonnage | 33 T | 29.937 t |
| Table Length | 5' | 1.5 m |
| Throat Depth | 8" | 203.2 mm |
| Distance between columns | 51.0 | 51.0 |
| Approach Speed | 3.5 in/sec. | 88.9 mm/sec. |
| Bending Speed | 0.4 in/sec. | 10 mm/sec. |
| Minimum Return Speed | 3.3 in/sec. | 83.8 mm/sec. |
| Distance From Table To Ram | 13.325" | 338.45 mm |
| Stroke Distance | 3.15" | 80.01 mm |

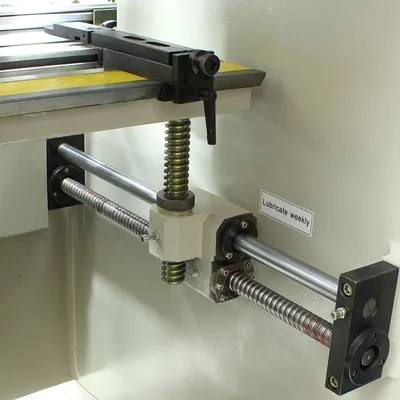

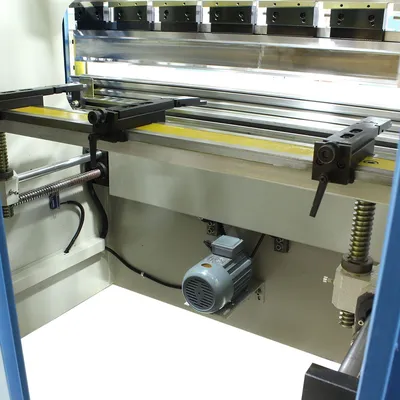

| Back Gauge Motor | 1/2 HP | 1/2 HP |
| Power | 220V / 3-phase | 220V / 3-phase |

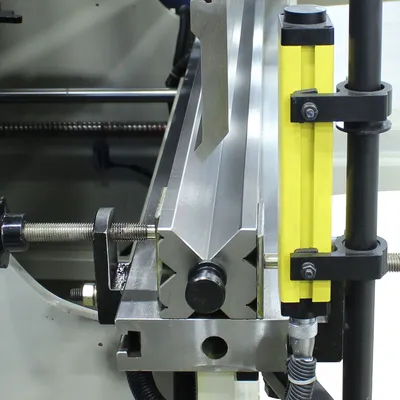

| Included Tooling | 78° Gooseneck & Multi-Vee Die (5/16", .39", .47", 5/8", .94", 1-1/4", 2") | 78° Gooseneck & Multi-Vee Die (5/16", .39", .47", 5/8", .94", 1-1/4", 2") |
| Shipping Dimensions (L/W/H) | 91 x 56 x 87 in. | 91 x 56 x 87 in. |
| Gross Weight | 5,100 lb | 2,313.3 kg |

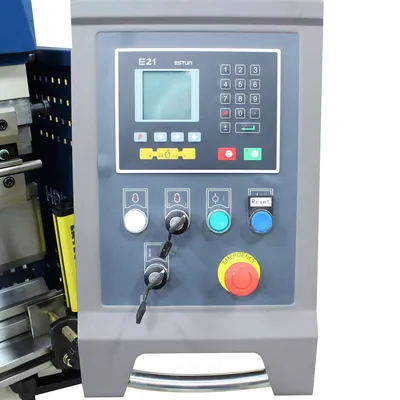

| Control | CNC (Estun E21) | CNC (Estun E21) |
| Dimensions | 91 x 56 x 87 in. | 91 x 56 x 87 in. |
| Weight | 5050 lbs. | 5050 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

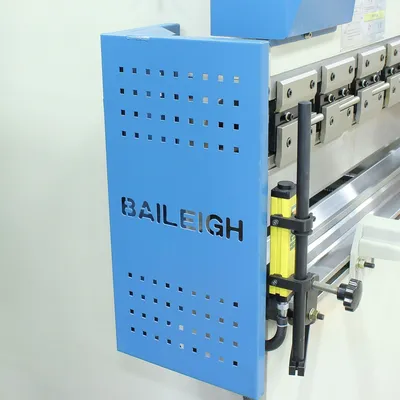

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
