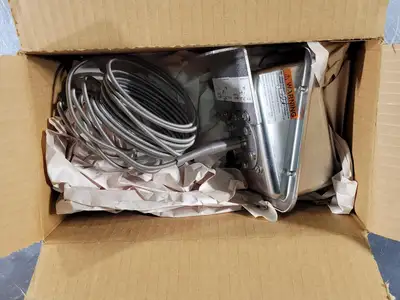

NEW ASHCROFT XBXC4FS

Amps: 15 amps
Voltage: 480 volts
Setpoint Repeatability (Accuracy): +/- 1% of span (Additional setpoint shift of +/-1% of range per 50 deg. F from initial setpoint set at 70 deg. F)
Enclosure Material: 316L Stainless steel

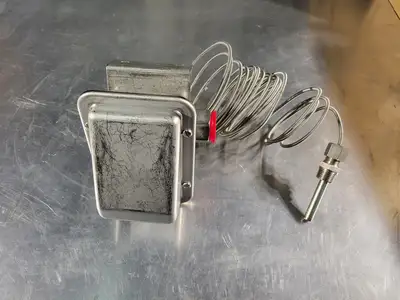

Remote Mount: Capillary length from 5' to 25' (5 ft. increments)
Switch Output: 2 SPDT acting as DPDT (L & G only) SPDT or 2 SPDT with dual setpoints
Deadband: Fixed or adjustable
Electrical Termination: 3/4 NPT Female conduit connection
Wetted Material: Direct Mount- 316 Stainless steel, Remote Mount- Bulb capillary- 316 Stainless steel, Spiral Armor- 302 Stainless steel
Setpoint: Dual setpoint, fixed deadband (Setpoints - factory set or field adjustable); Single setpoint, adjustable deadband; Single setpoint, fixed deadband
Pressure Connection: Direct Mount- 1/2 NPT 316 SS, Direct Mount- 1/2 NPT Male, Remote Mount- 1/2 Male Bushing (XBX) (OPT.)
Direct Mount: Stem Lengths from 2-3/4" to 24"
Pressure Range: -40 to 60 deg. F through 500 to 750 deg. F
Function (GTD): Temperature Control, Two Independently adjustable setpoint, fixed deadband

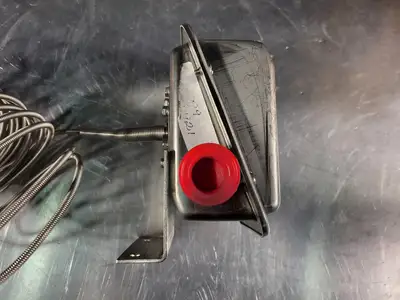

Enclosure (N4): NEMA 4X
Switch Element (GG): General Purpose- 15A, 125/250/480 VAC, 1/2A, 125 VDC, 1/4A, 250 VDC
Capillary Line Length (15): 15'
Thermal System Selection (A7): Stainless Steel Armor (STD.)
Remote Mount Bulb Length Selection (030): S Dim- 3", U Dim- 2-1/2"

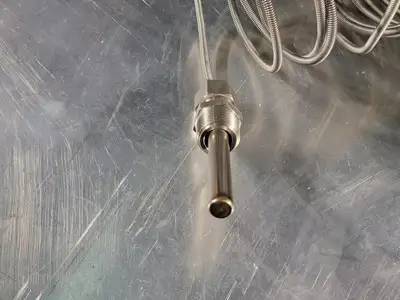

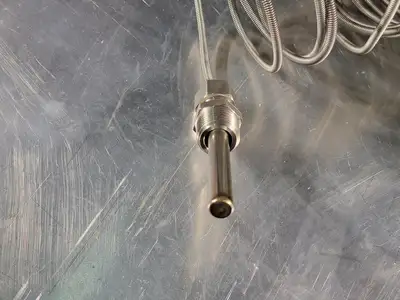

Process Connection (BX): 1/2 Male NPT bushing

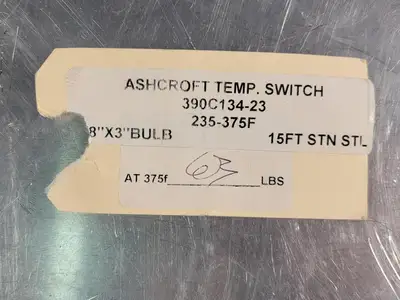

Temperature Range: 235 to 375 deg. F
