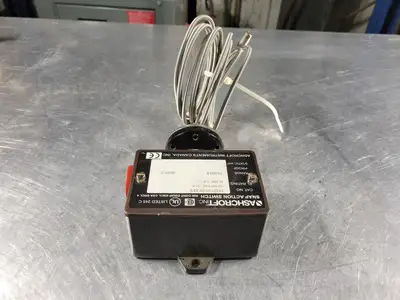

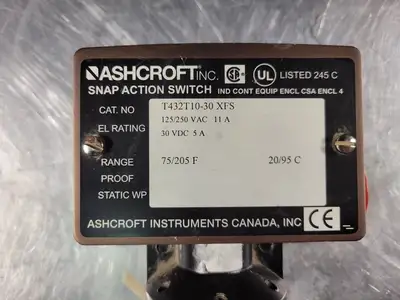

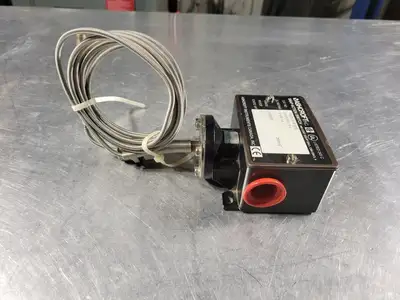

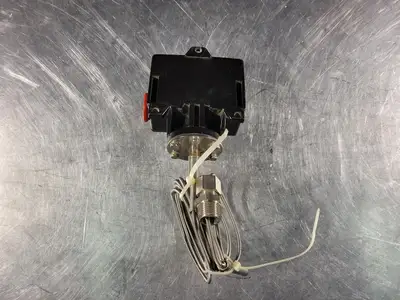

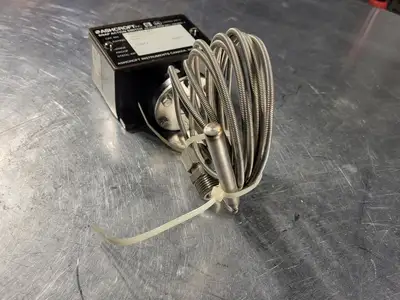

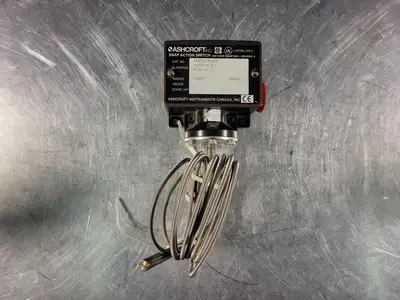

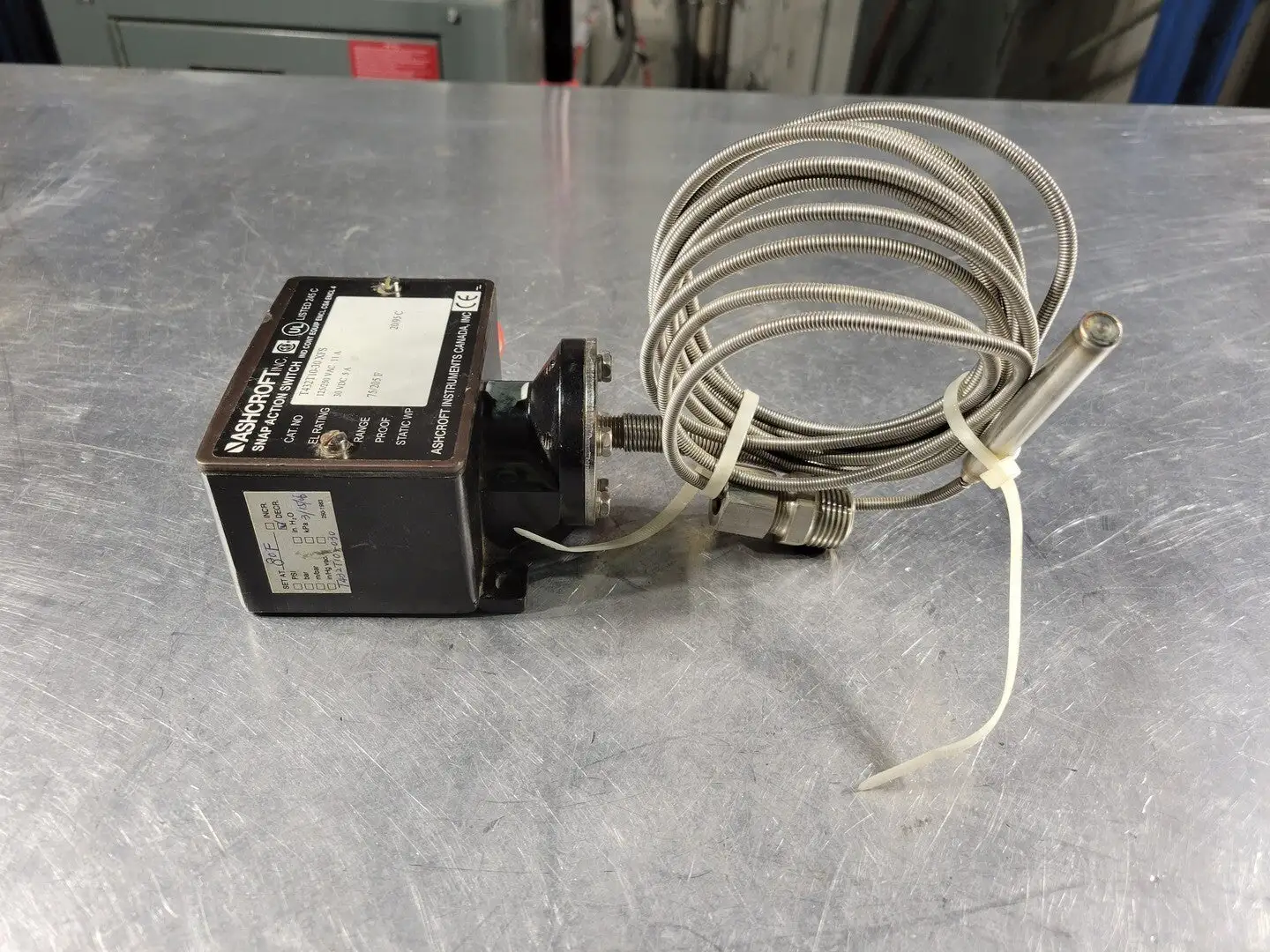

USED ASHCROFT T432T10-30 XFS

Voltage: 120/240 volts
Set Repeatability (Accuracy): +/-% of span
Switch Type: SPDT or 2 SPDT acting as DPDT
Setpoint: Single setpoint - factory set or field adjustable
Deadband: Fixed or limited adjustable deadband
Enclosure Material: Watertight - epoxy coated aluminum; Explosion - epoxy coated aluminum, 316SS (opt.)
Pressure Connection Size:-
Direct Mount: 1/2 NPT male
Remote Mount: N/A- (opt.) 1/2 NPT male bushing (XBX)
Electrical Termination: 3/4 NPT Female
Direct Mount: Stem Lengths from 2-3/4" to 24"
Remote Mount: Capillary lengths from 5' to 25' (5ft. increments)
Wetted Components:
Direct Mount: 1/2 NPT - 316 SS; Bulb - 316 SS
Remote Mount: Bulb, Capillary - 316 SS; Spiral Armor - 302 SS
Enclosure: Watertight Enclosure meets NEMA 3, 4, 4X, 13 and IP66 requirements
Switch Element: Hermetically sealed switch, gold contacts, 1A, 125 VAC
Thermal System: 10'
Bulb Length: 3"
Temperature Range: 75 deg. to 205 deg. F
