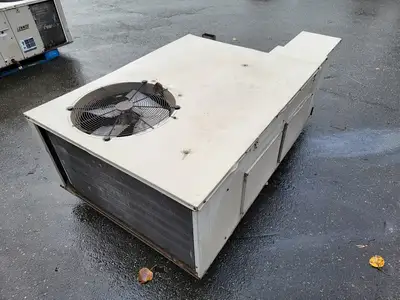

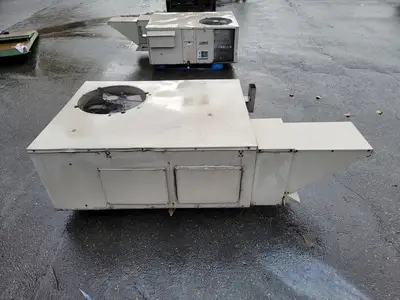

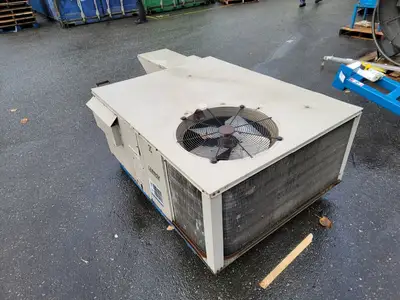

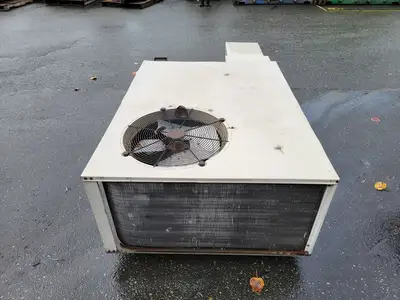

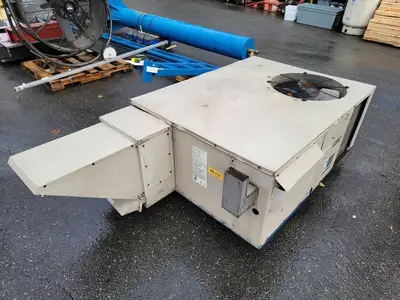

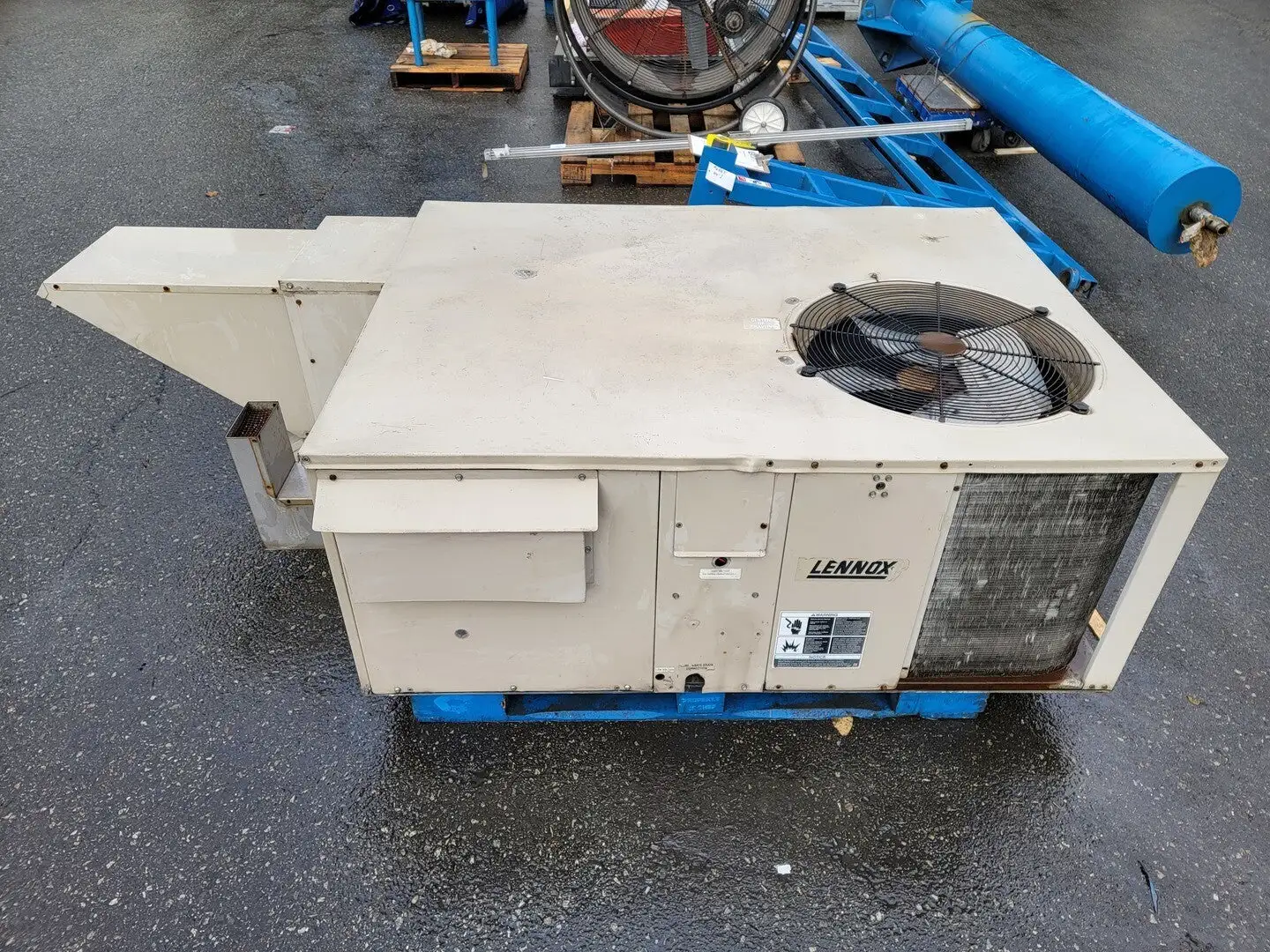

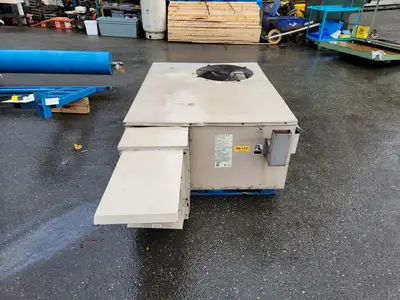

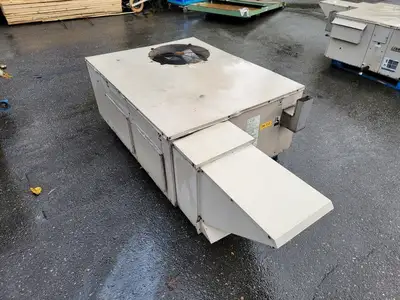

USED LENNOX GCS16-024-50-4P

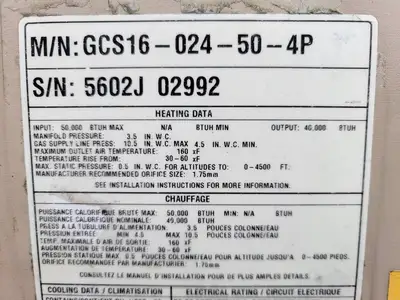

Heating Data
Input: 50,000 BTUH max.
Output: 40,000 BTUH
Manifold Pressure: 3.5 in. w.c.
Gas Supply Line Pressure: 10.5 in. w.c. max. / 4.5 in. w.c. min.
Max. Outlet Air Temp.: 160 F
Temperature Rise From: 30 - 60 F
Max. Static Pressure: 0.5 in w.c. for altitudes to 0 - 4500 ft.
Manufacturer Recommended Orifice Size: 1.75 mm
Cooling Data
Nominal Cooling Capacity: 7.0 kw (2 tons)
Refrigerant: HCFC-22
Factory Charge: 3 lb-3 oz
Min. Design Pressure: 278 psig High / 144 psig Low

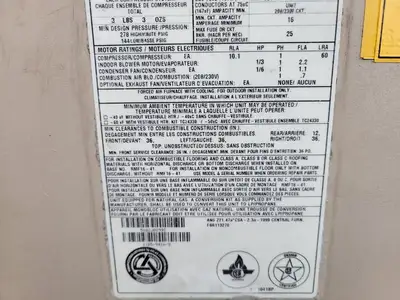

Electrical Rating:
Operation: 208/230 V, 1-ph
Min. Circuit Ampacity: 16 A
Max. Fuse or Circuit Breaker: 25 A
Motor Ratings
Compressor each: 10.1 RLA, 1-ph, 60 LRA
Indoor Blower Motor: 1/3 hp, 1-ph, 2.2 FLA
Condenser Fan each: 1/6 hp, 1-ph, 1.1 FLA
Combustion Air Blower: 208/230 V, 1-ph, 0.7 FLA
