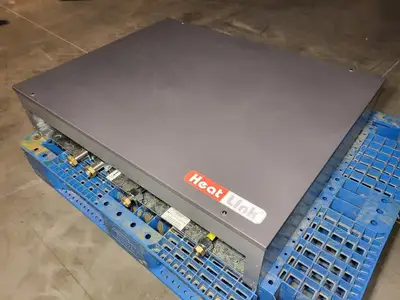

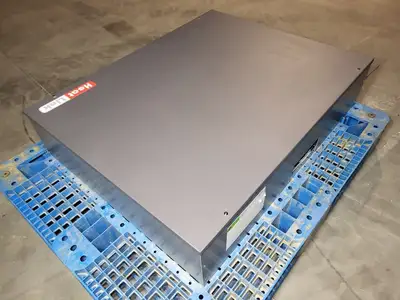

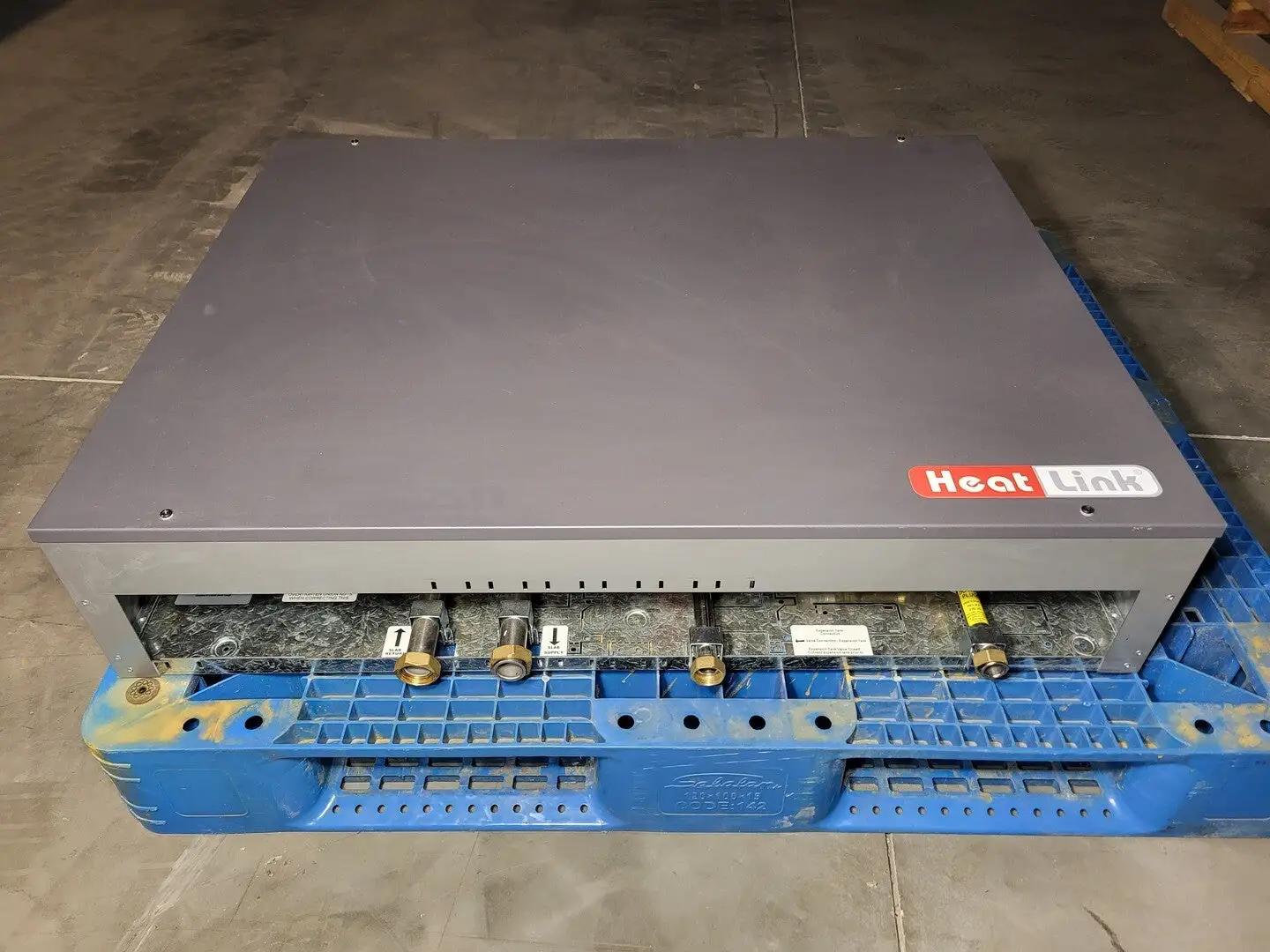

NEW 2020 HEATLINK SMP300SS- HEX-H

New and unused
Comes with box of fittings and adaptors
Max Ambient Temperature: 120°F // 49°C
Max Water Temperature: 200°F // 93°C
Max Operating Pressure: 125 psi // 862 kPa

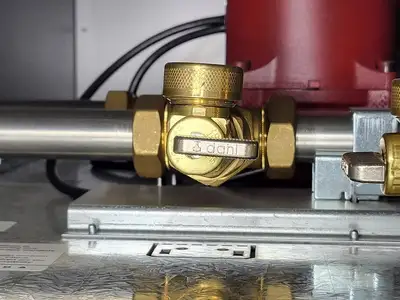

Temperature Control Method: 3-way Mixing Valve with DDC Motor
Power supply: 110V(ac); max. current 6A
Nominal Panel Output: 365,000 Btu/hr

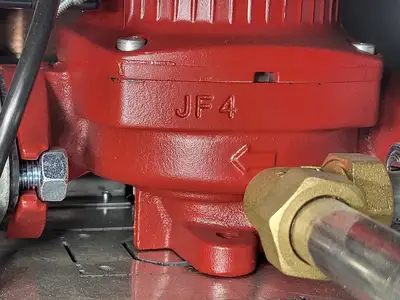

Primary Circulator: Ferrous, Grundfos UPS26-99FC
Secondary Circulator: Ferrous, Grundfos UPS26-150FC
Heat Exchangers: 3x Single-wall brazed plate; FP3x8-30
Entering fluid temp (water): 182 °F // 83.3 °C
Exiting fluid temp (water): 152 °F // 66.7 °C
Entering fluid temp (50% glycol): 110 °F // 43.3 °C
Exiting fluid temp (50% glycol): 142.8 °F // 61.6 °C
Flow rate: 24.9 gpm // 94.3 L/min
