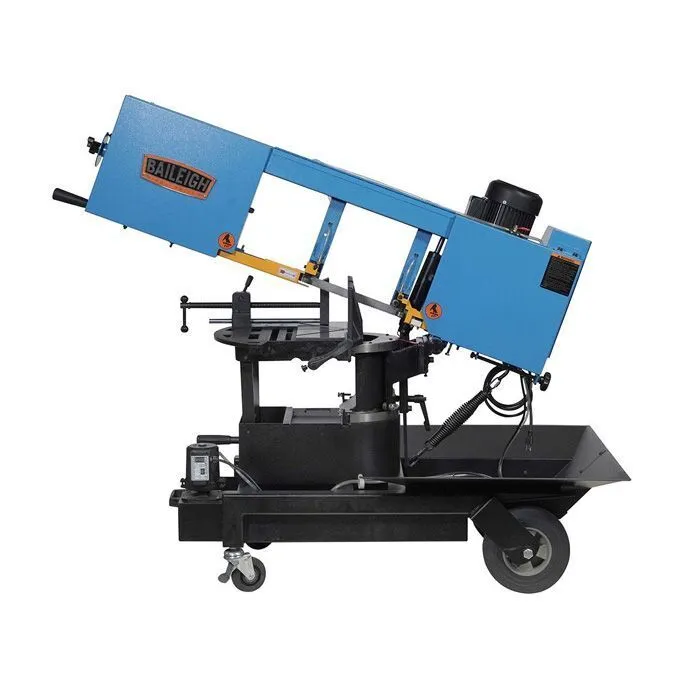

BAILEIGH BS-10VS Portable EVS Dual Mitering Bandsaw has a 90 degree round capacity of 10 inches. Has horizontal and vertical configurations, inverter driven variable speed, dual mitering, and coolant. This saw is the complete package offering efficiency, performance, and safety. An inverter allows this saw to run on 115V single phase power driven by a durable three phase motor. Dual mitering head produces quick & easy angle cuts to up to 45⁰ both left and right.
| Round at 90° | 10 in. | 10 in. |
| Round at 45° | 6.5 in. | 6.5 in. |
| Square at 90° | 8 x 8 in. | 8 x 8 in. |
| Square at 45° | 5.5 x 5.5 in. | 5.5 x 5.5 in. |
| Rectangle at 90° | 8 x 9 in. | 8 x 9 in. |
| Rectangle at 45° | 8 x 5.5 in. | 8 x 5.5 in. |
| Blade Size | 1 x .035 x 120 in. | 1 x .035 x 120 in. |
| Blade Speed | 88 – 270 fpm Variable | 88 – 270 fpm Variable |
| Motor | 1 HP | 1 HP |
| Power | 115v | 115v |
| Miter Adjustment | Swivel Head | Swivel Head |
| Miter Angle | 0 – 45° Left and Right | 0 – 45° Left and Right |
| Table Height | Horizontal - 28.75 in. / Vertical - 34.875 in. | Horizontal - 28.75 in. / Vertical - 34.875 in. |
| Coolant System | Yes | Yes |
| Coolant Pump | 1/8 HP | 1/8 HP |
| Blade Guides | Carbide x Roller | Carbide x Roller |
| Descent Control | Hydraulic | Hydraulic |
| Drive | Belt | Belt |
| Max. Vise Opening | 10" | 254 mm |
| Dimensions | 61 x 30 x 46 in. | 61 x 30 x 46 in. |
| Weight | 584 lbs. | 584 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
