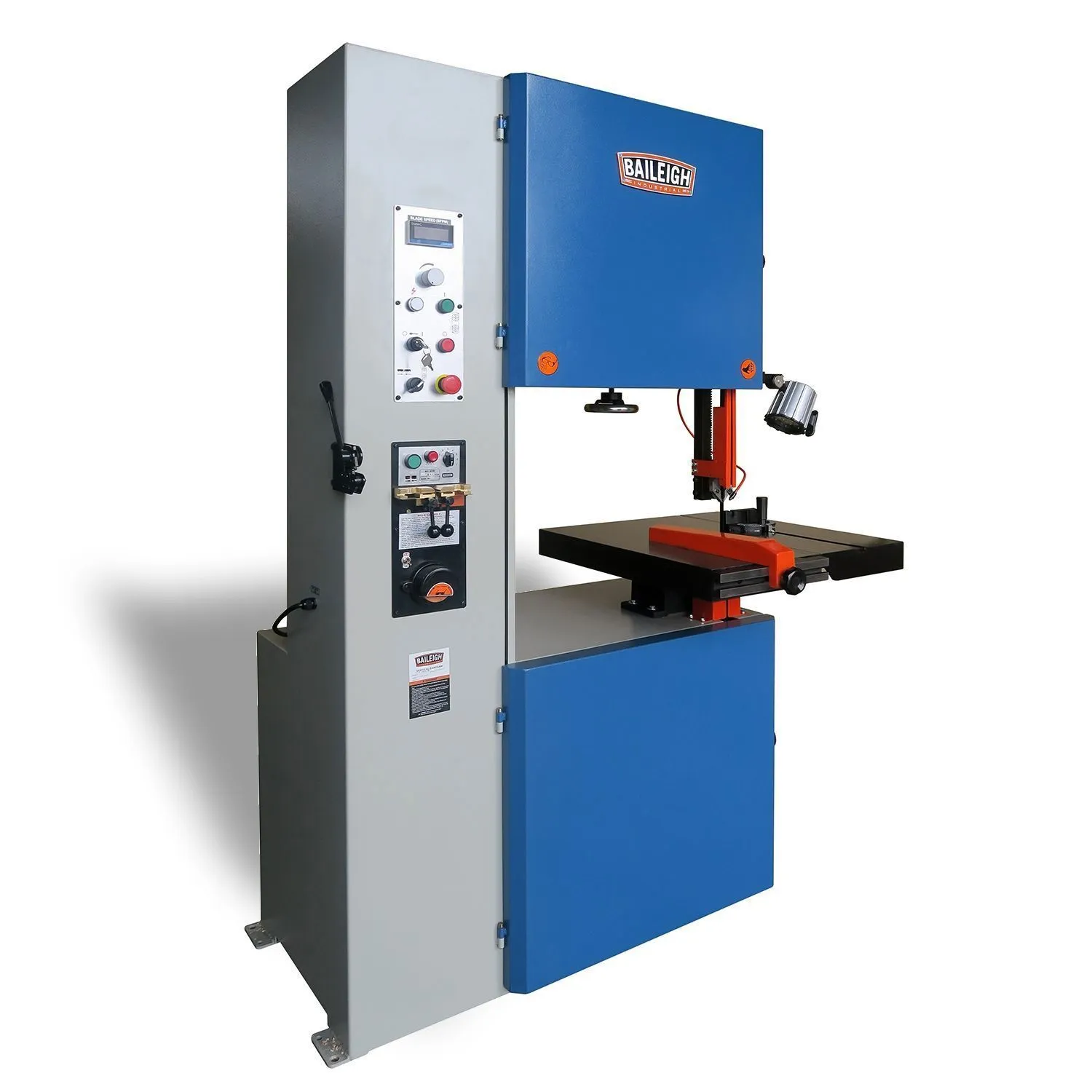

The Baileigh BSV-24VS-V2 is the largest non-mitering vertical bandsaw in our line up, this metal cutting band saw increases capacity and adds variable-speed. Make straight and curved cuts with the vertical blade. 3 hp motor runs on 220-volt three phase power. Wide 23.6" throat depth. 12.2” maximum cutting thickness.
| Throat Depth | 23.6" | 599.44 mm |
| Blade Size | 0.118 in. (13mm) x 14T | 0.118 in. (13mm) x 14T |
| Blade Length | 177.95 -179.13 in. (4520-4550mm) | 177.95 -179.13 in. (4520-4550mm) |
| Blade Thickness | 0.032 in. | 0.032 in. |
| Table Size | 24 x 24 in. (cast) and 7.8 x 24 in. (steel) | 24 x 24 in. (cast) and 7.8 x 24 in. (steel) |
| Table Tilt | 15° Left, 45° Right | 15° Left, 45° Right |
| Motor | 3 HP | 3 HP |
| Speed Control | Inverter | Inverter |
| Power | 220v, 3-Phase | 220v, 3-Phase |
| Height | 86.22" | 2,190 mm |
| Welder Capacity | 0.74 | 0.74 |
| Shipping Dimensions | 53.54 x 33.46 x 85.43 in. | 53.54 x 33.46 x 85.43 in. |
*Prop 65 Cancer and Reproductive Harm
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
