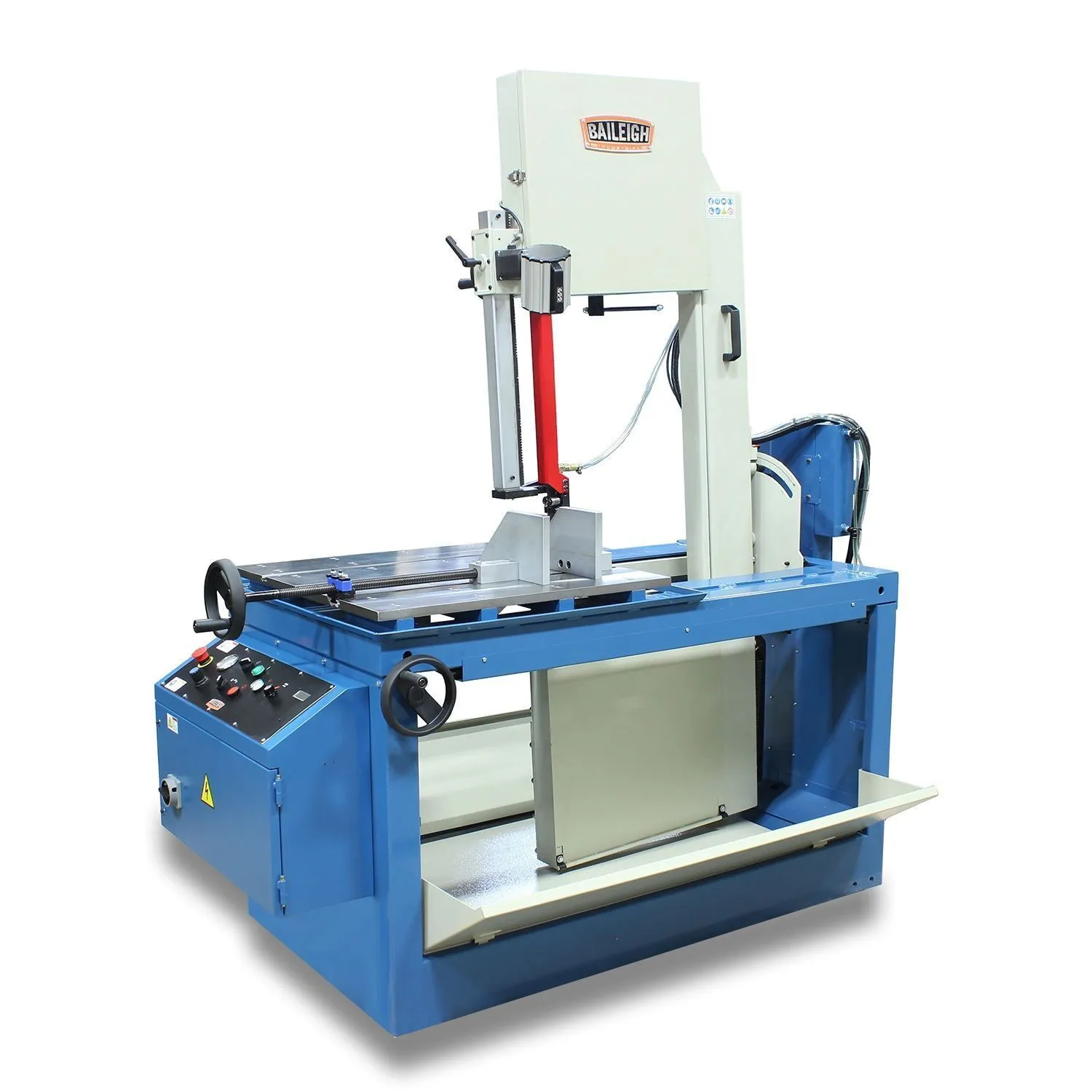

Vertical tilt frame bandsaws have been a staple of the heavy industrial scene for a long time and are very popular for cutting structural steel. The BSVT-18P is a pneumatically operated semi-automatic tilting frame vertical band saws that will make quick work of any project that you may have.
| Capacity - Round | 11-13/32 in. (Solid) | 11-13/32 in. (Solid) |
| Capacity - Rectangular | 20 x 16-1/4 in. | 20 x 16-1/4 in. |
| Capacity - Rectangular 45° | 13-57/64 x 16-1/4 in. - Right / 13-19/32 x 16-1/4 - Left | 13-57/64 x 16-1/4 in. - Right / 13-19/32 x 16-1/4 - Left |
| Throat Depth | 16.25" | 412.75 mm |
| Max. Work Height | 39.5" | 1,003.3 mm |
| Blade Length | 356 in. | 356 in. |
| Blade Thickness | .035 in. | .035 in. |
| Saw Blade Speeds | 84 - 312 fpm | 84 - 312 fpm |
| Maximum Thickness | 20" | 508 mm |
| Blade Guides | Bearing and Carbide | Bearing and Carbide |
| Motor | 2 HP | 2 HP |
| Power | 220v, 3-phase | 220v, 3-phase |
| Coolant System | Yes | Yes |
| Coolant Motor | 1/8 HP | 1/8 HP |
| Coolant Tank | 18.4 gal | 69.5 L |
| Miter Angle | 45° - 0° - 45° | 45° - 0° - 45° |
| Head Miter | 45° Left and Right | 45° Left and Right |
| Max. Vise Opening | 18" | 457.2 mm |
| Dimensions | 82 x 38.2 x 87.7 in. | 82 x 38.2 x 87.7 in. |
| Weight | 1,510 lbs | 1,510 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
