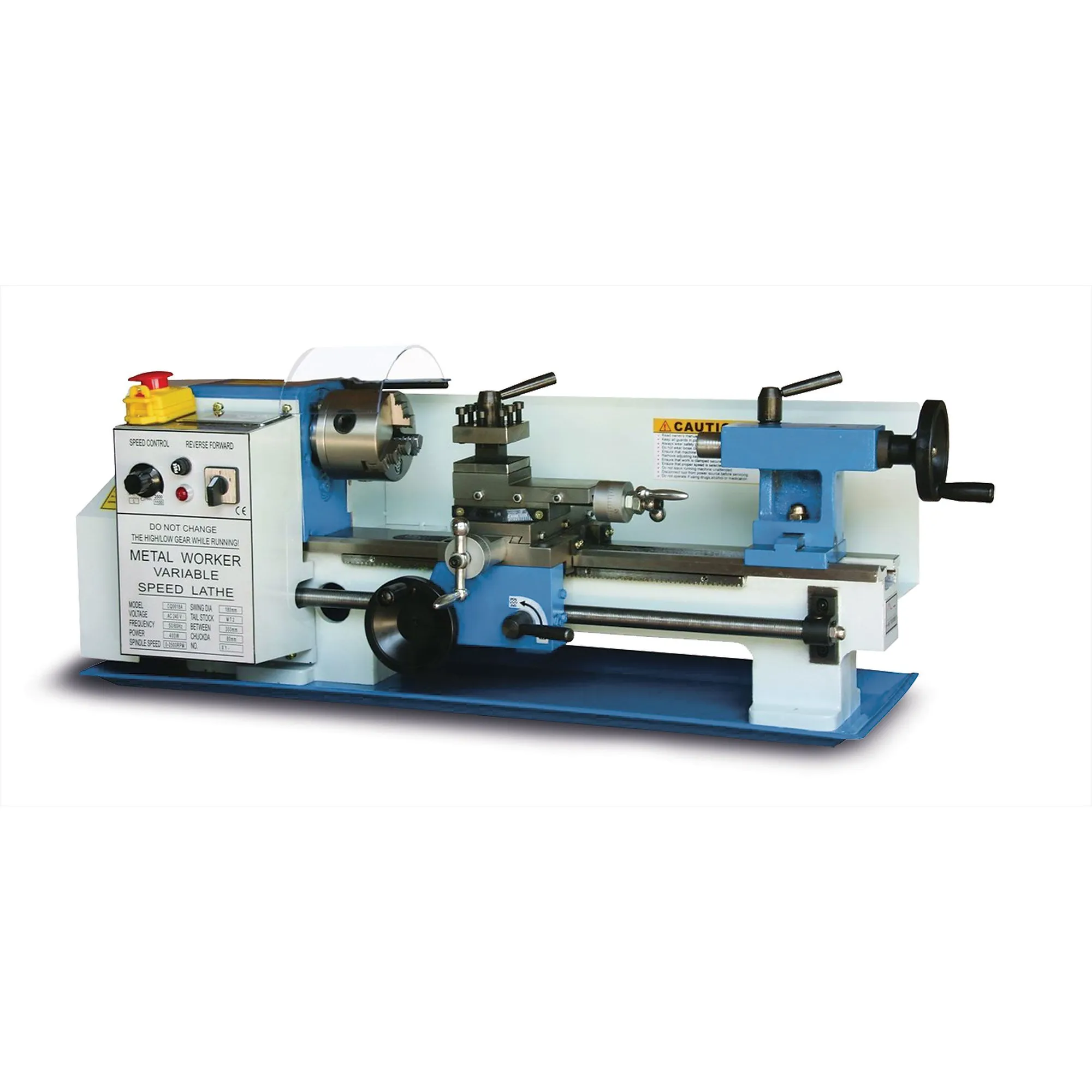

NEW BAILEIGH PL-714VS-V2

Florida, United States
Asking Price
USD $1,759.00
1 available
3,950Listings|13Followers
Overview
Bench Top Lathes

Discover precision and versatility with the new BAILEIGH PL-714VS-V2 Bench Top Lathe. Featuring a 7" swing, variable speed of 100-2500 rpm, and a powerful .75 HP motor, it delivers efficient performance in compact spaces. Ideal for diverse threading needs.

Specs
Lathe Type
Variable Speed
Variable Speed
Swing Over Bed
7"
177.8 mm
Distance Between Centers
13.8"
350.52 mm
Chuck Diameter
4"
101.6 mm
Spindle Bore
0.75"
19.05 mm
Tool Slide Travel
1.378"
35.001 mm
Spindle Accuracy
0.001"
0.0254 mm
Taper Of Tailstock Quill
MT 2
MT 2
Cross Slide Travel
2.559"
64.999 mm
Spindle Taper
MT 3
MT 3
Range of Spindle Speeds
100-2500 rpm
100-2500 rpm
Range of Metric Threads
0.5 - 2.5 mm
0.5 - 2.5 mm
Range of Inch Threads
12 - 52 T.P.I.
12 - 52 T.P.I.
Motor
.75 HP
.75 HP
Voltage
110v
110v
Hz
30
30
Shipping Dimensions
48 x 31 x 20 in.
48 x 31 x 20 in.
Shipping Weight
170 lb
77.1 kg

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Part

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
