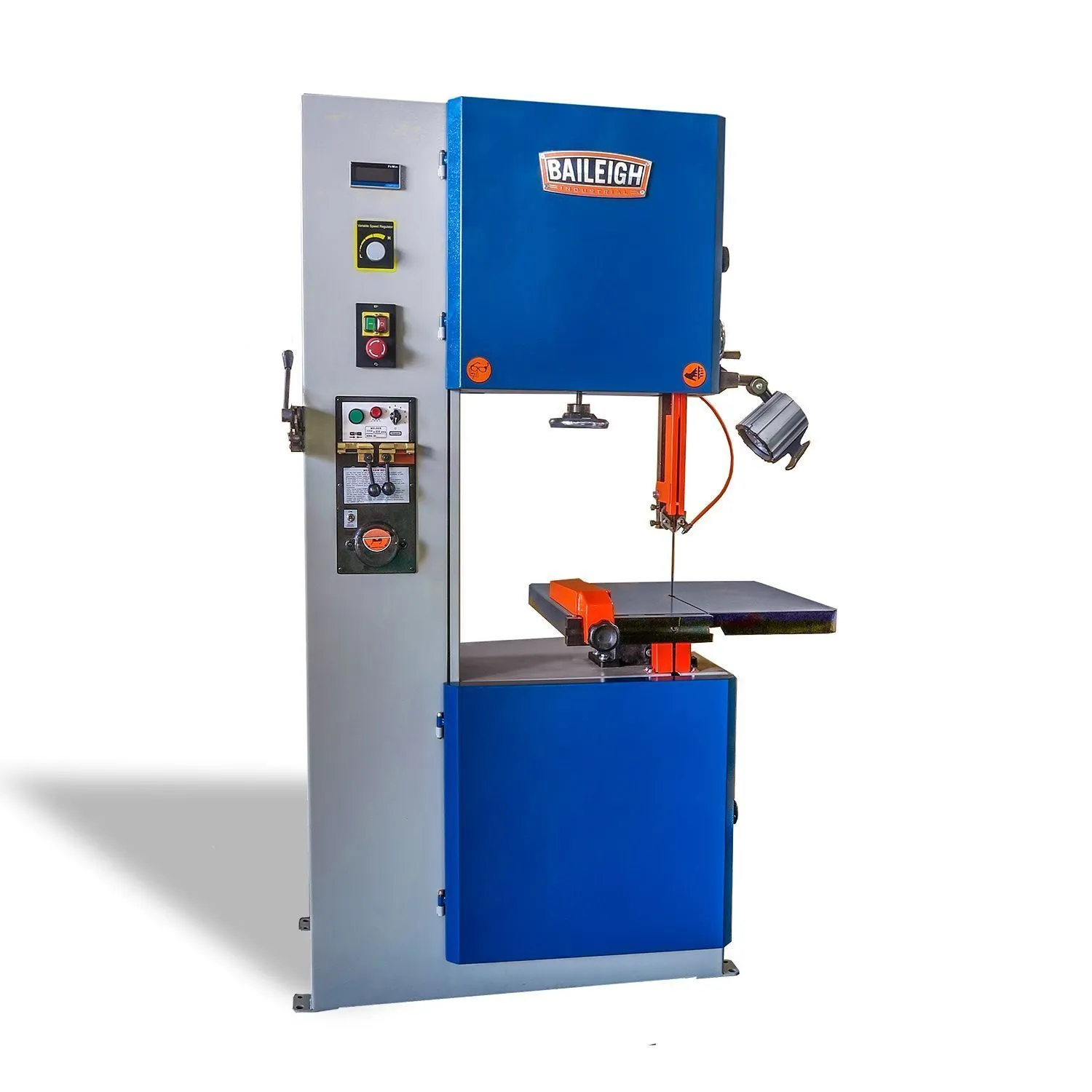

The Baileigh Industrial BSV-18VS-220-V2 metal cutting band saw increases capacity and adds variable-speed. Make straight and curved cuts with the vertical blade.1 hp motor runs on 220-volt single phase power.Wide 18" throat depth.12.9” maximum cutting thickness.
| Throat Depth | 18" | 457.2 mm |
| Blade Length | Range 146.45 - 147 in. | Range 146.45 - 147 in. |
| Blade Width | 1/8 - 5/8 in. | 1/8 - 5/8 in. |
| Blade Thickness | 0.032 in. | 0.032 in. |
| Saw Blade Speeds | 90 - 1400 fpm | 90 - 1400 fpm |
| Table Tilt | 15° Left, 45° Right | 15° Left, 45° Right |
| Motor | 1 HP | 1 HP |
| Speed Control | Inverter | Inverter |
| Power | 220v, 1-Phase | 220v, 1-Phase |
| Shipping Dimensions | 60 x 45 x 93 in. | 60 x 45 x 93 in. |
| Weight | 807 lbs. | 807 lbs. |
*Prop 65 Cancer and Reproductive Harm
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
