The Edwards 120 Ton ED9-IW120 Ironworker offers the most in capacity and versatility. Standard features include a Punch Assembly, 24" wide Flat Bar Shear, high capacity Angle Shear, Coper Notcher and a universal open tooling station for optional Tooling Accessories allowing you to select the perfect tool for your needs.The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
| Punch Tonnage | 120 T | 108,862.3 kg |
| Punch - Work Height | 36.625" | 930.27 mm |
| Punch - Throat Depth | 11" | 279.4 mm |
| Punch - Open Height | 9-1/8 in. | 9-1/8 in. |
| Punch - Shut Height | 7 in. | 7 in. |
| Punch - Stroke | 2.5 in. | 2.5 in. |
| Flat Bar Shear - Max. Capacity | 1/2 x 24 in., 1 x 12 in. | 1/2 x 24 in., 1 x 12 in. |
| Flat Bar Shear - Max. Round Capacity | 1-1/4 in. | 1-1/4 in. |
| Flat Bar Shear - Max. Square Capacity | 1-1/4 in. | 1-1/4 in. |
| Flat Bar Shear - Work Height | 33-1/4 in. | 33-1/4 in. |
| Open Cavity - Height | 9" | 228.6 mm |
| Open Cavity - Width | 11.75" | 298.45 mm |
| Open Cavity - Work Height | 51.75" | 1,314.4 mm |
| Coper Notcher - Max. Capacity | 3 x 6 x 1/2 in. (Max. Size) | 3 x 6 x 1/2 in. (Max. Size) |
| Coper Notcher - Work Height | 40 in. | 40 in. |
| Motor | 10 HP | 10 HP |
| Electrics | 230v, 3-Phase | 230v, 3-Phase |
| Hydraulic Pump Size (GPM) | 24 | 24 |
| Oil Capacity/Reservoir | 17 gal | 64.4 L |
| Cylinder | 2-3/4 in. ram | 2-3/4 in. ram |
| Valve Pressure | 3800 psi | |
| Rated on | 65,000 PSI Tensile | 65,000 PSI Tensile |
| Dimensions | H 79-3/8 x W 60 x D 60 in. | H 79-3/8 x W 60 x D 60 in. |
| Weight | 5,500 lbs. | 5,500 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

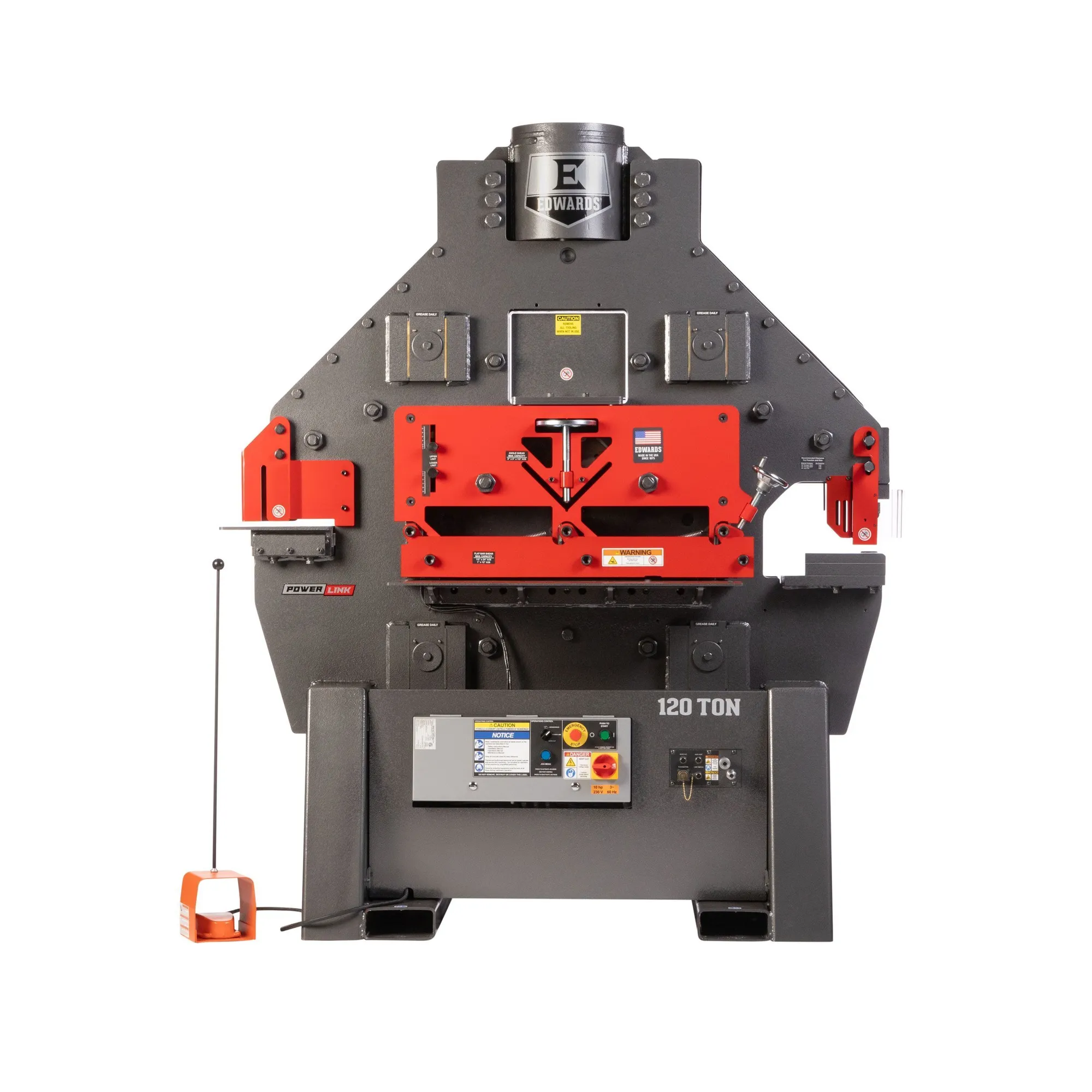

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Models:
ED9-IW120-3P230-A: 120 Ton Ironworker 3 Phase, 230 Volt with PowerLink
ED9-IW120-3P208-A: 120 Ton Ironworker 3 Phase, 208 Volt with PowerLink
ED9-IW120-3P460-A: 120 Ton Ironworker 3 Phase, 460 Volt with PowerLink
ED9-IW120-3P575-A: 120 Ton Ironworker 3 Phase, 575 Volt with PowerLink
Optional Items - Call for price:
Optional Attachments:
ED9-PRB12: Press Brake Tooling 12" Press Brake
ED9-HAT1000: 10 Ton Tube/Pipe Bender
ED9-HAT5000: Radius Roller
