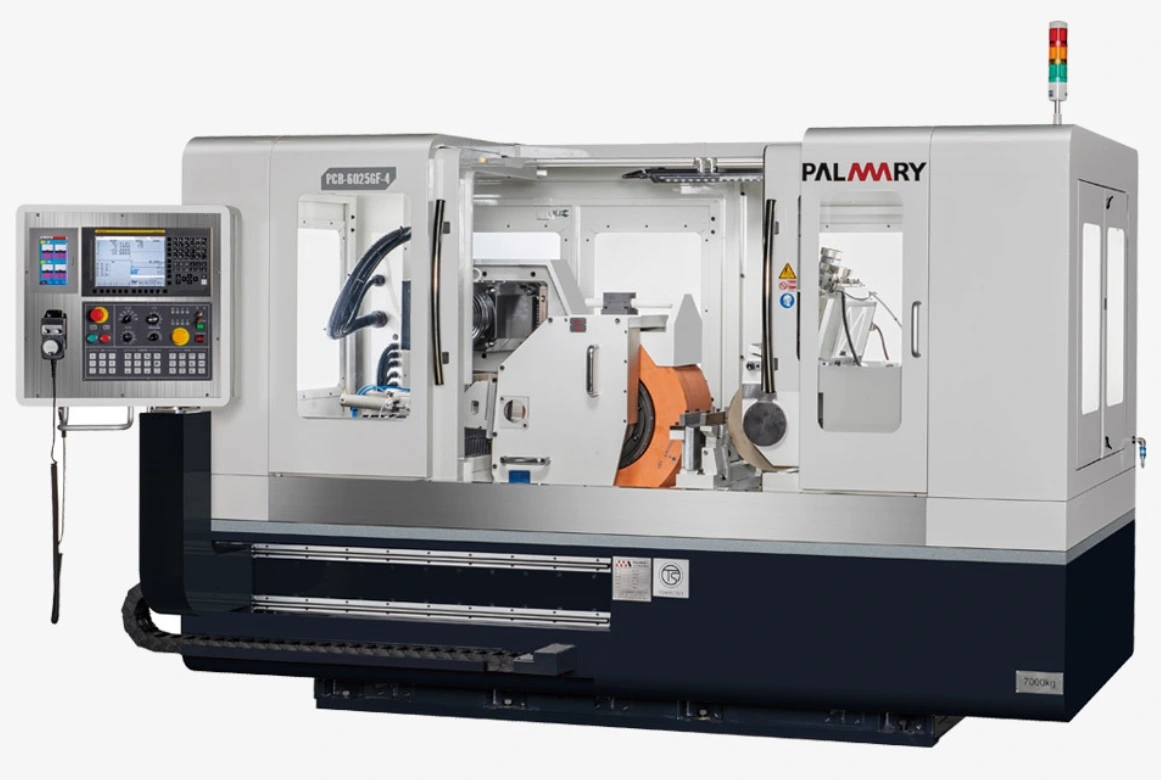

The two slides design centerless grinder is suitable for long bar outer diameter grinding application. The advantages include the work rest fixed in the machine which enable better grinding accuracies for its stability. The grinding wheel spindle single bearing holding type equipped.
| Capacity | 80 mm | 3.1496" |
| Grinding Wheel Dia. | 610 mm | 24.016" |
| GW Power | 30 hp | 22.4 kW |
| GW RPM | 2,700 RPM | 2,700 RPM |
| Regulating Wheel Dia | 330 mm | 12.992" |
| RW Power | 3 kW | 4 hp |
| RW RPM | 300 RPM | 300 RPM |
| Control | CNC | CNC |
