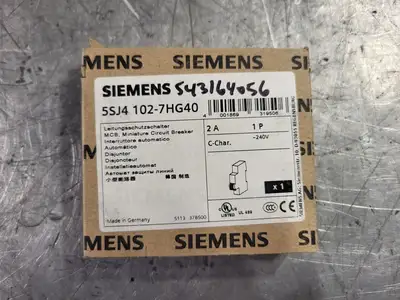

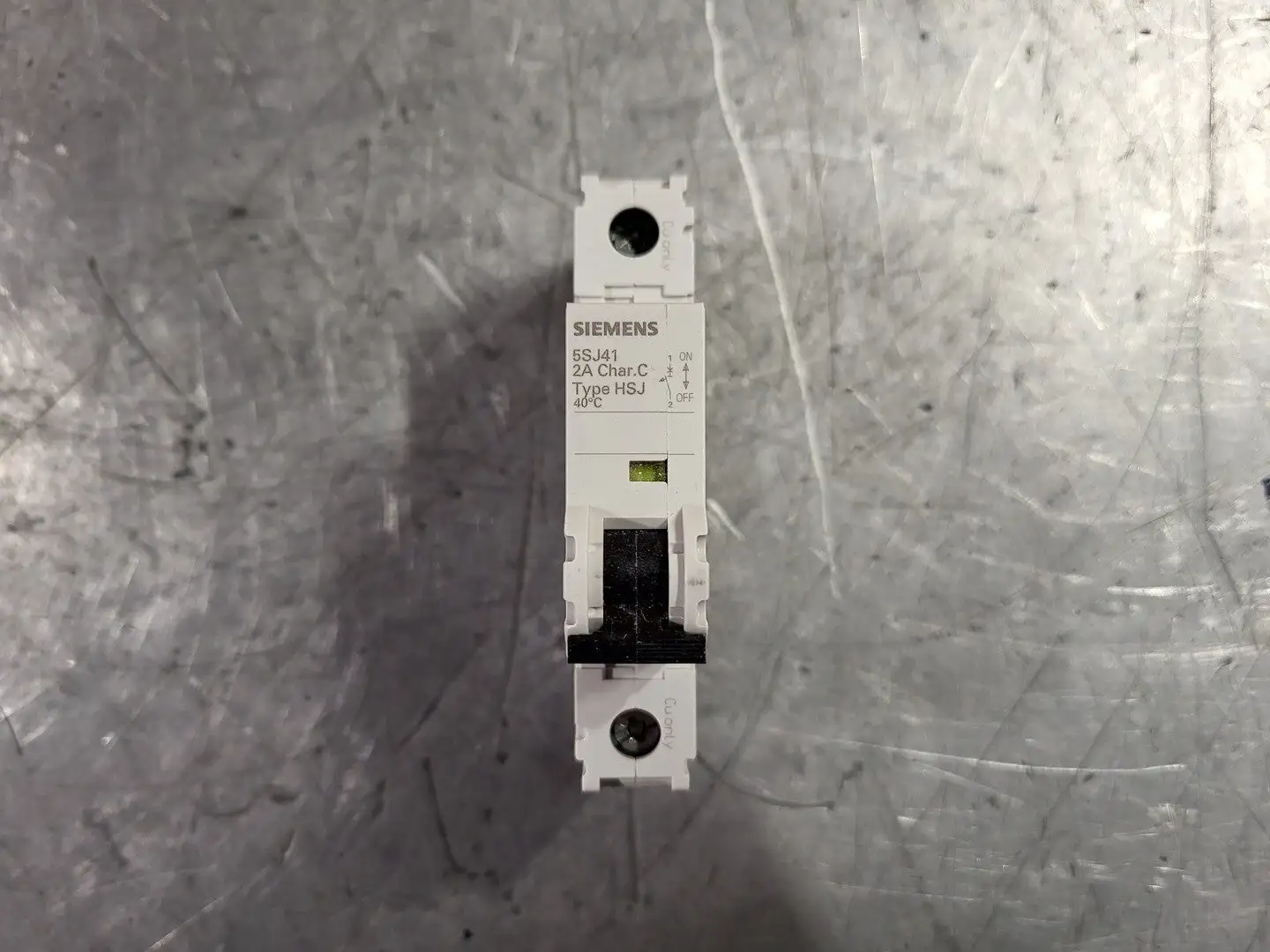

NEW SIEMENS 5SJ4102-7HG40

Amps: 2 amps
Series: Sentron
# of Poles: 1
Mounting Style: Plug-In
Voltage: 240 volts
Phase: Single-phase
AFCI: No
GFCI: No
Technical Data
RoHS-compliant: Yes
Nominal current - rounded value: 2 A
Nominal current: 2 A
Factory colour: Grey
Dim: (W x H x D) 18 x 90 x 70 mm
Depth: 70 mm
Height: 90 mm
Width: 18 mm
Compatible with (details): SENTRON
Switch-off capacity: 14 kA
Number of pins: 1
Release characteristics: C
Operating voltage: 240 V
Built-in depth: 70 mm
Rated current: 2 A
Rated voltage: 400 V
Frequency: 50-60 MHz
Over voltage category: 3
Pollution degree: 3
Width in number of modular spacings: 1
Number of protected poles: 1
Number of poles (total): 1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 15 kA
