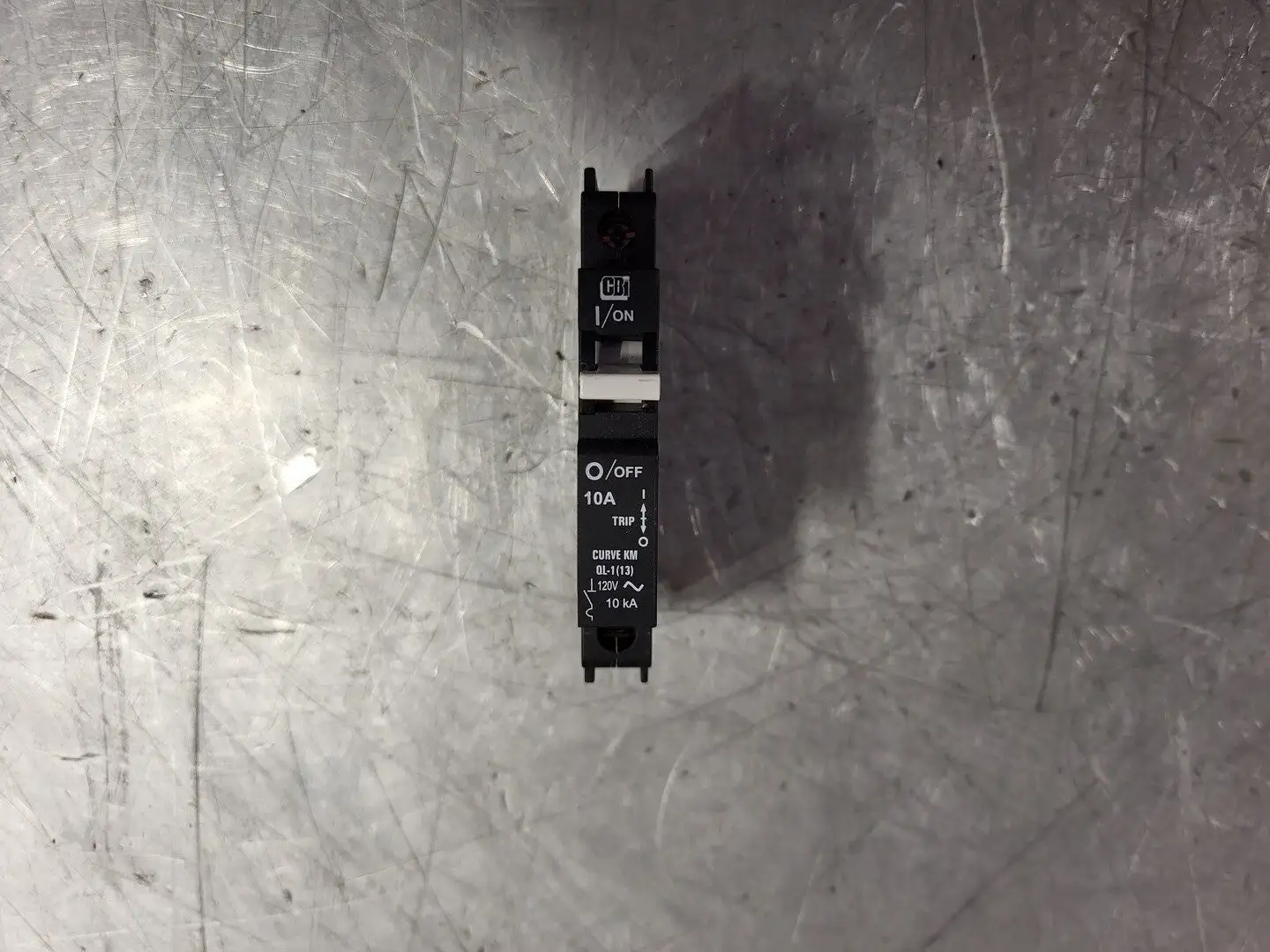

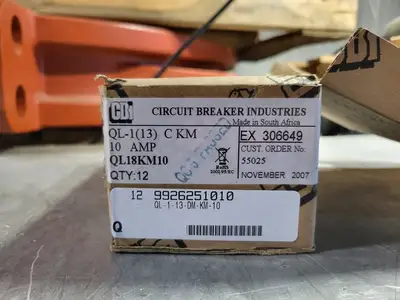

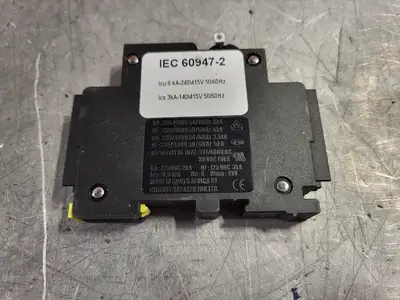

NEW 2007 CIRCUIT BREAKER INDUSTRIES QL18KM10

Amps: 10 amps
Series: QL
# of Poles: 1
Mounting Style: Plug-In
Voltage: 230 volts
Phase: Single-phase
AFCI: No
GFCI: No
Operating Temperature Range: -40 deg C to +85 deg C
Time Delay Curves: 1, 3, 9, KM, OP
Endurance: 10000 operations - 1500 electrical at rated current and voltage (EIC 60947-2) 6000 electrical operations (UL 489)
Dielectric Strength: 1480V
Humidity: 35 to 85% relative
Altitude: Certification tests done at altitude 2000 metres. Will operate at higher altitudes.
Shock: 16 G
Vibration: 2 G (sinusoidal wave)
Flammability: I3 - Ignition does not persist at 850 deg C after glow wire is withdrawn with an oxygen index of >=28
Toxicity: F1 - Smoke index of <= 20 which determines the fume class
Pollution Degree: PD2 - Normally only non-conductive pollution occurs. Temporary conductivity caused by condensation is to be expected
