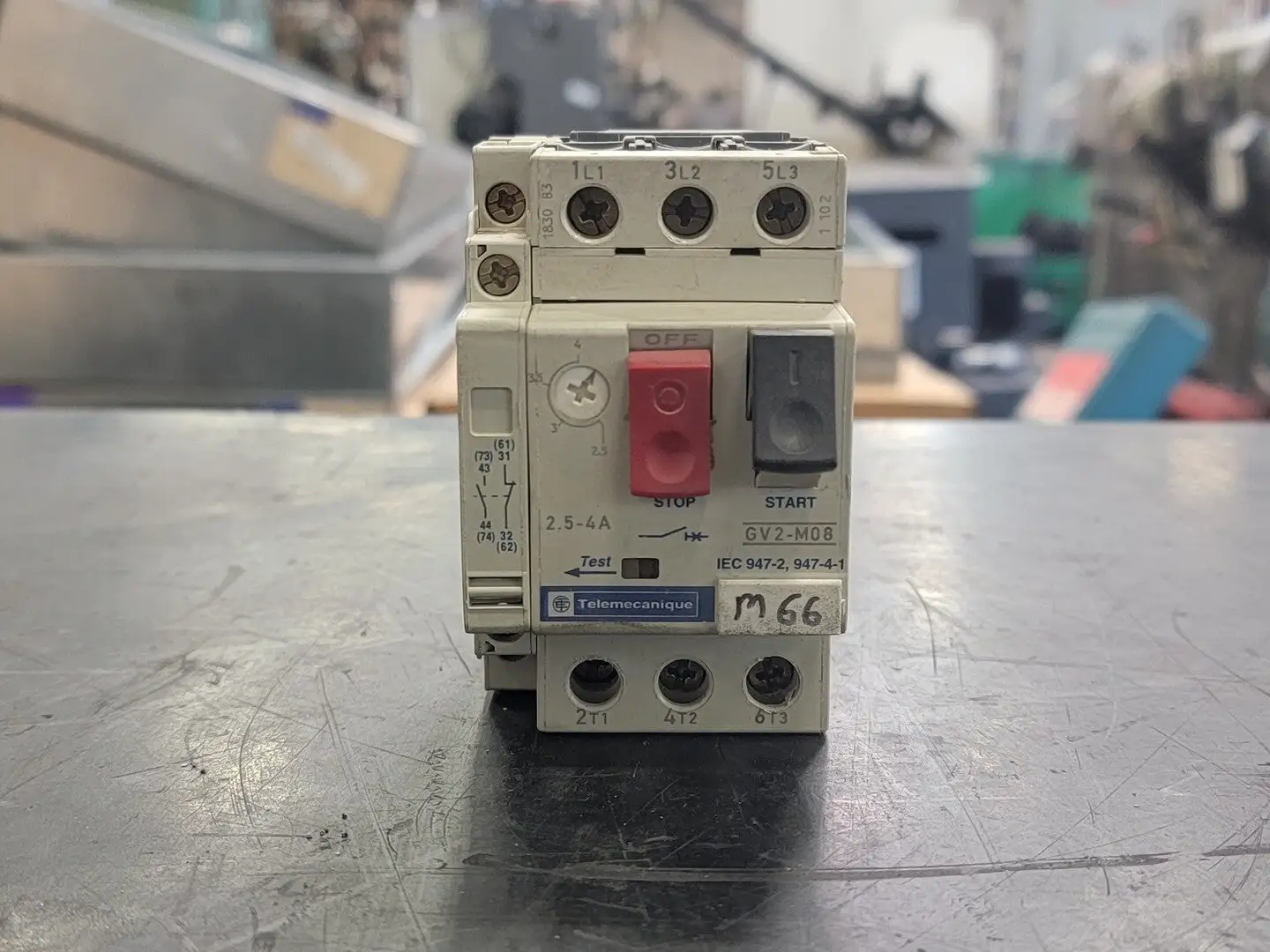

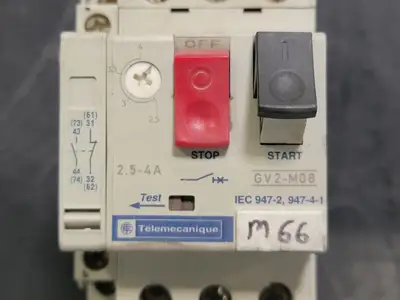

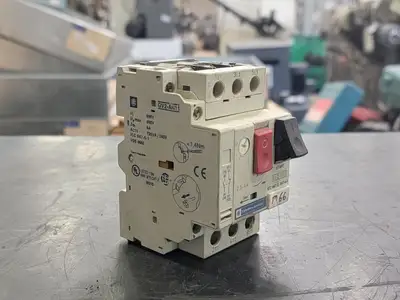

USED TELEMECANIQUE GV2-M08

Amps: 2.5 - 4 amps
Voltage: 690 volts
Phase: Multi-phase
HP Rating: 3 hp
Current Adjustment Range: 2.5 - 4 A
Impulse Withstand Voltage: 6 kV
Breaking Capacity:
3 kA @ 690 V
100 kA @ 500 V // 400/415 V // 230/240 V
Single-Phase Horsepower Ratings:
1/8 hp @ 115 V
1/4 hp @ 200 V
1/3 hp @ 230 V
3-Phase Horsepower Ratings:
1/2 hp @ 115 V
3/4 hp @ 200 V
1 hp @ 230 V
2 hp @ 460 V
3 hp @ 575 V
Mounting: 35 mm Rail

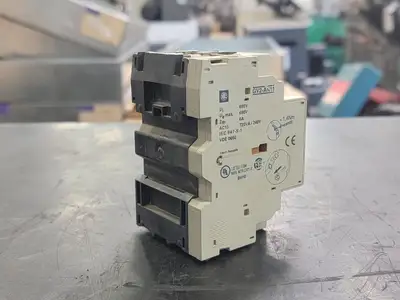

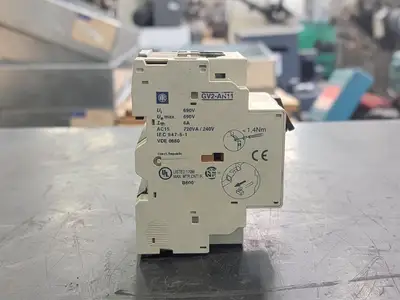

Auxiliary Contact
Model: GV2-AN11
Rated Insulation Voltage: 690 V
Current: 6 A
SC-SK
