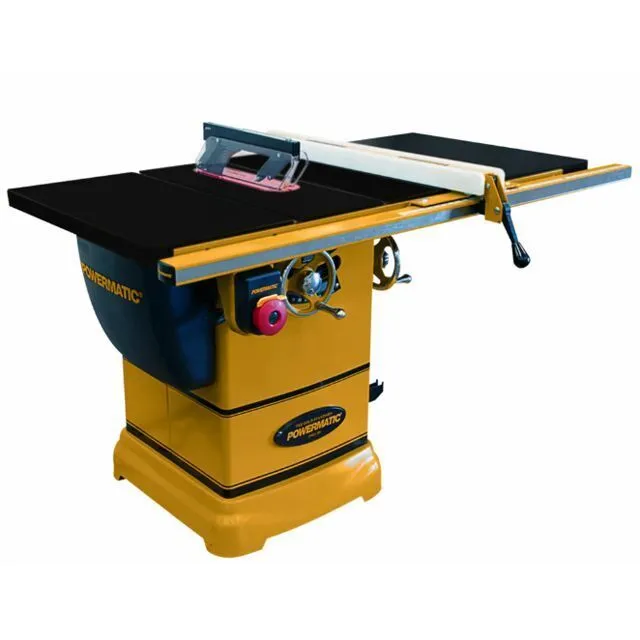

POWERMATIC PM1000 10 inch Tablesaw with 1-3/4HP 1PH and 30 in. Accu-Fence System with Riving Knife. Stock# PM9-1791000K. Exclusive Accu-Fence provides rigidity and precision Requires only 115V connection for easy installation.
| Blade Diameter | 10" | 254 mm |
| Arbor Diameter | 0.625" | 15.875 mm |
| Maximum Depth of Cut | 3.125" | 79.375 mm |
| Maximum Depth of Cut at 45 Degrees | 2.125" | 53.975 mm |
| Maximum Rip Right of Blade | 30" | 762 mm |
| Maximum Rip Left of Blade | 12" | 304.8 mm |
| Table in Front of Saw Blade at Maximum Depth of Cut | 10" | 254 mm |
| Maximum Width of Dado | 0.8125" | 20.638 mm |
| Maximum Diameter of Dado | 8" | 203.2 mm |
| Table Height from Floor | 34.25" | 869.95 mm |
| Table Type | Cast Iron | Cast Iron |
| Dust Collection Minimum CFM Required | 350 | 350 |
| Dust Port Diameter OD | 4" | 101.6 mm |
| Motor Power | 1-3/4 HP 1phase 115/230V | 1-3/4 HP 1phase 115/230V |
| Motor Amps | 20 | 20 |
| Miter Gauge Type | T-Slot with Stops | T-Slot with Stops |
| Dimensions | 43 x 61 x 44 | 43 x 61 x 44 |
| Weight | 289 | 289 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR – For Commercial Use
WARRANTY: 2 YEAR – For Industrial Purposes
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
