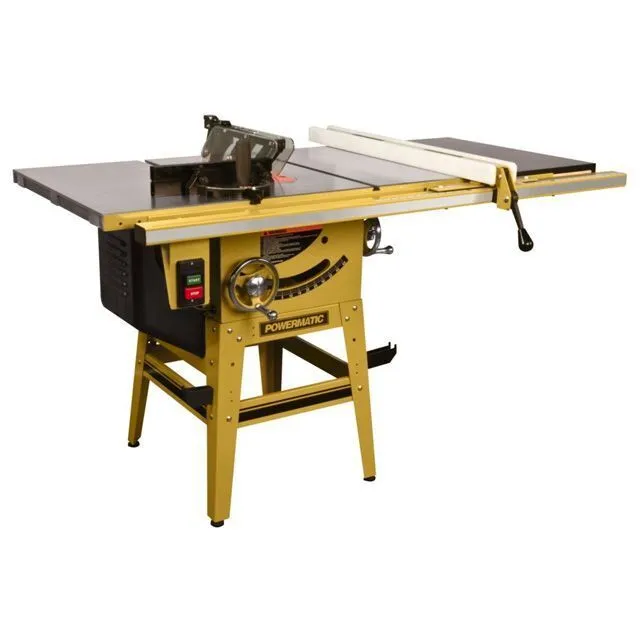

The 64B table saw, with left tilt arbor, offers 1-3/4 horsepower in dual voltage to meet the demands of the professional contractor. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback.
| Blade Diameter | 10" | 254 mm |
| Arbor Diameter | 0.625" | 15.875 mm |
| Arbor Speed | 4000 rpm | 4,000 RPM |
| Maximum Depth of Cut | 3.125" | 79.375 mm |
| Maximum Depth of Cut at 45 Degrees | 3.125" | 79.375 mm |
| Maximum Rip Right of Blade | 30" | 762 mm |
| Maximum Rip Left of Blade | 12" | 304.8 mm |
| Table in Front of Saw Blade at Maximum Depth of Cut | 11.5" | 292.1 mm |
| Maximum Width of Dado | 0.8125" | 20.638 mm |
| Maximum Diameter of Dado | 8" | 203.2 mm |
| Table Height from Floor | 36" | 914.4 mm |
| Table Type | Cast Iron | Cast Iron |
| Table Size (inches) | 44.25 x 27 | 44.25 x 27 |
| Table Size with Standard Extension (L x W inches) | 71.25 x 27 | 71.25 x 27 |
| Dust Collection Minimum CFM Required | 350 | 350 |
| Motor Power | 1-3/4 HP 1phase 115/230V | 1-3/4 HP 1phase 115/230V |
| Motor Amps | 15 / 7-1/2 | 15 / 7-1/2 |
| Prewired Voltage | 115 v | 115 V |
| Weight | 0 | 0 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR – For Commercial Use
WARRANTY: 2 YEAR – For Industrial Purposes
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
