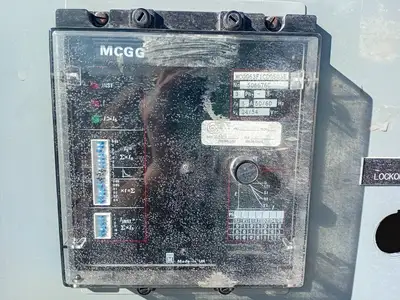

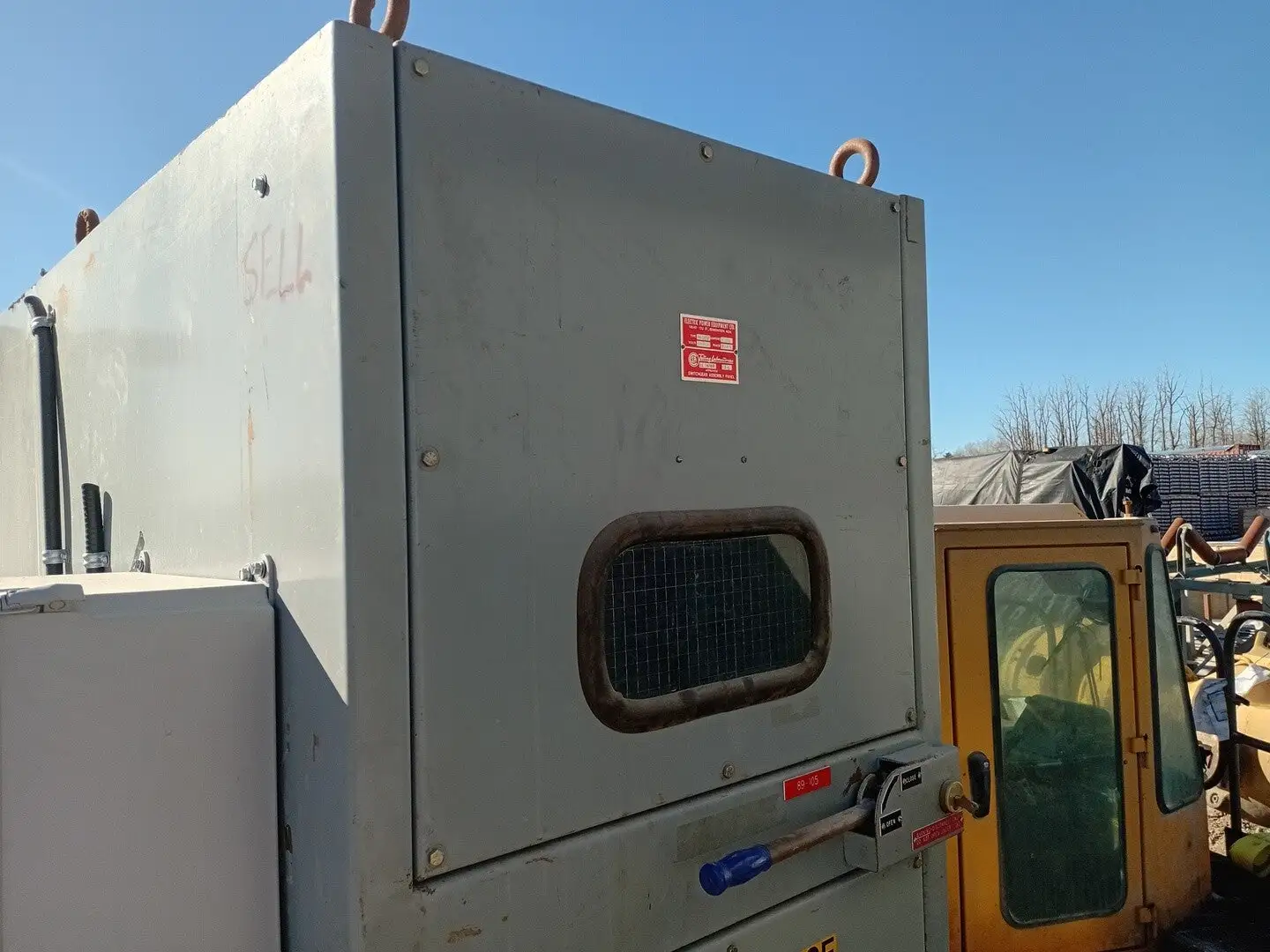

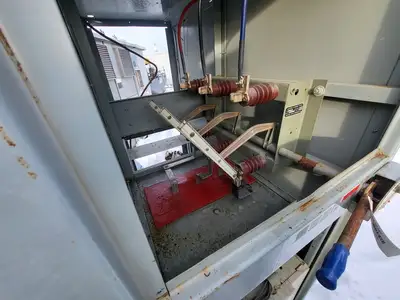

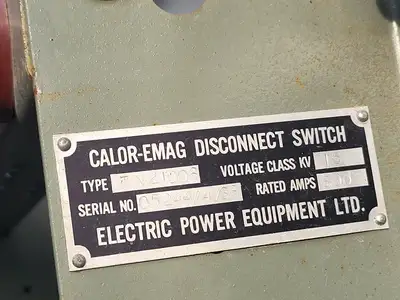

600 Amp 4160 Volts disconnect with capacitor and overload relay protection

Amps: 600 amps
Voltage: 4160 volts
Phase: 3-phase

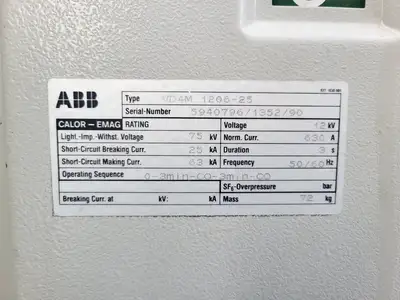

Medium Voltage Circuit Breaker
Make: ABB
Type: VD4M 1206-25
Serial: 5940796/1325/90
Light Imp Withst Voltage: 75kV
Short Circuit Breaking Current: 25kA
Short Circuit Making Current: 63kA
Operating Sequence: 0-3min-CO-3min-CO
Voltage: 12 kV
Nominal Current: 630A
Duration: 3S
Frequency: 50/60 Hz
