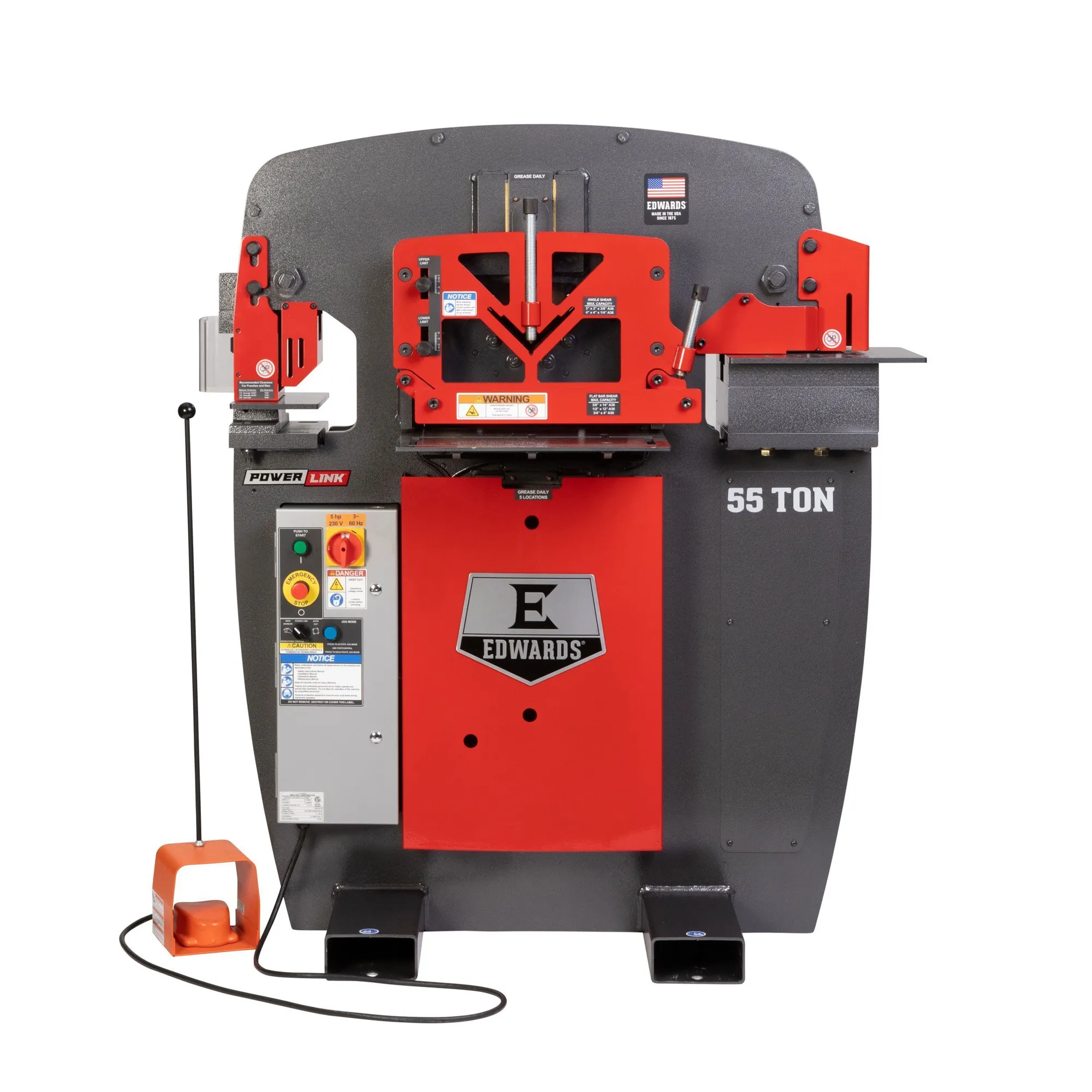

The Edwards 55 Ton Ironworker for sale standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional Tooling Accessories.The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.It has four available workstations, Universal Open Tooling Station and Electric Stroke Control.
| Punch Tonnage | 55 T | 49,895.2 kg |
| Punch - Work Height | 36.563" | 928.69 mm |
| Punch - Throat Depth | 7.5" | 190.5 mm |
| Punch - Open Height | 8-1/8 in. | 8-1/8 in. |
| Punch - Shut Height | 6-7/8 in. | 6-7/8 in. |
| Punch - Stroke | 1-1/4 in. | 1-1/4 in. |
| Flat Bar Shear - Max. Capacity | 3/8 x 14, 1/2 x 12, 3/4 x 4 in. | 3/8 x 14, 1/2 x 12, 3/4 x 4 in. |
| Flat Bar Shear - Max. Round Capacity | 7/8 in. | 7/8 in. |
| Flat Bar Shear - Max. Square Capacity | 7/8 in. | 7/8 in. |
| Flat Bar Shear - Work Height | 34-1/2 in. | 34-1/2 in. |
| Open Station - Work Height | 34-1/2 in. | 34-1/2 in. |
| Open Station - Throat Depth | 11-3/16 in. | 11-3/16 in. |
| Open Station - Open Height | 8.125" | 206.37 mm |
| Open Station - Shut Height | 6.875" | 174.62 mm |
| Open Station - Stroke | 1.25" | 31.75 mm |
| Angle Shear - Maximum Capacity | Max. Size: 4 x 4 x 1/4 in. or 3 x 3 x 3/8 in. | Max. Size: 4 x 4 x 1/4 in. or 3 x 3 x 3/8 in. |
| Angle Shear - Work Height | 39-7/8 in. | 39-7/8 in. |
| Coper Notcher - Max. Capacity | 2-1/2 x 4 x 5/16 in. | 2-1/2 x 4 x 5/16 in. |
| Coper Notcher - Work Height | 39-1/2 in. | 39-1/2 in. |
| Motor | 5 HP | 5 HP |
| Electrics | 230v, 3-Phase | 230v, 3-Phase |
| Hydraulic Pump Size (GPM) | 3-1/2 - single stage | 3-1/2 - single stage |
| Oil Capacity/Reservoir | 7 gal | 26.5 L |
| Cylinder | 2-1/2 ram | 2-1/2 ram |
| Valve Pressure | 2500 psi | |
| Rated on | 65,000 PSI Tensile | 65,000 PSI Tensile |
| Shipping Weight | 2,480 lb | 1,124.9 kg |
| Dimensions | H 55-1/4 x W 44-3/8 x D 36-1/8 in. | H 55-1/4 x W 44-3/8 x D 36-1/8 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Models:
ED9-IW55-3P230-A: 55 Ton Ironworker 3 Phase, 230 Volt with PowerLink
ED9-IW55-3P208-A: 55 Ton Ironworker 3 Phase, 208 Volt with PowerLink
ED9-IW55-1P230-A: 55 Ton Ironworker 1 Phase, 230 Volt with PowerLink
ED9-IW55-3P460-A: 55 Ton Ironworker 3 Phase, 460 Volt with PowerLink
ED9-IW55-3P575-A: 55 Ton Ironworker 3 Phase, 575 Volt with PowerLink
ED9-55231512: 55 Ton Ironworker 1 Phase, 230 Volt, PowerLink, Coper Notcher
ED9-55233512: 55 Ton Ironworker 3 Phase, 230 Volt, PowerLink, Coper Notcher
ED9-55203512: 55 Ton Ironworker 3 Phase, 208 Volt, PowerLink, Coper Notcher
ED9-55231522: 55 Ton Ironworker 1 Phase, 230 Volt, PowerLink, 10" Brake
ED9-55203522: 55 Ton Ironworker 3 Phase, 208 Volt, PowerLink, 10" Brake
ED9-55233522: 55 Ton Ironworker 3 Phase, 230 Volt, PowerLink, 10" Brake
Optional Items - Call for price:
Optional Attachments:
ED9-PRB12: Press Brake Tooling 12" Press Brake
ED9-HAT1000: 10 Ton Tube/Pipe Bender
ED9-HAT5000: Radius Roller
General Productivity Pack:
* Increase your Punching Efficiency and Accuracy
* AC2200 General Productivity Pack for 40TC - 100 IW
* AC2250 General Productivity Pack for 100T DLX & 120T IW
* FLEXIBILITY
- Contains Punches and Dies to produce the following size round holes: 3/16". 5/16", 7/16", 1/2", 9/16", 5/8", 11/16", 13/16", 15/16", and 1-1/16"
- The Back Gauge utilizes a positive stop attachment that is fitted to the back of the Ironworker ensuing accurate shearing out to 48"
* PRODUCTIVITY
- Punch and Die Storage Tray easily mounts to either side of the output shoot
- The 48" Back Gauge speeds up production on repeatable cuts by providing an adjustable stop for the flat bar shear and angle shear.
- The Fabricator’s protractor increase accuracy on the punch and flat bar shear workstations by guiding your work piece and is gauged at 15° increments through 180° featuring a straight edge and reversible design
- A Gauging table kit includes adjustable fences and handles quickly and easily guide your material for perfect repeatable actions
* SAFETY
- Punch diameter must meet or exceed the thickness of your material
- Super bright LED light with M12 connections has a powerful magnetic base allowing users to attach the light to any Ironworker surface and move as needed.
* PERFORMANCE
- Made of durable steel for long life
- Long lasting averages between 3,000 and 5,000 impacts
