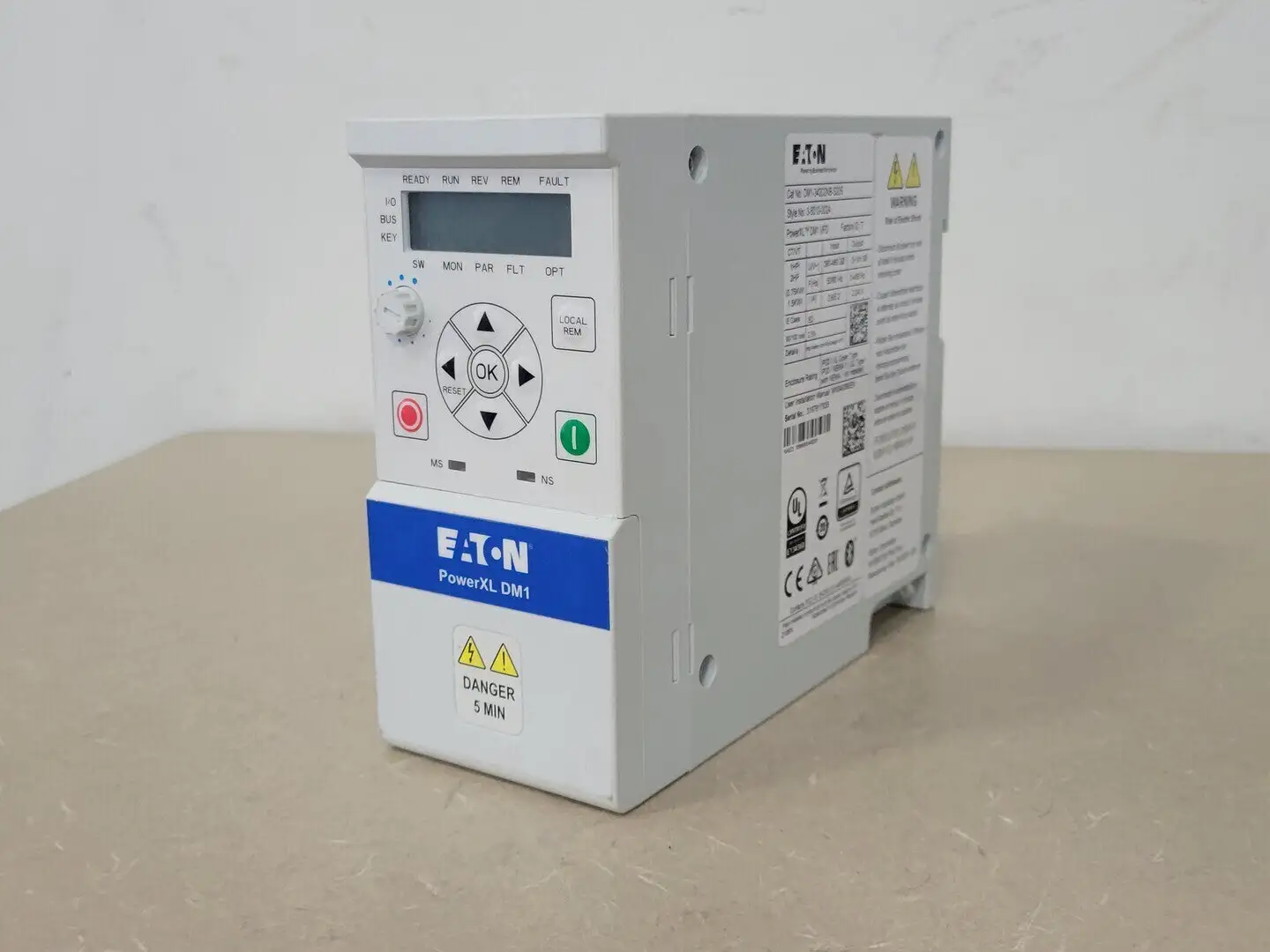

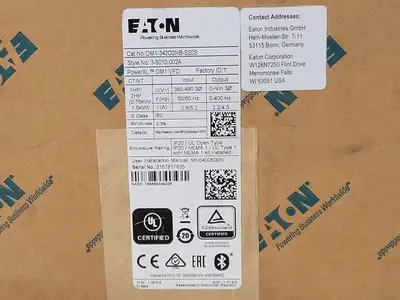

USED 2021 EATON DMI-342D2NB-S20S

Horsepower: 2 hp
Voltage: 480 volts
Phase: 3-phase
Amps: 4.3 amps
High overload (CT) hp: 1
Low overload (VT) hp: 2
High overload (CT) kW: 0.75
Low overload (VT) kW: 1.5
Low overload (VT) amps: 4.3
High overload (CT) amps: 2.2
IE Class: IE2
Enclosure rating: IP20
Input phases: 3
Output phases: 3
Input voltage range: 380-480 Vac
Input frequency range: 50-60 Hz
Output frequency range: 0-400 Hz
Max overload: 200 %
Fuse size - max: 10
Mounting Type: Panel mount DIN rail
Digital inputs: 4
Analog inputs: 1
Relay outputs: 2
Digital outputs: 0
