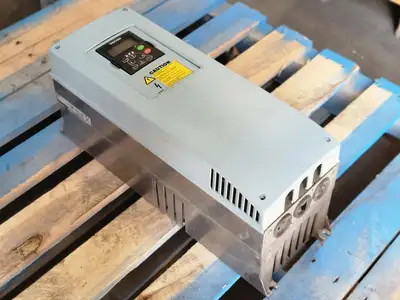

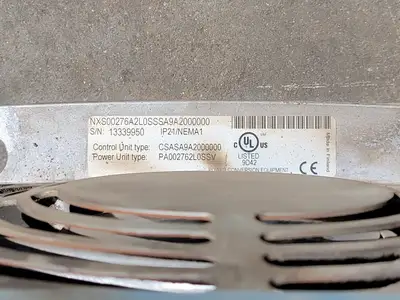

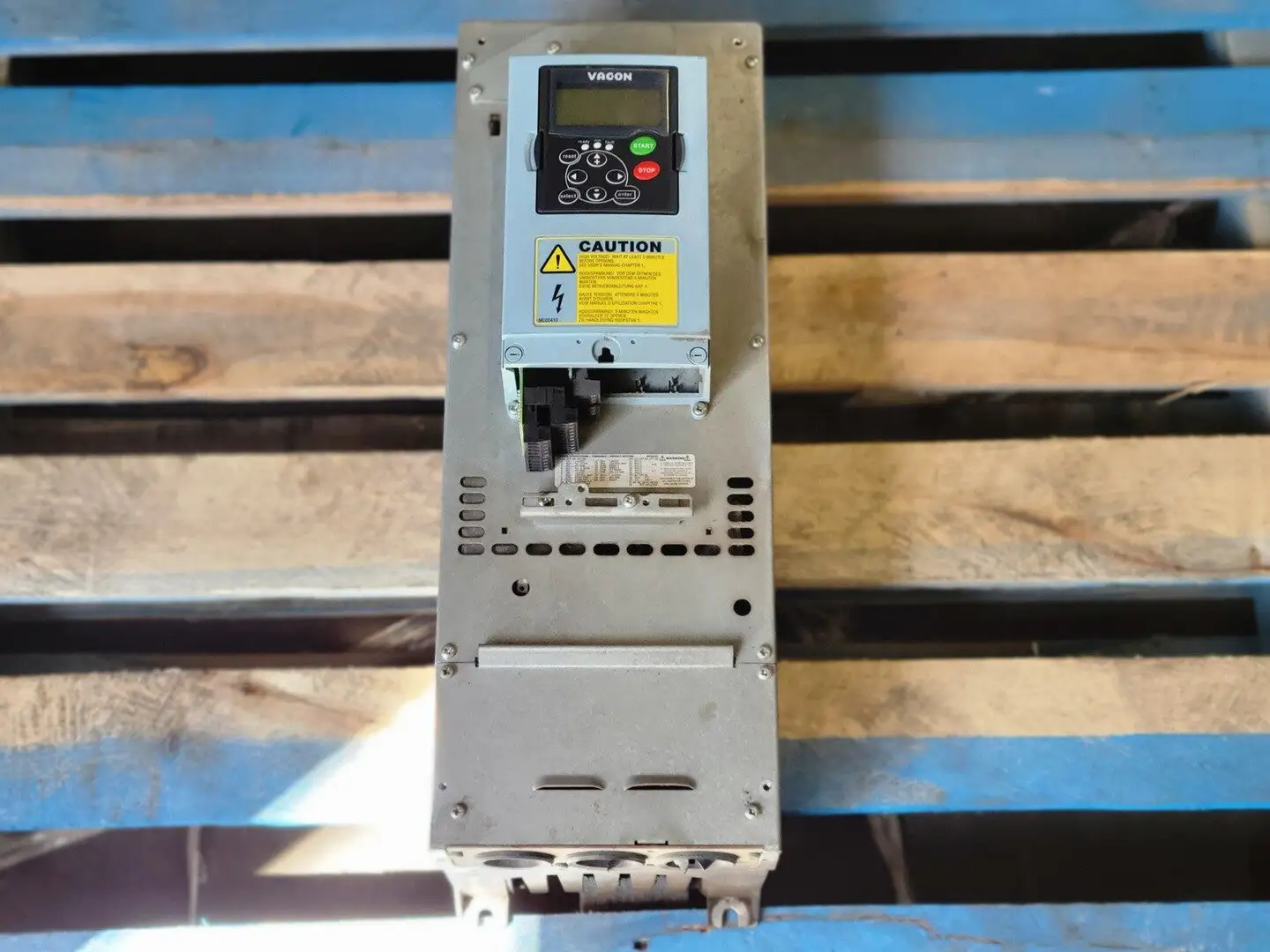

USED VACON PA002762L0SSV

Electrical Specifications
Input Voltage: 3-phase, 525-690V AC
Input Frequency: 50/60 Hz
Input Current: 27 A
Output Voltage: 3-phase, 0 to U1 (variable)
Output Frequency: 0-320 Hz
Output Current: 22/27 A
Control & Features

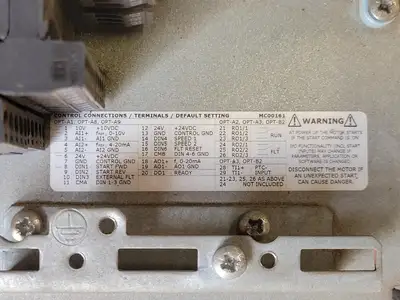

Control Terminals: Analog inputs (0-10V, 4-20mA), Digital inputs (START/STOP, REV, FLT), Analog outputs, Relay outputs (RUN, FLT, etc.)
Integrated Control Panel: Start/Stop buttons, display, navigation keys
Protective Features: Fault indication, external fault input, ready output
Configuration Options: OPT-A1, A2, A3, A8, A9, B2 terminals
