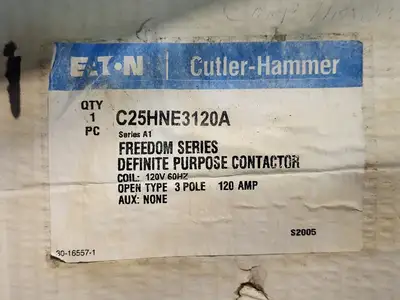

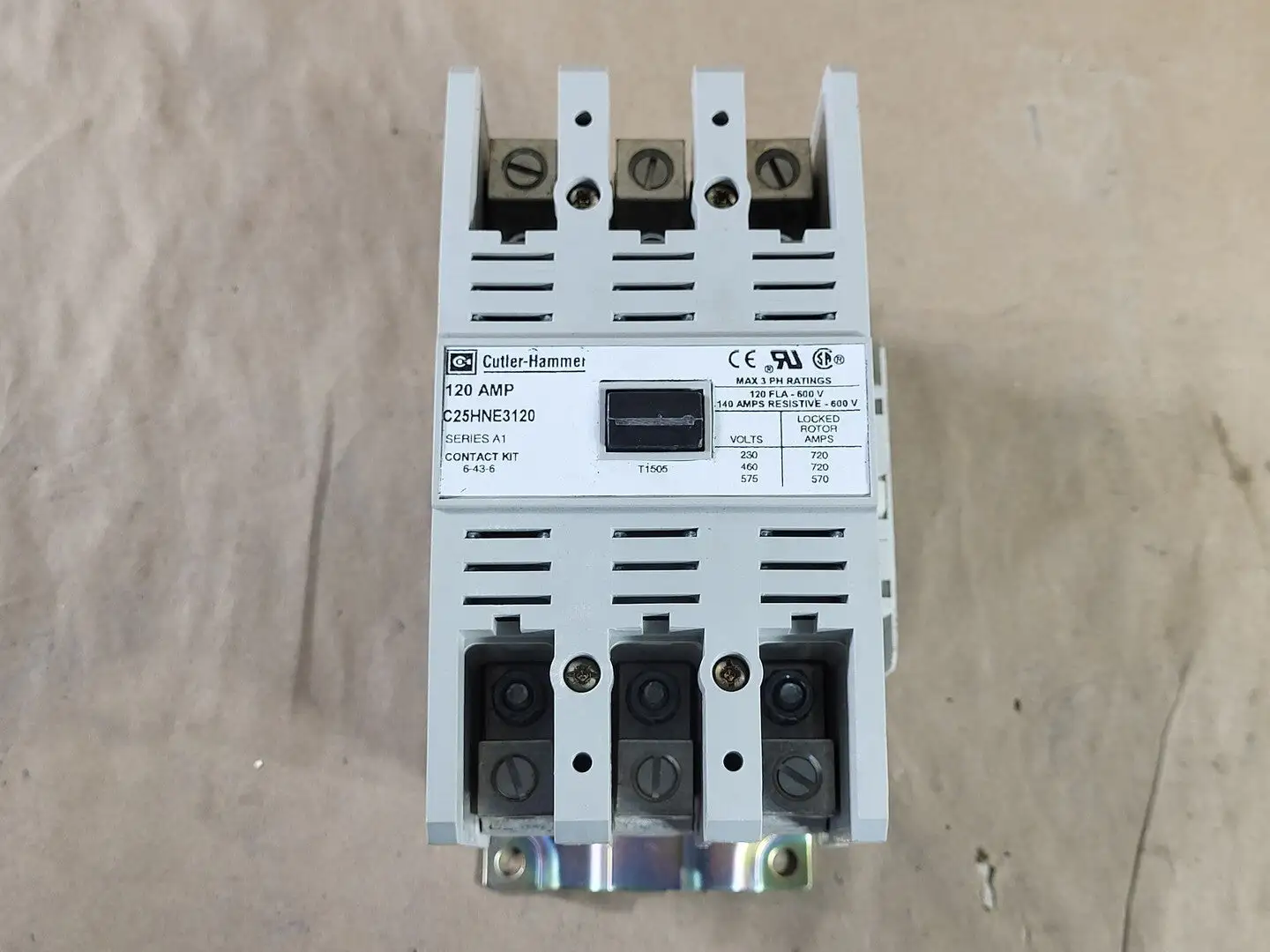

NEW EATON C25HNE3120

Voltage: 600 volts
Amps: 120 amps
Eaton C25HNE3120 Spec sheet PDF
Overview:
Part Number: C25HNE3120A1
Series: C25, Series A1
Type: Definite Purpose Contactor
Number of Poles: 3-pole
Full Load Amperage (FLA): 120 A (inductive)
Resistive Load Rating:140A
Coil Voltage: 110-120VAC, 50/60Hz
Coil Termination: 2 screw terminals
Power Terminals: Box lugs (Posi-Drive Screw)
Contract Configuration: Normally open (NO)
Line Voltage Rating: Up to 600 VAC
Ambient Temperature Range:--40°C to +65°C (-40°F to +149°F)
Certifications: UL Recognized (UL 508), CSA Certified, CE marked, RoHS compliant
