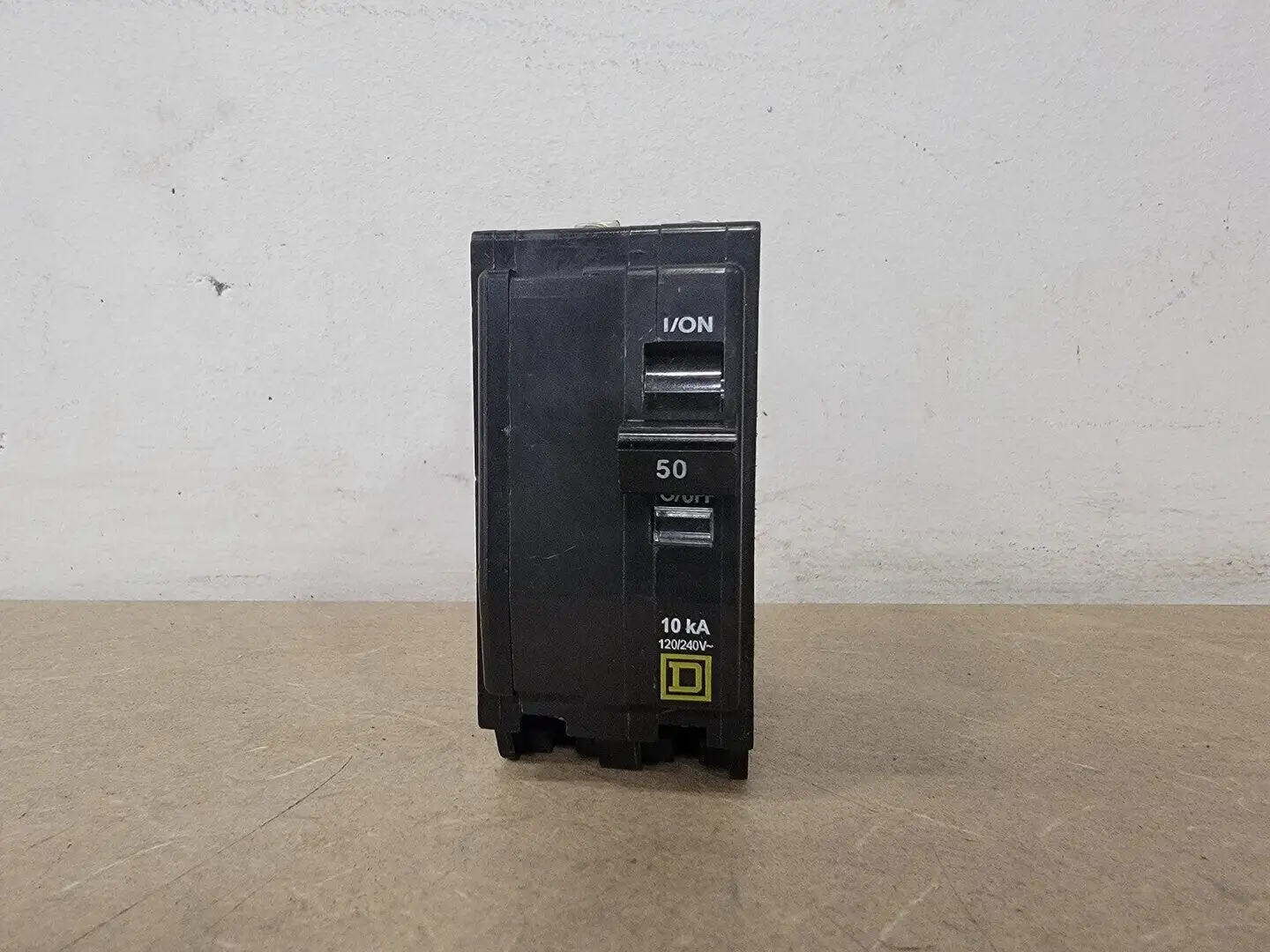

Amps: 50 amps
# of Poles: 2
Voltage: 120/240 volts
Interrupting Rating: 10,000 Amps (10 kA)
Frequency: 50/60 Hz
Breaker Type: Bolt-On

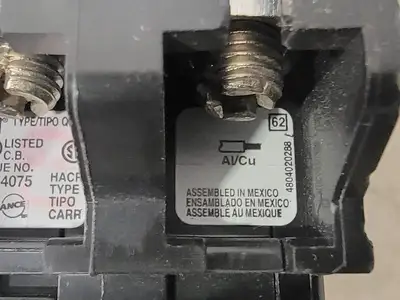

Wire Compatibility:
#3 AWG Aluminum/Copper (8 mm2) 60/75°C
#6 to #2 AWG Aluminum/Copper (13-35 mm2) 75°C only
Torque Rating: 45 lb-in (5 Nm)
Temperature Rating: 40°C
Compatible Wire Types: Aluminum (Al) and Copper (Cu)
